Product Overview

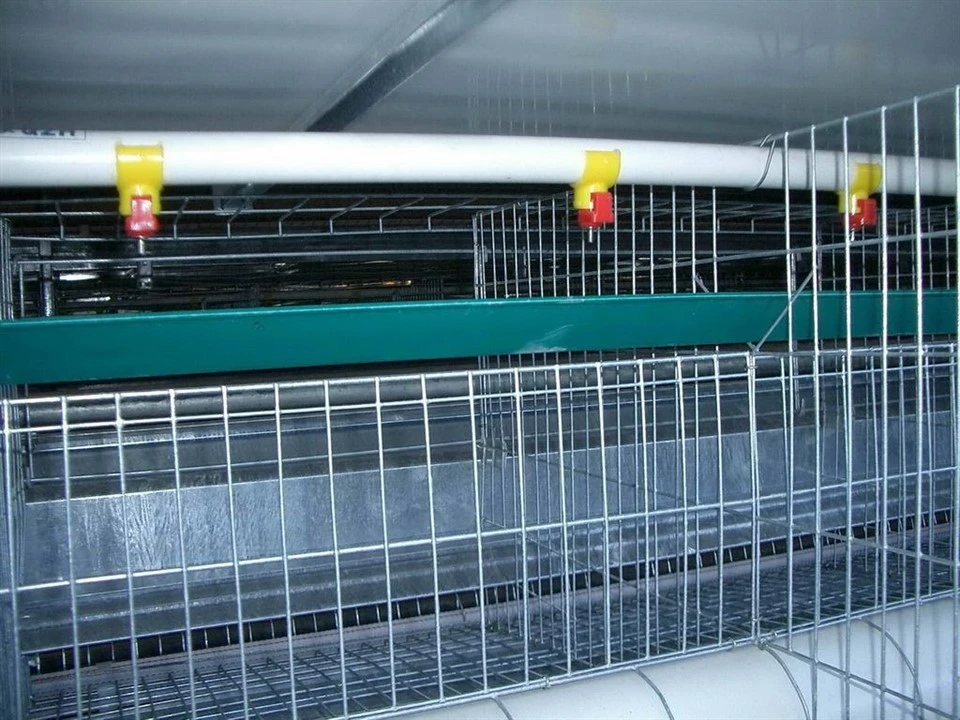

This fully automatic drinking water line is specially designed for breeder chickens and developed for large-scale cage breeding. It is suitable for the whole growth cycle of breeder chickens, broilers and other poultry from brooding to rearing, and effectively solves common industry problems of traditional drinking equipment such as water leakage and uneven water distribution.
The entire unit is made of food-grade anti-corrosion materials and equipped with stainless steel drinking nipples. It ensures clean, pollution-free water quality and stable, uniform water output. It meets the drinking needs of poultry at all ages, fundamentally eliminates hidden leakage risks, and guarantees safe and sanitary drinking water throughout the breeding period.
The equipment features adjustable lifting and precise pressure stabilization. It can be flexibly adapted according to different growth stages of poultry, ensuring balanced and stable water supply in the entire henhouse and promoting consistent growth and even development of the flock.
With a high degree of automation, it can be connected to an intelligent control system to realize fully automatic constant-pressure water supply. It is easy to disassemble and clean, which greatly saves labor input and reduces the incidence of poultry diseases. Designed to adapt to the humid, dusty and harsh working conditions of chicken houses, the equipment is robust, durable and boasts a longer service life.
Basic Parameters
|
Cage-Rearing Drinking Equipment |
Standard |
|
25 Round Drinking Pipe32 Round Drinking Pipe22 Square Drinking Pipe28 Square Drinking Pipe |
The drinking pipe is made of PVC material with a smooth and flat surface. It can be bent to 180° without cracking. After being frozen at -20 °C for 1 hour and kept warm for another 1 hour, it shall undergo a high-altitude drop impact test (hammer: d25 SR12.5, weight 0.5 kg, drop height 0.6 m), and the pipe surface shall remain intact without rupture.1. Appearance: The inner and outer surfaces of the pipe are smooth, free of scratches, depressions, visible black spots, impurities, sand holes and leakage risks. Pipe ends are cut flat and perpendicular to the central axis.2. Color: Milky-white with uniform luster and no visible color difference to the naked eye.3. Dimensions: Side wall thickness ≥ 1.8 mm.4. Straightness: For square pipes laid flat naturally on a plane, straightness ≤ 1 mm per meter along the length.5. Custom length: Custom-sized drinking pipes are available per customer requirements. |
|
Type I Pipe Fitting |
PVC material, no water leakage after bonding. |
|
Type II Pipe Fitting |
PVC material, no water leakage after bonding. |
|
2.9-30 Ball-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 25–45 mL/min |
|
2.9-55 Ball-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 45–75 mL/min |
|
2.9-80 Ball-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 65–95 mL/min |
|
2.9-30 Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 25–45 mL/min |
|
2.9-55 Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 45–75 mL/min |
|
2.9-80 Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 65–95 mL/min |
|
2.9-30 Metal Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 25–45 mL/min |
|
2.9-55 Metal Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 45–75 mL/min |
|
2.9-80 Metal Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 65–95 mL/min |
|
Pressure-Regulating Water Supply Device |
Made of PVC material |
|
Intelligent Flushing System |
Automatic Flushing: The controller sets the number of flushing cycles, duration and start time according to on-site pipelines.Soaking Flushing: Soaking liquid is injected into pipelines. The controller configures parameters including soaking-flushing start time, flushing duration and soaking time. The medicine-containing soak dissolves impurities and biofilm attached to pipe walls.Automatic Dosing: The controller sets the dosing start time and controls the automatic switching of electric ball valves to realize automatic dosing. The liquid-level detection sensor of the dosing bucket automatically stops dosing.Water Shortage Alarm: Signals from the liquid-level sensor at the water-line terminal are transmitted to the controller via the terminal alarm control box. The controller accurately locates the faulty water line and triggers an audible-visual alarm on the alarm page.Rapid Water Replenishment: When terminal water shortage occurs in pipelines, the controller activates rapid water replenishment by adjusting the intelligent pressure regulator based on preset parameters to maintain normal water-line water level.Pulse Flushing: The controller activates pulse flushing with preset pulse duration. Combined with automatic flushing, the pulse pump generates water hammer waves with mixed air and water to remove stubborn biofilm inside pipe walls. (This function is unavailable in the Professional Version) |
Product Characteristics and Advantages
Feature
The equipment features an integrated and compact structural design, allowing easy installation and user-friendly operation, which substantially reduces manpower input and cuts labor expenses. The drinking system is equipped with precise flow control to avoid water splashing and pointless water waste. With a sturdy and robust build, the unit runs steadily and delivers a longer service life.
Equipped with an intelligent automatic control system, it can automatically increase pipeline flushing frequency to greatly reduce nipple blockage. It also avoids economic losses caused by untimely cleaning and further saves labor costs. All wearable spare parts can be replaced individually without replacing the entire equipment set, effectively lowering daily breeding operation expenses.
In addition, it facilitates standardized epidemic prevention and management on farms, strengthens the prevention and control of avian influenza and other poultry diseases, improves overall breeding efficiency and quality, and ultimately brings higher economic benefits to farmers.
Advantages
This fully automatic drinking water line for breeder chickens is tailor-made for large-scale cage breeding. It suits the entire growth cycle of breeder chickens and broilers, and perfectly solves common drawbacks of traditional drinking equipment such as water leakage and unstable water supply.
Waterline Pipe
The waterline pipe is precision-made of high-quality PVC raw material with a fine and smooth surface. The square pipe can be bent by 180 degrees without cracking. After being frozen at -20℃ for 1 hour and then kept at a constant temperature for another hour, the pipe passes the drop hammer impact test with no surface damage at all.(Test parameters: hammer d25, SR12.5, weight 0.5kg, drop height 0.6m)
- Appearance: The inner and outer walls of the pipe are smooth and flat, free of scratches, dents, black spots, impurities and pinholes, eliminating hidden leakage risks from the source. The pipe end is cut flat and perpendicular to the pipe axis.
- Color: Milky white with uniform tone and no visible color difference to the naked eye.
- Wall Thickness: Side wall thickness ≥ 1.8mm.Straightness: When the square pipe is placed naturally on a horizontal surface, the straightness deviation per meter is ≤ 1mm.
- Custom Length: Pipe lengths can be customized according to customers' actual site requirements.

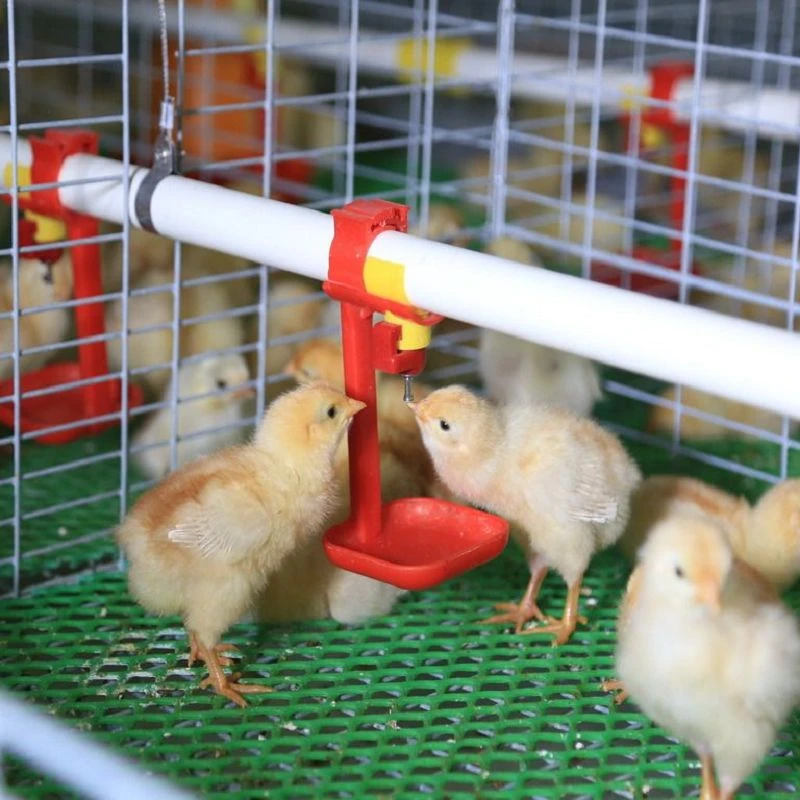

Nipple Drinker
Nipple drinkers are available in multiple flow rate specifications to adapt to different chicken breeds. Equipped with a pressure regulator, the water flow can be flexibly adjusted by increasing or reducing pressure to adapt to breeding environments in different seasons.
Application
Guangxing evaporative cooling pads adapt to various breeding environments worldwide and can be perfectly matched with Guangxing export-style stepped breeder cages as a complete supporting set.
Specially designed for high-temperature breeding areas in tropical and subtropical regions overseas, the cooling pads can quickly lower the temperature inside the henhouse and effectively relieve heat stress in breeder chickens.
Made of corrosion-resistant and weather-resistant materials, the pads meet international large-scale breeding standards and are compatible with different voltage specifications and actual breeding working conditions in various countries.
When combined with breeder cages, negative-pressure fans and intelligent control systems, it forms an integrated ventilation and cooling solution. It helps large overseas breeder chicken farms achieve efficient and stable breeding, while improving chicken meat quality.
FAQ
Q1: What breeding objects and models is this fully automatic drinking water line suitable for?
A1: This fully automatic drinking water line is specially developed for breeder chickens and suitable for large-scale cage breeding. It covers the whole growth cycle of breeder chickens, broilers and other poultry from brooding to rearing, and effectively solves common problems of traditional drinking equipment such as water leakage and uneven water supply.
Q2: What advantages does the equipment have in material and drinking water hygiene?
A2: The whole unit adopts food-grade anti-corrosion materials and is equipped with stainless steel drinking nipples. It ensures clean water quality without secondary pollution and stable water output. It meets the drinking needs of poultry at all ages, eliminates leakage risks fundamentally, and guarantees safe and sanitary drinking water all the time.
Q3: What adjustment functions does the water line have, and how does it benefit flock growth?
A3: The equipment supports flexible lifting adjustment and precise pressure stabilization. It can be adjusted according to different growth stages of poultry to ensure balanced and stable water supply in the whole henhouse, and promote consistent growth and even development of the flock.
Q4: What are the advantages in structural design and later maintenance?
A4: Adopting integrated and compact structure, it is easy to install and simple to operate, effectively cutting labor costs. Precise flow control prevents water splashing and waste. The solid structure ensures stable performance and long service life. Wearing parts can be replaced individually instead of replacing the whole set, greatly reducing breeding operating costs. It also supports standardized farm epidemic prevention, improves the prevention and control of avian influenza and other poultry diseases, and increases overall breeding economic benefits.
Q5: What are the applicable scenarios and functions of supporting Guangxing evaporative cooling pads?
A5: Guangxing evaporative cooling pads adapt to global breeding environments and can be perfectly matched with Guangxing export-style stepped breeder cages as a complete set.Tailored for high-temperature areas in tropical and subtropical overseas regions, the pads quickly cool down the henhouse and effectively relieve heat stress of breeder chickens.Made of corrosion-resistant and weather-resistant materials, it complies with international large-scale breeding standards and adapts to various voltage specifications and breeding conditions in different countries. Combined with breeder cages, negative-pressure fans and intelligent control systems, it forms an integrated ventilation and cooling solution, helping large overseas breeder farms achieve efficient and stable breeding and improve poultry meat quality.
