Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of pullet cage heating system in China. If you're going to buy durable pullet cage heating system made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.

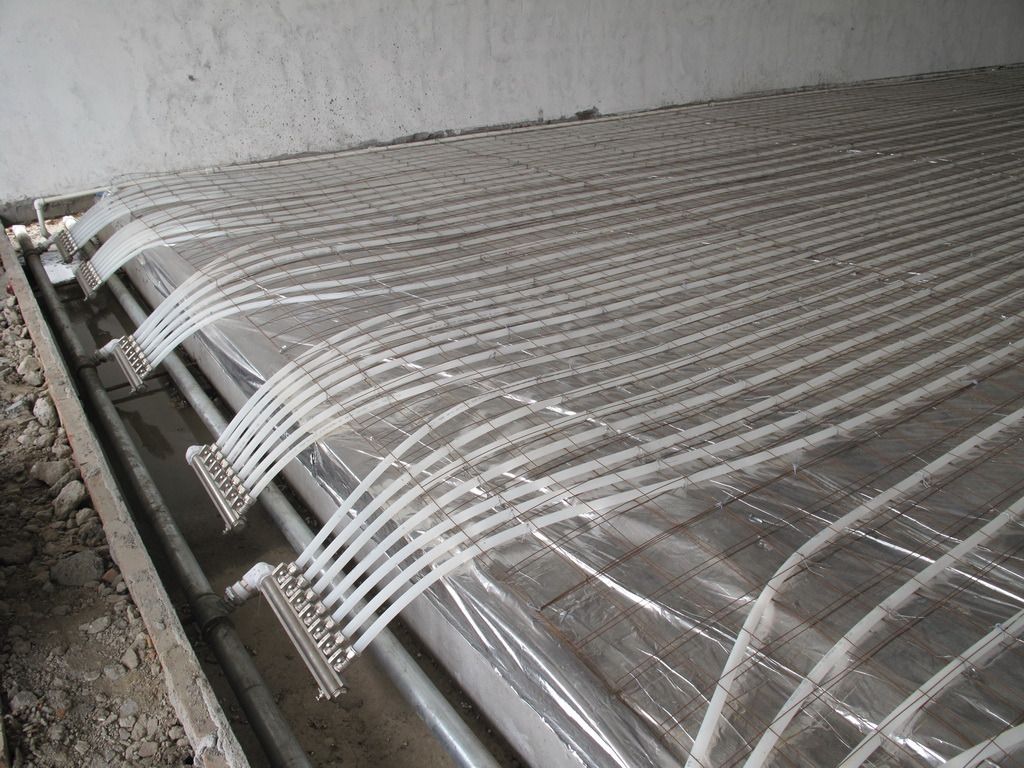

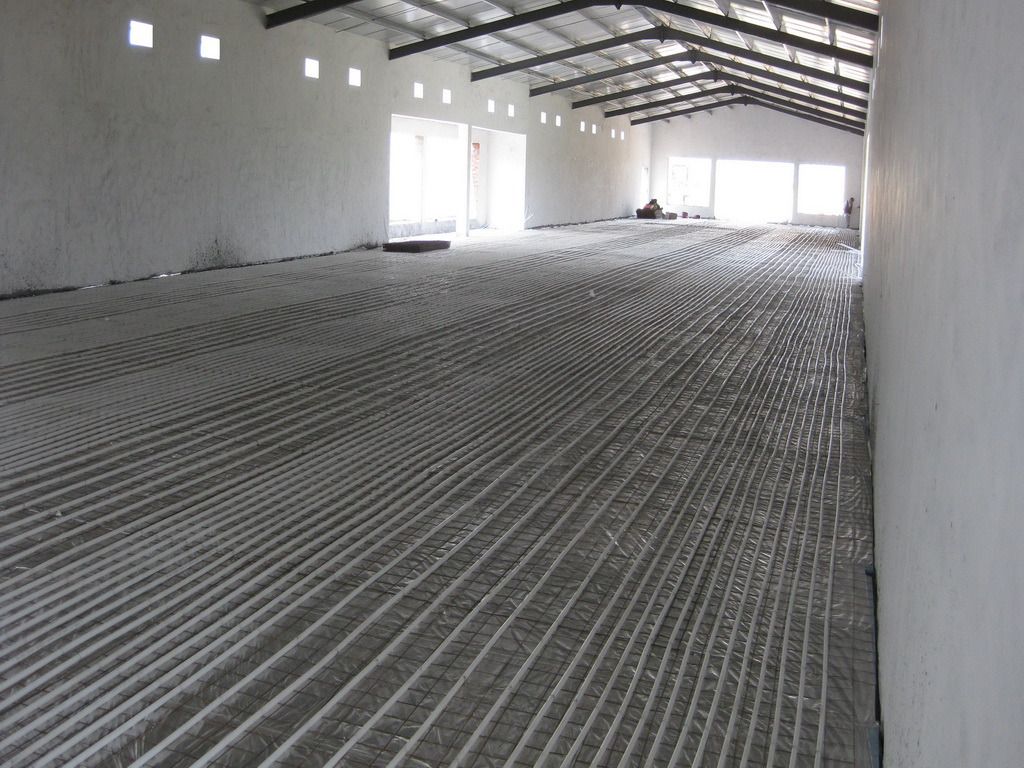

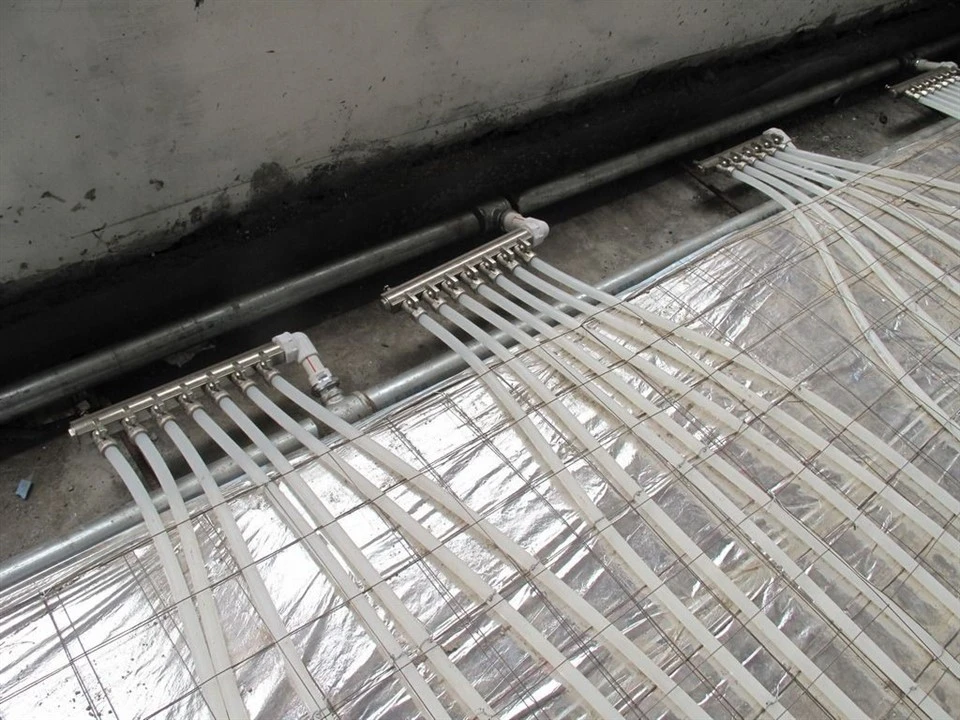

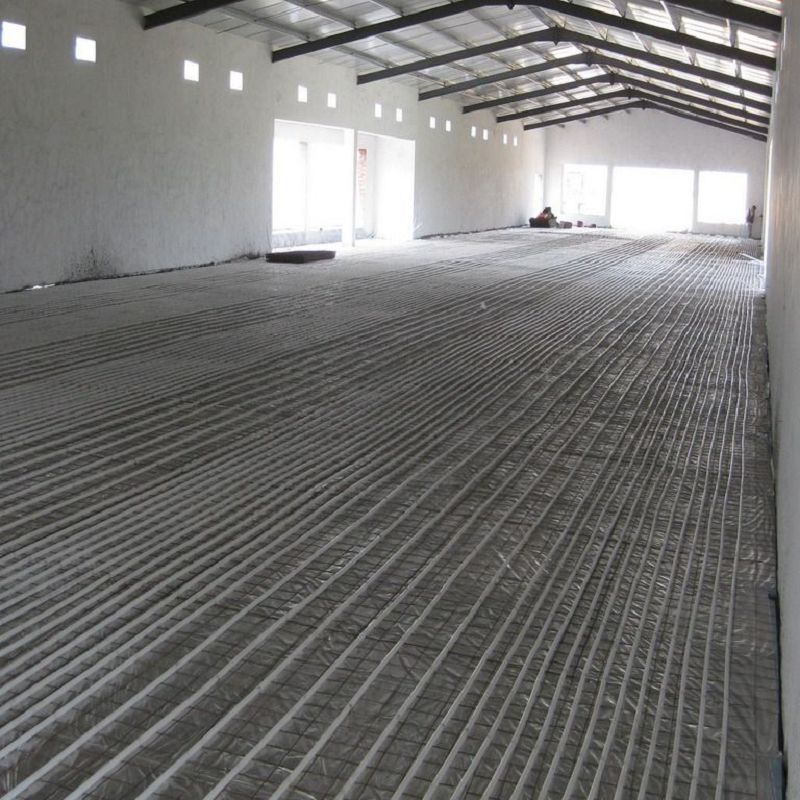

This water-heated underfloor intelligent heating system is custom-developed for stacked/stepped pullet cages aged 0–18 weeks, adopting ground low-temperature hot water radiant heating structure (matching real-shot PE underfloor pipes and water distributors). It precisely meets three-stage temperature requirements for chicks, young pullets and growers. Chicks have weak thermoregulation and are extremely sensitive to ground temperature; traditional hot-air heating easily causes overheating on upper layers and chilling at bottom with chicken huddling. By circulating hot water through buried PE pipes, the system dissipates heat evenly from bottom to top, realizing constant ground temperature in cage areas with zero temperature dead zones, perfectly solving bottom-layer chick chilling problems. Equipped with an intelligent constant-temperature main unit and zoned water distributors, it precisely sets phase temperature curves: 33–35°C for 0–3 weeks, 28–32°C for 4–8 weeks, 20–25°C for 9–18 weeks. Pipes are made of food-grade corrosion-resistant PE material, and water distributors are constructed from 304 stainless steel, withstanding high humidity, ammonia and dust corrosion in pullet houses. Intelligently linked with ventilation, lighting and spray systems, it ventilates and dehumidifies while maintaining warmth, greatly reducing respiratory diseases. Suitable for floor and cage rearing, it provides a long-term heating solution with ground constant temperature, low stress and high survival rate for large-scale pullet farms.
Product specifications
|
Parameter Item |
Detailed Specification |
|
Applicable Cage Type |
Stacked/stepped pullet cages, fully compatible with all Guangxing layer cage series |
|
Temperature Control Range |
10–30°C (optimal laying temp: 18–22°C) |
|
Temperature Control Accuracy |
±0.5°C, tier-to-tier/cage-to-cage difference ≤±0.8°C |
|
Heating Method |
High-efficiency hot air circulation + inter-cage radiant heat conduction, full-area uniform heat distribution |
|
Main Unit Material |
304 stainless steel, ammonia-resistant, moisture-proof, corrosion-resistant & high-temperature resistant |
|
Heat Exchanger Material |
Corrosion-resistant aluminum alloy + high-temperature coating, high heat exchange efficiency & dust resistance |
|
Control Mode |
Intelligent constant temperature, multi-stage timing, low-temperature linkage, APP remote monitoring (optional) |
|
Power Supply |
AC 220V/380V; 110V/415V customizable, compatible with global power grids |
|
Safety Protection |
Overheat, leakage, water shortage protection & fault alarm (sound/light + APP push) |
Product features and advantages
Features
1.Ground water‑heated radiant heating dissipates heat from bottom to top, prioritizing warmth for bottom‑layer chicks and eliminating huddling from cold stress.
2.Real‑shot‑matched PE underfloor pipe layout with buried installation for even heat distribution, no temperature dead zones between cages and tiers.
3.±0.5°C high-precision constant temperature with whole-area difference ≤0.8°C ensures even flock growth and weight variation ＜5%.
4.Intelligently links with ventilation, lighting, spray and environment controllers for integrated management of heat preservation and air exchange.
advantages
1.【Ground-First Heating for Higher Survival】Water-heated underfloor heating dissipates heat from bottom to top, eliminating chilling for bottom chicks, boosting survival rate by 4–6% and cutting mortality by 15%+.
2.【Uniform Growth with Consistency】Zero tier-to-tier temperature difference ensures even flock weight, 10% higher marketing uniformity and 0.08–0.12 lower feed-to-gain ratio.
3.【Zoned Precision Control】Independent temperature control via distributors ensures consistent end-to-end heat for large-scale long-barn farming.
Application scenarios
Large-scale cold-northern brooder farms use underfloor heating to stabilize ground temperature at 33–35°C, eliminating chick huddling and death from cold.
Packaging and transportation
Transportation: Supports FCL/LCL sea freight to major global ports with air freight available for urgency; fumigation certificate, packing list, certificate of origin and certifications provided; heavy items wooden‑framed with full logistics tracking.
FAQ
Q: What is the core difference between your water‑heated underfloor heating and traditional hot‑air heating?
A: Traditional hot‑air heating blows from top to bottom, chilling bottom‑layer chicks; our system dissipates heat from ground up, prioritizing chick warmth with lower stress, higher survival rate and no respiratory dryness.
Q: Is post‑installation maintenance and manure cleaning convenient for buried underfloor pipes?
A: Pipes are buried under ground cushions with no exposure to manure, fully compatible with manure removal and disinfection, requiring zero pipe maintenance.
After-sales service
1.Provide special training on underfloor heating installation, heat-source docking and zoned temperature control for overseas maintenance personnel before project launch.
2.Establish exclusive customer files with one-on-one after-sales specialists to track system operation status throughout the cycle and proactively warn of potential faults.
