Product Overview
This fully automatic broiler water line is specially designed for large-scale cage breeding, suitable for the entire rearing cycle of laying hens, broilers and other poultry from brooding to growing periods. It effectively solves industry pain points of traditional drinking equipment such as water leakage and uneven water supply.
The whole unit adopts food-grade anti-corrosion materials and is equipped with stainless steel drinking nipples, ensuring clean water quality and even water output. It meets the drinking needs of poultry at different ages, completely eliminates water leakage risks, and guarantees safe and hygienic drinking water.
The equipment supports flexible lifting adjustment and precise pressure regulation, which can be adapted freely according to poultry growth stages. It ensures balanced water supply throughout the henhouse and promotes neat and uniform growth of the flock.
It features a high degree of automation and can be connected with an intelligent control system to realize fully automatic water supply. Easy to disassemble and clean, it greatly saves labor costs and reduces the incidence of poultry diseases. Designed to adapt to the complex and harsh environment of chicken houses, the equipment is durable with a long service life.
Basic Parameters
|
Cage-Rearing Drinking Equipment |
Standard |
|
25 Round Drinking Pipe32 Round Drinking Pipe22 Square Drinking Pipe28 Square Drinking Pipe |
The drinking pipe is made of PVC material with a smooth and flat surface. It can be bent to 180° without cracking. After being frozen at -20 °C for 1 hour and kept warm for another 1 hour, it shall undergo a high-altitude drop impact test (hammer: d25 SR12.5, weight 0.5 kg, drop height 0.6 m), and the pipe surface shall remain intact without rupture.1. Appearance: The inner and outer surfaces of the pipe are smooth, free of scratches, depressions, visible black spots, impurities, sand holes and leakage risks. Pipe ends are cut flat and perpendicular to the central axis.2. Color: Milky-white with uniform luster and no visible color difference to the naked eye.3. Dimensions: Side wall thickness ≥ 1.8 mm.4. Straightness: For square pipes laid flat naturally on a plane, straightness ≤ 1 mm per meter along the length.5. Custom length: Custom-sized drinking pipes are available per customer requirements. |
|
Type I Pipe Fitting |
PVC material, no water leakage after bonding. |
|
Type II Pipe Fitting |
PVC material, no water leakage after bonding. |
|
2.9-30 Ball-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 25–45 mL/min |
|
2.9-55 Ball-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 45–75 mL/min |
|
2.9-80 Ball-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 65–95 mL/min |
|
2.9-30 Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 25–45 mL/min |
|
2.9-55 Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 45–75 mL/min |
|
2.9-80 Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 65–95 mL/min |
|
2.9-30 Metal Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 25–45 mL/min |
|
2.9-55 Metal Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 45–75 mL/min |
|
2.9-80 Metal Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 65–95 mL/min |
|

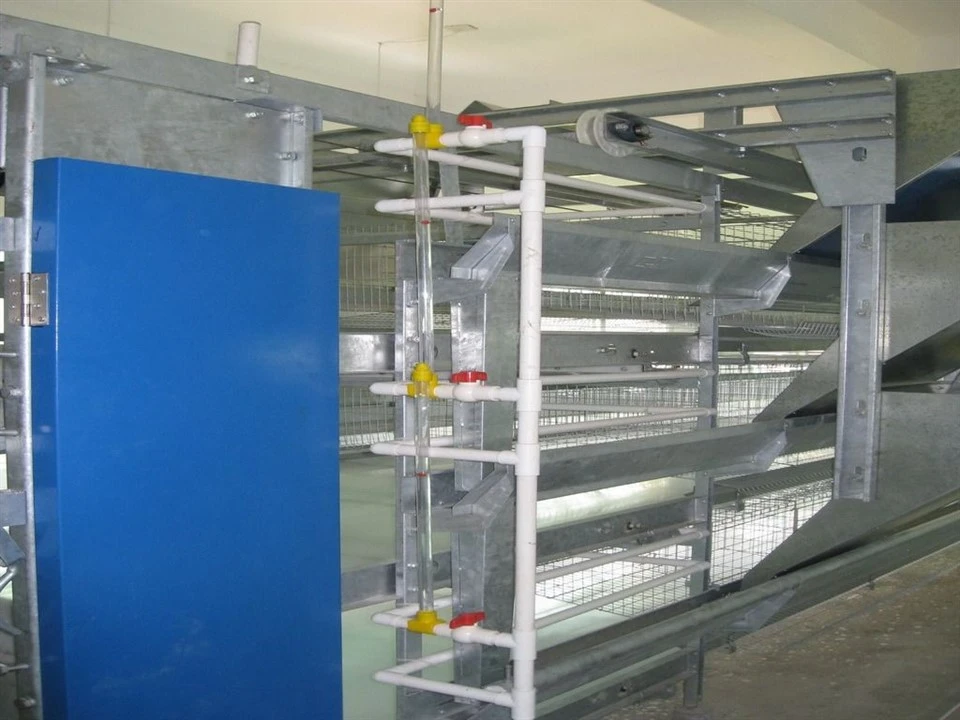

Pressure-Regulating Water Supply Device |
Made of PVC material |
|
Intelligent Flushing System |

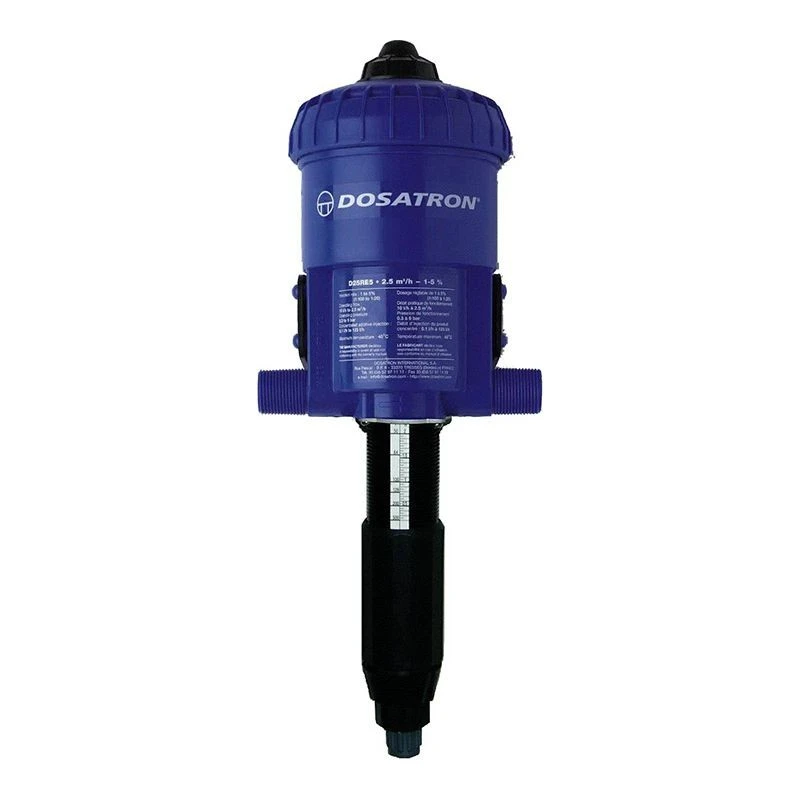

Automatic Flushing: The controller sets the number of flushing cycles, duration and start time according to on-site pipelines.Soaking Flushing: Soaking liquid is injected into pipelines. The controller configures parameters including soaking-flushing start time, flushing duration and soaking time. The medicine-containing soak dissolves impurities and biofilm attached to pipe walls.Automatic Dosing: The controller sets the dosing start time and controls the automatic switching of electric ball valves to realize automatic dosing. The liquid-level detection sensor of the dosing bucket automatically stops dosing.Water Shortage Alarm: Signals from the liquid-level sensor at the water-line terminal are transmitted to the controller via the terminal alarm control box. The controller accurately locates the faulty water line and triggers an audible-visual alarm on the alarm page.Rapid Water Replenishment: When terminal water shortage occurs in pipelines, the controller activates rapid water replenishment by adjusting the intelligent pressure regulator based on preset parameters to maintain normal water-line water level.Pulse Flushing: The controller activates pulse flushing with preset pulse duration. Combined with automatic flushing, the pulse pump generates water hammer waves with mixed air and water to remove stubborn biofilm inside pipe walls. (This function is unavailable in the Professional Version) |
Product Characteristics and Advantages
Feature
It adopts a streamlined structure design, which enables simple installation and straightforward operation, effectively lowering labor input and costs. The drinking water system is equipped with accurate flow regulation to prevent water splashing and unnecessary water waste. Built with solid and durable structure, the equipment enjoys stable performance and an extended service lifespan.
Fitted with an intelligent automatic control system, it can automatically increase pipeline flushing times to minimize nipple clogging. It also prevents economic losses resulting from delayed cleaning and further saves manual labor. All vulnerable wearing parts can be replaced separately instead of changing the whole set of equipment, greatly cutting daily breeding operating costs.
Moreover, it supports standardized epidemic prevention management for farms, enhances the prevention and control effect of avian influenza and other poultry diseases, improves overall breeding efficiency and quality, and ultimately creates better economic returns for breeders.
Advantages
This fully automatic broiler drinking water line is designed for large-scale cage breeding. It covers the entire growth cycle of laying hens and broilers, and effectively solves common problems of traditional drinking equipment such as water leakage and unstable water supply.

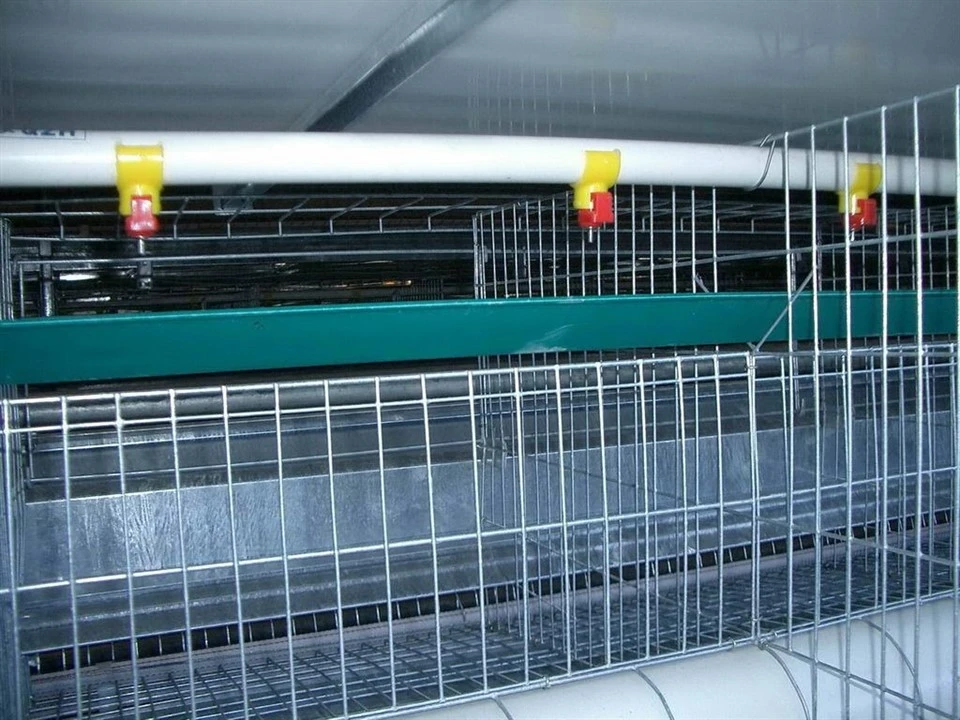

Waterline Pipe
The water pipeline is manufactured from premium PVC raw material with a sleek surface. The square pipe can withstand 180-degree bending without cracking. It has passed the drop weight impact test: after being frozen at -20℃ for one hour and held at a constant temperature for another hour, the pipe shows no surface damage (test specification: hammer d25, SR12.5, weight 0.5kg, drop height 0.6m).
- Appearance: The inner and outer pipe walls are smooth, without scratches, dents, black spots, impurities or pinholes, eliminating potential leakage hazards. Pipe ends are cut flat and perpendicular to the pipe axis.
- Color: Milky white in uniform shade with no obvious color difference.
- Wall Thickness: Side wall thickness ≥ 1.8mm.
- Straightness: When placed freely on a flat platform, the straightness deviation of the square pipe is no more than 1mm per meter.
- Custom Length: Pipe lengths can be customized as per customer demands.

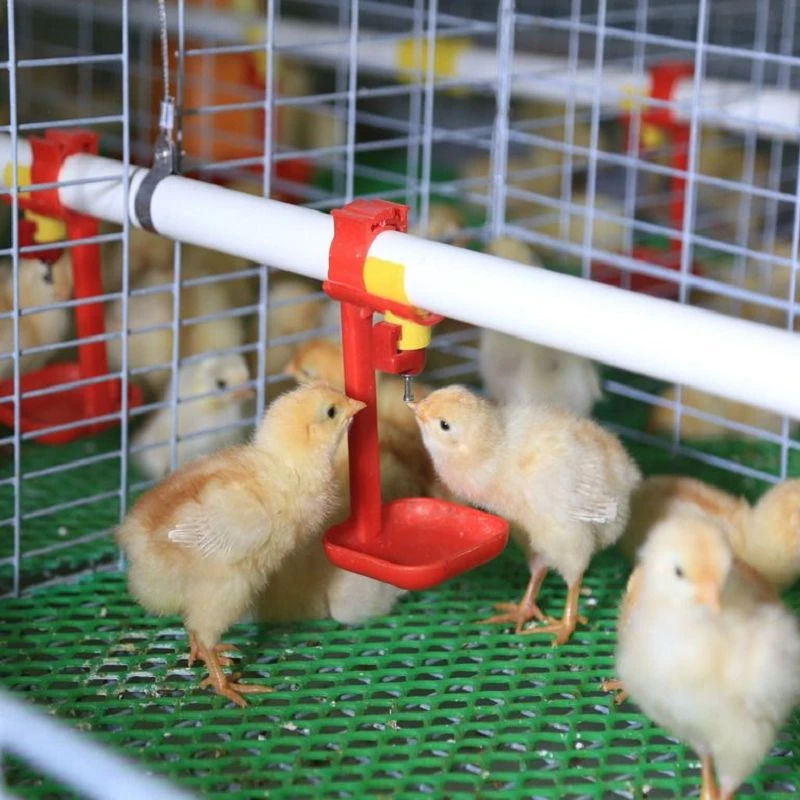

Nipple Drinker
Drinking nipples are designed with multiple flow rates to suit different chicken varieties. Matched with a pressure regulator, water flow can be adjusted by pressure increase or reduction to adapt to varying seasonal environments.
Application
Guangxing evaporative cooling pads are adaptable to breeding environments across the globe and can be perfectly matched with Guangxing export-style stepped broiler cages for complete supporting application.
Tailored for high-temperature breeding areas in tropical and subtropical overseas regions, the pads can rapidly cool down the chicken house and effectively relieve heat stress in broilers.
Made of corrosion-resistant and weather-proof materials, the product complies with international large-scale breeding standards and adapts to different voltage specifications and actual breeding working conditions in various countries.
When combined with broiler cages, negative pressure fans and intelligent control systems, it forms an integrated ventilation and cooling solution. It helps large-scale overseas broiler farms achieve efficient and stable breeding, while improving broiler meat quality.
FAQ
Q1: What are the structural and application highlights of the whole water line equipment?
A1: It adopts a streamlined structure for easy installation and operation. Precise flow control prevents water splashing and waste. The solid structure ensures stable performance and long service life. Wearing parts can be replaced individually to cut breeding costs. It supports standardized epidemic prevention management, improves the prevention and control of avian influenza and other poultry diseases, and boosts overall breeding quality and economic benefits.
Q2: What are the core advantages of this drinking water line compared with traditional drinking equipment?
A2: It perfectly solves common problems of traditional equipment such as water leakage and uneven water supply. Adopting food-grade anti-corrosion materials and stainless steel nipples, it ensures clean and safe water quality. It supports flexible lifting and precise pressure regulation to realize balanced water supply and uniform flock growth. With high automation, it can connect with intelligent control systems. It is easy to disassemble and clean, reduces labor costs and disease incidence, and features stable performance and long service life for harsh henhouse environments.
Q3: What material is the waterline pipe made of, and what performance standards does it meet?
A3: It is made of high-quality PVC with a smooth surface. The square pipe can be bent 180° without cracking. It passes the drop hammer impact test without surface damage after being frozen at -20℃ and kept at constant temperature.The inner and outer walls are smooth without scratches, dents, black spots or pinholes to avoid leakage risks. It is milky white with uniform color; side wall thickness ≥ 1.8mm; straightness error per meter of square pipe ≤ 1mm. Custom lengths are available.
Q4: What specifications do nipple drinkers have, and can they meet different breeding needs?
A4: Nipple drinkers include ball valve, cone valve and metal cone valve types with models of 2.9-30/55/80. The working pressure is 2–6kPa, and the water flow ranges from 25mL/min to 95mL/min. Matched with a pressure regulator, the water flow can be adjusted by pressure increase or reduction to adapt to different chicken breeds and seasonal conditions.
Q5: What main functions does the intelligent flushing system have?
A5: It is equipped with automatic flushing, soaking flushing, automatic dosing, water shortage alarm, rapid water replenishment and pulse flushing. It can set flushing times, duration and start time freely. The soaking liquid dissolves impurities and biofilm on the pipe wall. It supports automatic dosing and liquid level automatic stop. It gives sound-light alarm for water shortage and realizes automatic rapid water replenishment. Pulse flushing can remove stubborn biofilm (not available for the professional version).
Q6: What are the structural and application highlights of the whole water line equipment?
A6: It adopts a streamlined structure for easy installation and operation. Precise flow control prevents water splashing and waste. The solid structure ensures stable performance and long service life. Wearing parts can be replaced individually to cut breeding costs. It supports standardized epidemic prevention management, improves the prevention and control of avian influenza and other poultry diseases, and boosts overall breeding quality and economic benefits.
