Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of layer cage water supply system in China. If you're going to buy durable layer cage water supply system made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Product Overview
This automatic water supply & drinking system for cage-reared layers is designed for large-scale rearing of stacked and stepped multi-tier commercial layers, consisting of constant-pressure water supply pump station, 3-stage precision filtration, cage-specific nipple drinkers, vertical layered pressure-regulating components, terminal automatic flushing & sewage discharge and intelligent water pressure monitoring modules, perfectly matching all Guangxing multi-tier layer cage series. Deeply optimized for core pain points including uneven water pressure between vertical tiers, stable drinking water during laying period, biofilm growth in water lines, terminal water shortage and egg-shell quality control, it adopts vertical layered constant-pressure compensation to ensure consistent water pressure from top to bottom tiers. Leak-proof water-saving nipples prevent water splashing; timed automatic pipeline flushing reduces bacterial growth; linkage with environmental control systems realizes synchronous management of water supply timing with lighting, feeding and egg collection. It stably improves laying rate and egg weight uniformity, reduces intestinal diseases, and provides a hygienic, water-saving and intelligent cage-rearing drinking solution for large-scale layer farms.
Drink Line and Nipple*H Frame And Grower

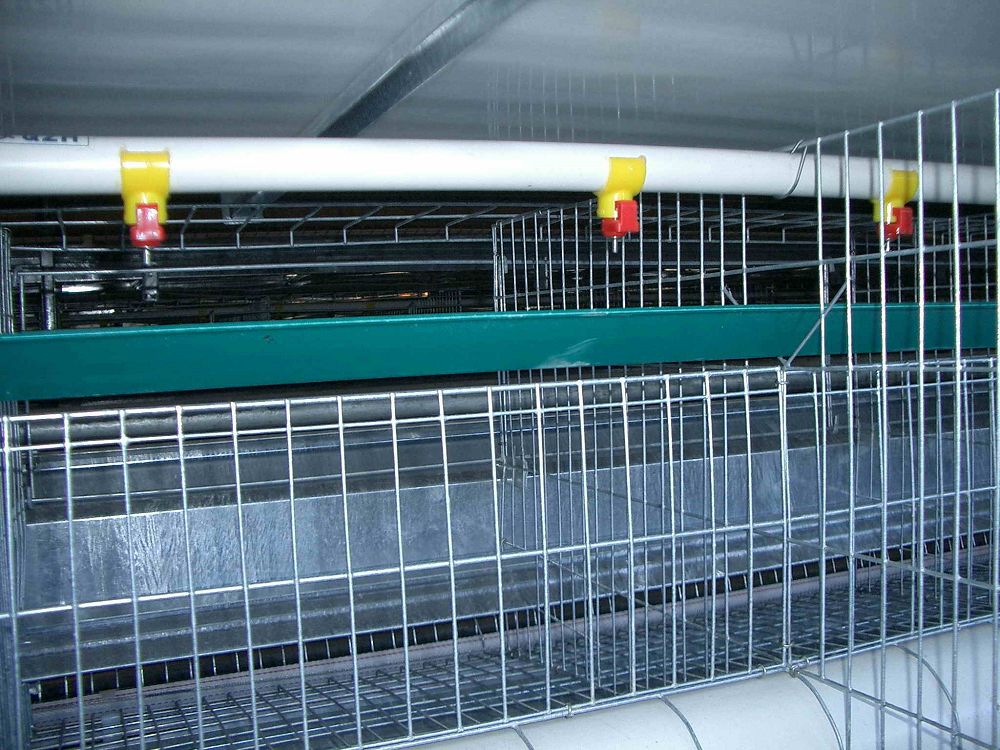

√ Drink line is located in the middle of two cages,with 2nipples which can turn 360 degree around,shared by both sides of 12birds.Easy for drinking.With nipple socket,no leakage,less maintenance.
Drink Line and Nipple*A Frame And Grower
√ One line for one section,each bird has access to 2nipples.Easy for drinking.With nipple socket,no leakage,less maintenance.

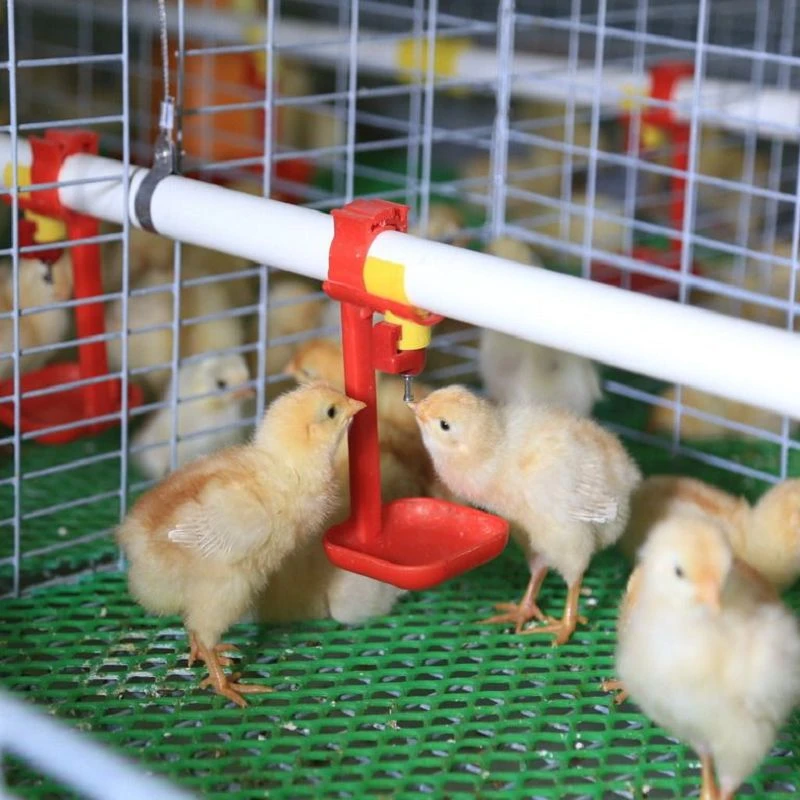

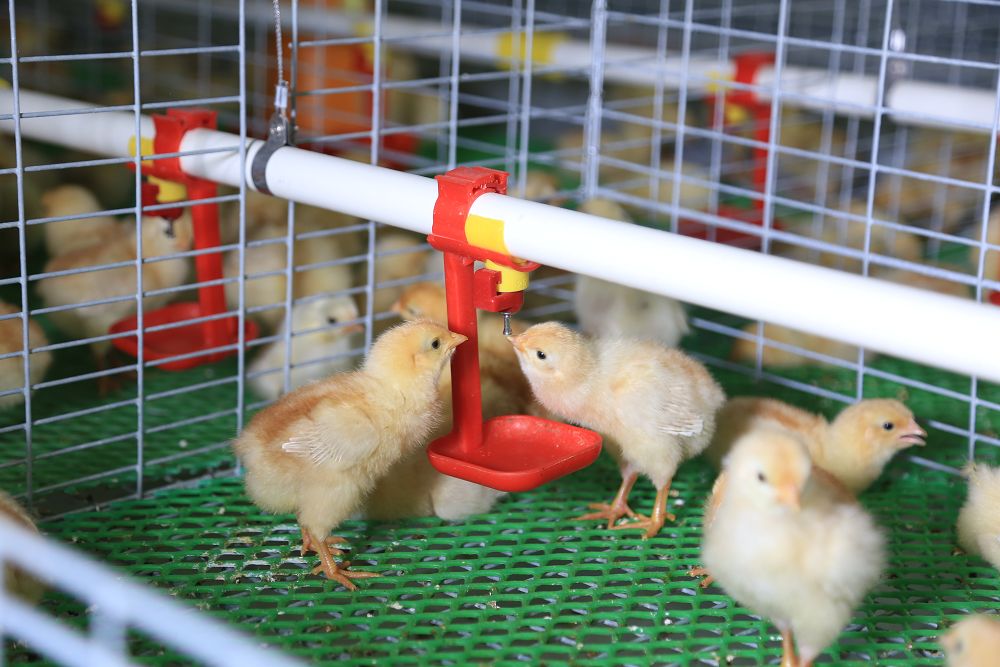

Drink Line and Nipple*Starter And Broiler
√ Drinking line is located in the middle of every cage,with 2 nipples which can turn 360 degree around.Water line can be regulated up or down according to flock age and growth at a certain random.

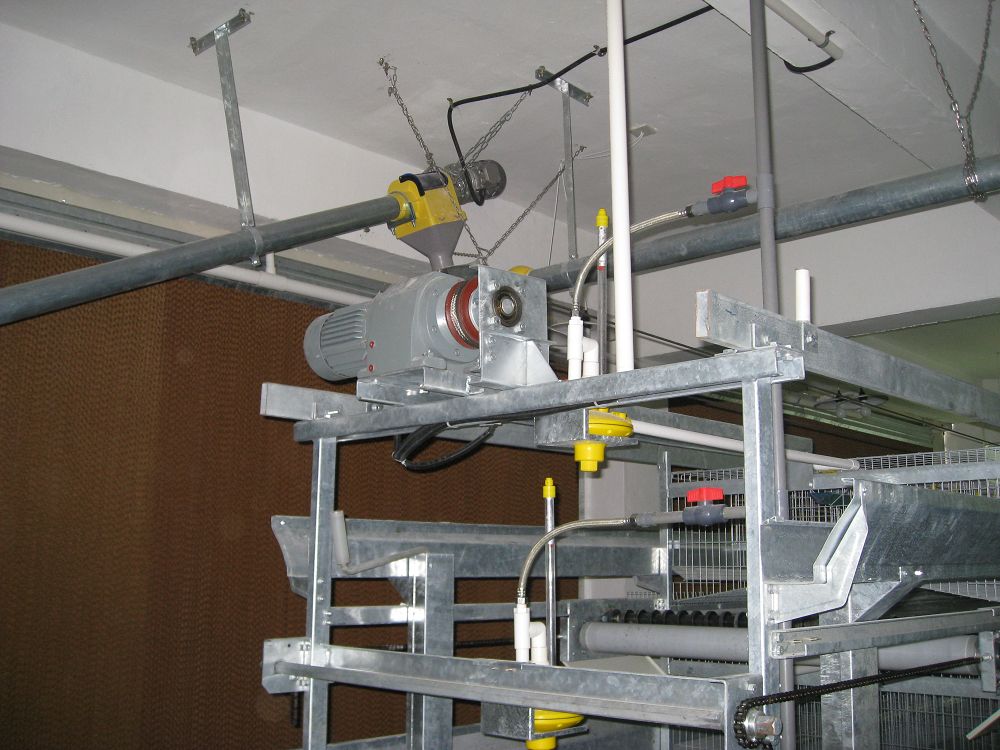

Front Water Supply

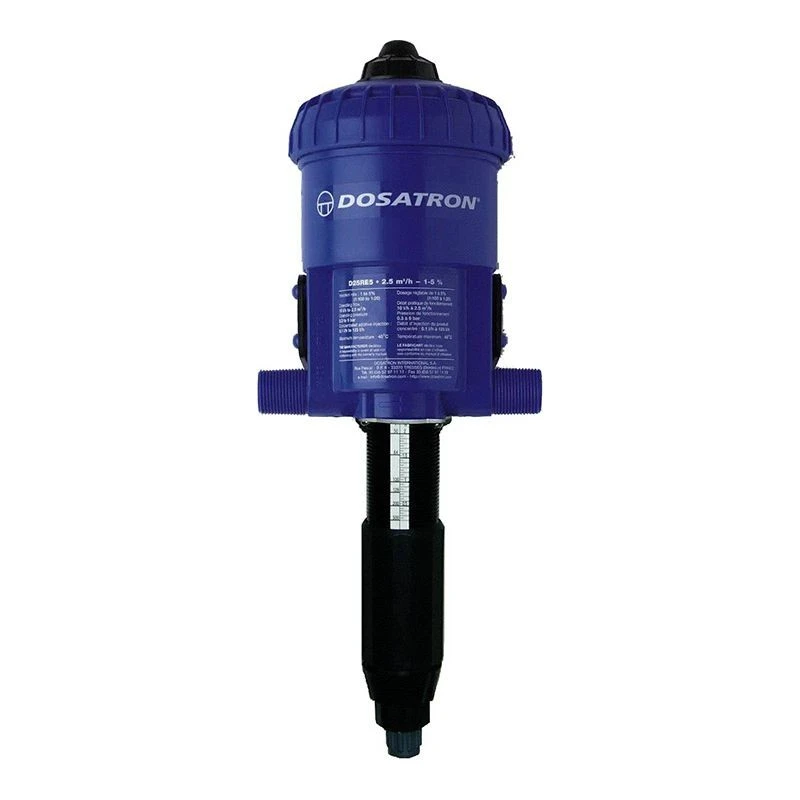

√ If poultry house,there is a filter for water cleaning and a medicator (Dosatron France).

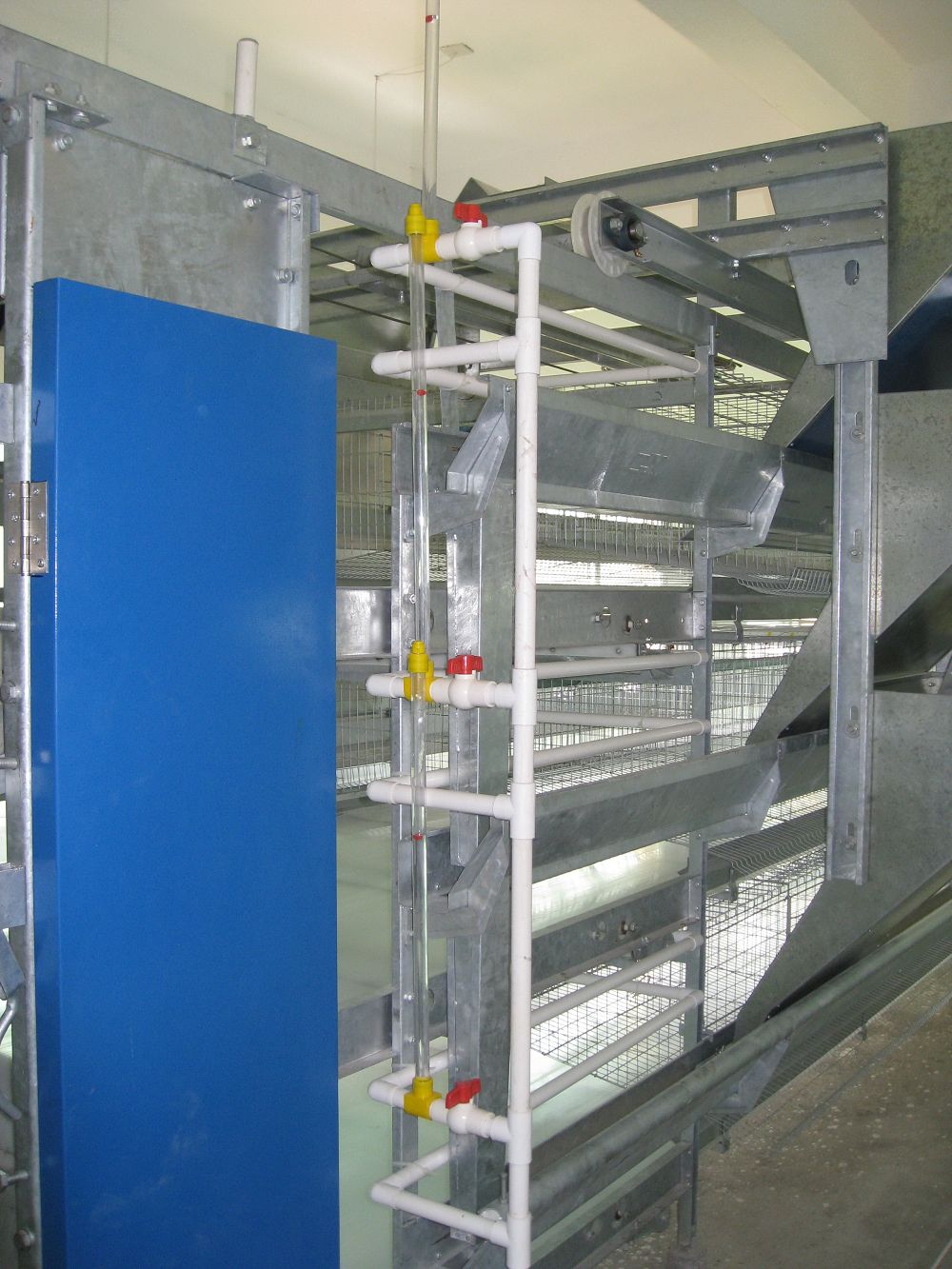

Pressure Regulator(Front)
Terminal(End)
Basic Product Parameters
|
Cage-Rearing Drinking Equipment |
Standard |
|
25 Round Drinking Pipe32 Round Drinking Pipe22 Square Drinking Pipe28 Square Drinking Pipe |
The drinking pipe is made of PVC material with a smooth and flat surface. It can be bent to 180° without cracking. After being frozen at -20 °C for 1 hour and kept warm for another 1 hour, it shall undergo a high-altitude drop impact test (hammer: d25 SR12.5, weight 0.5 kg, drop height 0.6 m), and the pipe surface shall remain intact without rupture.1. Appearance: The inner and outer surfaces of the pipe are smooth, free of scratches, depressions, visible black spots, impurities, sand holes and leakage risks. Pipe ends are cut flat and perpendicular to the central axis.2. Color: Milky-white with uniform luster and no visible color difference to the naked eye.3. Dimensions: Side wall thickness ≥ 1.8 mm.4. Straightness: For square pipes laid flat naturally on a plane, straightness ≤ 1 mm per meter along the length.5. Custom length: Custom-sized drinking pipes are available per customer requirements. |
|
Type I Pipe Fitting |
PVC material, no water leakage after bonding. |
|
Type II Pipe Fitting |
PVC material, no water leakage after bonding. |
|
2.9-30 Ball-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 25–45 mL/min |
|
2.9-55 Ball-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 45–75 mL/min |
|
2.9-80 Ball-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 65–95 mL/min |
|
2.9-30 Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 25–45 mL/min |
|
2.9-55 Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 45–75 mL/min |
|
2.9-80 Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 65–95 mL/min |
|
2.9-30 Metal Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 25–45 mL/min |
|
2.9-55 Metal Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 45–75 mL/min |
|
2.9-80 Metal Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 65–95 mL/min |
|
Pressure-Regulating Water Supply Device |
Made of PVC material |
|
Intelligent Flushing System |
Automatic Flushing: The controller sets the number of flushing cycles, duration and start time according to on-site pipelines.Soaking Flushing: Soaking liquid is injected into pipelines. The controller configures parameters including soaking-flushing start time, flushing duration and soaking time. The medicine-containing soak dissolves impurities and biofilm attached to pipe walls.Automatic Dosing: The controller sets the dosing start time and controls the automatic switching of electric ball valves to realize automatic dosing. The liquid-level detection sensor of the dosing bucket automatically stops dosing.Water Shortage Alarm: Signals from the liquid-level sensor at the water-line terminal are transmitted to the controller via the terminal alarm control box. The controller accurately locates the faulty water line and triggers an audible-visual alarm on the alarm page.Rapid Water Replenishment: When terminal water shortage occurs in pipelines, the controller activates rapid water replenishment by adjusting the intelligent pressure regulator based on preset parameters to maintain normal water-line water level.Pulse Flushing: The controller activates pulse flushing with preset pulse duration. Combined with automatic flushing, the pulse pump generates water hammer waves with mixed air and water to remove stubborn biofilm inside pipe walls. (This function is unavailable in the Professional Version) |
Product Characteristics and Advantages
Feature
Simple structure for easy installation and operation, reducing labor costs.
01
2. The drinking water system realizes precise water control to prevent water splashing; it features a sturdy structure and long service life.
02
3. Automatically controlled by the control system, it increases flushing frequency, reduces nipple clogging, avoids losses caused by delayed flushing, and saves labor costs.
03
4. Replaceable spare parts lower breeding expenses.
04
5. It facilitates epidemic prevention management, effectively improves prevention and control capacity against avian influenza and other poultry diseases, raises breeding quality, and brings high economic benefits to farmers.
05
Advantages
Product Details
1. Poultry, livestock farm ventilation;
2. Greenhouses, mining ventilation;
3. High temperature or smelly workshop;
4. Labor intensive plant, like garment factory;
5. Other factories need both ventilation and humidity, like textile mile;
6. Warehousing and logistics.
Application Scenarios
Guangxing layer cage cooling pads are suitable for breeding scenarios in different overseas regions and can be supplied as a complete set with Guangxing export-type stacked layer cages.
Targeting the high-temperature breeding demands of tropical and subtropical regions overseas, the cooling pads can efficiently lower the temperature inside layer houses and relieve heat stress in laying hens.
Compliant with international large-scale breeding standards, the cooling pads are made of anti-corrosion and weather-resistant materials. They adapt to voltage standards and breeding environments of different countries, and can form an integrated ventilation and cooling solution together with layer cages, negative-pressure fans and intelligent control systems.
This helps overseas large-scale layer farms achieve efficient and stable breeding, and improves egg quality and laying rate.
Packaging & Transportation
upplied as a complete set matching Guangxing layer cages from Guangzhou. Container sea shipping is available for overseas delivery.Large equipment is reinforced with wooden frames, while small accessories are individually packed, with full-process logistics tracking provided.Installation drawings and shipping lists are supplied, enabling quick arrangement of installation after goods arrival.
FAQ
Q: How does this layer cage ventilation and cooling system ensure uniform temperature difference between the upper and lower layers of layered layer cages?
A: Adopting multi-fan staggered layout + layered air guide design, according to the characteristics of the layer distance of layered layer cages, the air duct direction is precisely planned, combined with adjustable air deflectors, so that the air flow uniformly covers each layer of the cage body, completely eliminating the temperature difference between upper and lower layers (temperature difference ≤2℃), ensuring that each layer hen is in a suitable growth environment and the laying performance is stable.
Q: Will the system operation noise affect the laying of layer hens? What is the noise standard?
A: It will not affect the laying of layer hens. The system adopts ultra-low noise design, with operation noise ≤35dB, combined with silent fans and shock-absorbing installation accessories, no obvious abnormal noise during operation, which will not interfere with the feeding, resting and laying of layer hens, adapting to the full laying cycle breeding of layer hens, and meeting the noise control requirements of overseas large-scale layer farms.
Q: Layer hens have strict requirements on temperature and humidity during the laying period. Can the system achieve constant temperature and humidity control?
A: Yes, constant temperature and humidity control can be achieved. The intelligent control cabinet can preset the suitable temperature and humidity parameters for layer hens during the laying period (temperature 20-25℃, humidity 55%-65%), real-time monitor through sensors, automatically adjust the operation status of fans and wet curtains, precisely control the indoor temperature and humidity, and avoid the decrease of layer hen laying rate and the increase of broken egg rate caused by temperature and humidity fluctuations.
Q: Different countries overseas have different voltage standards. Can the system be directly adapted?
A: Yes, it can be directly adapted. The system supports customization of 220V/380V voltage, and can customize voltage specifications according to the power grid standards of different overseas countries (such as 110V in Europe and America, 220V in Southeast Asia, 380V in the Middle East), no additional transformer is required, and it can be wired and used immediately after arrival, adapting to global overseas layer farm projects.
After-sales Service
- Upon completion of equipment commissioning, our company will list all maintenance items and corresponding cycles to facilitate your establishment of a standardized operation and maintenance system.
- After the project is put into operation, our company will provide professional skill training for your equipment operators and maintenance personnel, ensuring that the team fully masters key points of equipment operation and daily maintenance.
- The equipment enjoys a three-year warranty. In case of any malfunction within the warranty period that cannot be resolved via remote support, we promise to arrange engineers to arrive at the site promptly upon notification for rapid repair, so as to ensure normal equipment operation.
- After the expiration of the warranty period, our company will continue to provide comprehensive after-sales support. If on-site maintenance is required, we will arrange engineers to provide paid door-to-door service as requested, ensuring sustained and stable breeding production.
