Product Overview This
Brooding and growing water line is an automatic drinking device suitable for large-scale caged breeding. It is applicable to the entire cycle from brooding to rearing of laying hens, broilers and other poultry, solving the pain points of traditional drinking equipment such as water leakage and uneven water supply.
The equipment is made of food-grade anti-corrosion material and equipped with stainless steel nipple drinkers, ensuring clean water quality and uniform water output. It is suitable for the needs of poultry of different ages and eliminates water leakage and drinking water safety issues.

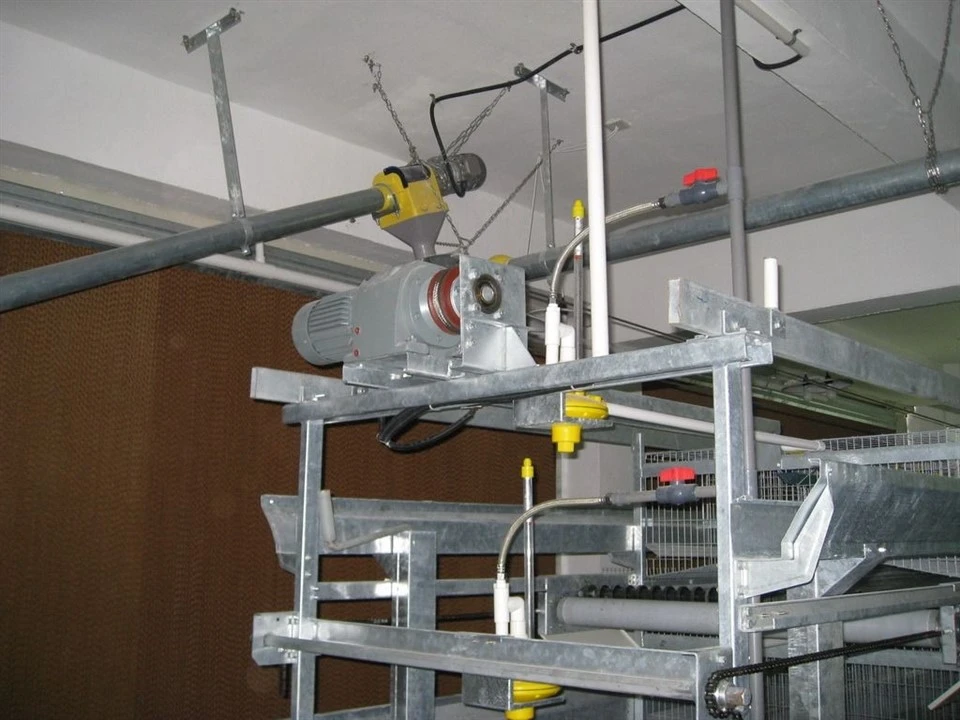

It has flexible lifting and precise pressure regulation functions, which can be adjusted according to the growth of poultry, ensuring balanced drinking water supply in the entire house and promoting the uniform growth of the flock.
With high automation, it can be linked with the intelligent control system to realize automatic water supply. It is easy to disassemble and clean, which can reduce labor costs and the incidence of diseases. It is suitable for the harsh environment of the chicken house and has a long service life.
Basic Parameters
|
Cage-Rearing Drinking Equipment |
Standard |
|
25 Round Drinking Pipe32 Round Drinking Pipe22 Square Drinking Pipe28 Square Drinking Pipe |
The drinking pipe is made of PVC material with a smooth and flat surface. It can be bent to 180° without cracking. After being frozen at -20 °C for 1 hour and kept warm for another 1 hour, it shall undergo a high-altitude drop impact test (hammer: d25 SR12.5, weight 0.5 kg, drop height 0.6 m), and the pipe surface shall remain intact without rupture.1. Appearance: The inner and outer surfaces of the pipe are smooth, free of scratches, depressions, visible black spots, impurities, sand holes and leakage risks. Pipe ends are cut flat and perpendicular to the central axis.2. Color: Milky-white with uniform luster and no visible color difference to the naked eye.3. Dimensions: Side wall thickness ≥ 1.8 mm.4. Straightness: For square pipes laid flat naturally on a plane, straightness ≤ 1 mm per meter along the length.5. Custom length: Custom-sized drinking pipes are available per customer requirements. |
|
Type I Pipe Fitting |
PVC material, no water leakage after bonding. |
|
Type II Pipe Fitting |
PVC material, no water leakage after bonding. |
|
2.9-30 Ball-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 25–45 mL/min |
|
2.9-55 Ball-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 45–75 mL/min |
|
2.9-80 Ball-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 65–95 mL/min |
|
2.9-30 Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 25–45 mL/min |
|
2.9-55 Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 45–75 mL/min |
|
2.9-80 Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 65–95 mL/min |
|
2.9-30 Metal Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 25–45 mL/min |
|
2.9-55 Metal Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 45–75 mL/min |
|
2.9-80 Metal Cone-Valve Nipple |
Pressure: 2–6 kPa, Flow rate: 65–95 mL/min |
|

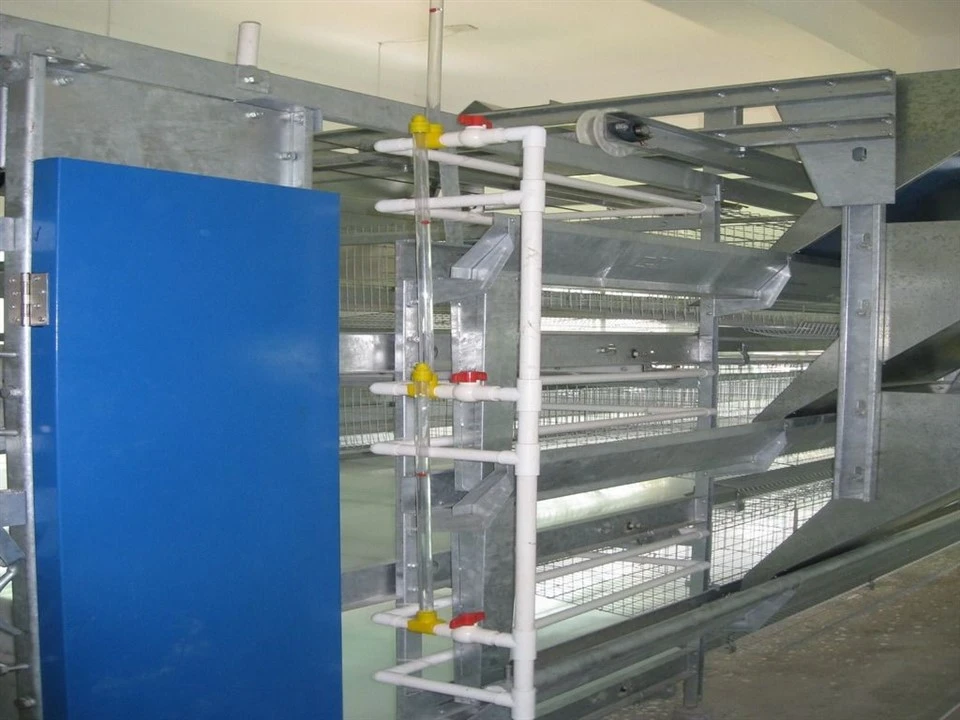

Pressure-Regulating Water Supply Device |
Made of PVC material |
|
Intelligent Flushing System |

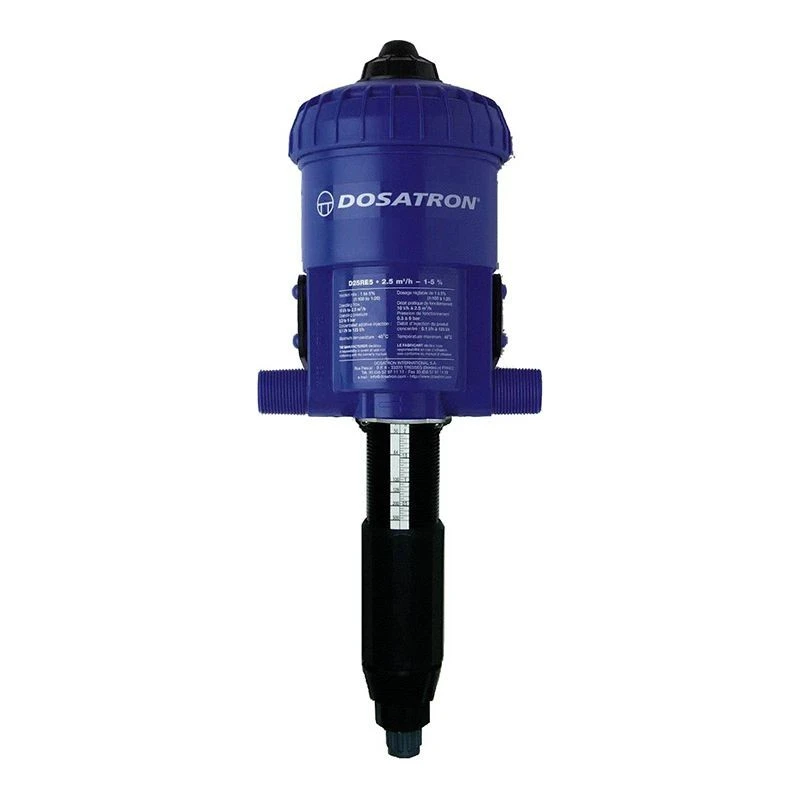

Automatic Flushing: The controller sets the number of flushing cycles, duration and start time according to on-site pipelines.Soaking Flushing: Soaking liquid is injected into pipelines. The controller configures parameters including soaking-flushing start time, flushing duration and soaking time. The medicine-containing soak dissolves impurities and biofilm attached to pipe walls.Automatic Dosing: The controller sets the dosing start time and controls the automatic switching of electric ball valves to realize automatic dosing. The liquid-level detection sensor of the dosing bucket automatically stops dosing.Water Shortage Alarm: Signals from the liquid-level sensor at the water-line terminal are transmitted to the controller via the terminal alarm control box. The controller accurately locates the faulty water line and triggers an audible-visual alarm on the alarm page.Rapid Water Replenishment: When terminal water shortage occurs in pipelines, the controller activates rapid water replenishment by adjusting the intelligent pressure regulator based on preset parameters to maintain normal water-line water level.Pulse Flushing: The controller activates pulse flushing with preset pulse duration. Combined with automatic flushing, the pulse pump generates water hammer waves with mixed air and water to remove stubborn biofilm inside pipe walls. (This function is unavailable in the Professional Version) |
Product Characteristics and Advantages
Feature
Featuring a simple structural design, it is easy to install and operate, greatly cutting labor costs. The drinking system adopts precise water flow control to avoid water splashing and waste. With robust construction, it delivers a long service life. Equipped with an intelligent automatic control system, it increases the flushing frequency to reduce nipple blockage, avoids economic losses caused by untimely cleaning, and further saves manpower. Wear parts are replaceable individually, eliminating the need for overall equipment replacement and reducing breeding operating expenses. It facilitates standardized epidemic prevention management, improves the prevention and control capacity of avian influenza and other poultry diseases, optimizes overall breeding quality, and brings higher economic benefits to farmers.
Advantages
This brooding and growing water line is an automatic drinking device suitable for large-scale caged breeding, covering the whole rearing cycle of laying hens and broilers. It perfectly solves common problems of traditional drinking equipment such as water leakage and inconsistent water supply.
Waterline Pipe
The waterline pipe is made of high-quality PVC material with a smooth surface. The square pipe can be bent up to 180 degrees without cracking. After being frozen at -20℃ for 1 hour and kept at a constant temperature for another hour, it passes the drop hammer impact test (hammer: d25, SR12.5, weight 0.5kg; drop height 0.6m) with no surface damage.
- Appearance: The inner and outer walls are smooth, free of scratches, dents, black spots, impurities and pinholes, with no hidden leakage risks. The pipe end is cut flat and perpendicular to the axis.
- Color: Milky white with uniform tone and no visible color difference.
- Wall Thickness: Side wall thickness ≥ 1.8mm.
- Straightness: When placed naturally on a flat surface, the straightness error per meter of the square pipe is ≤ 1mm.
- Custom Length: Custom sizes are available according to customer requirements.

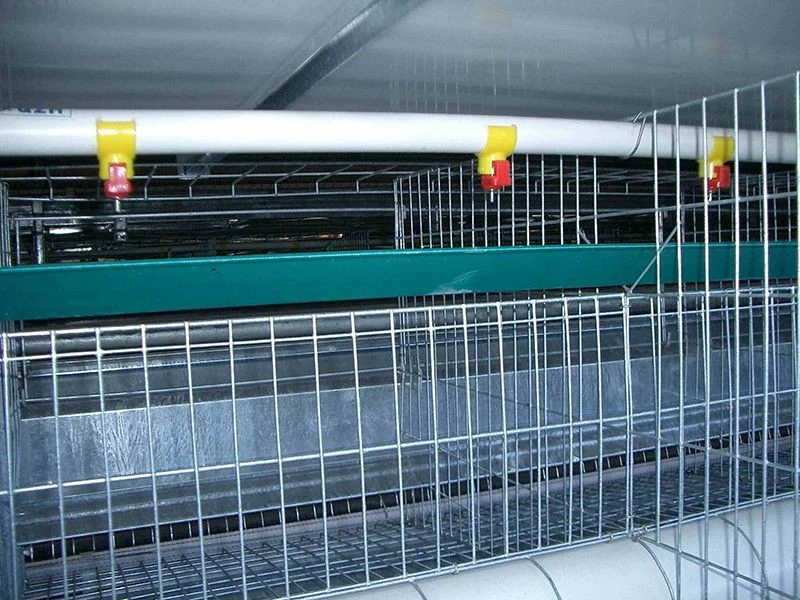

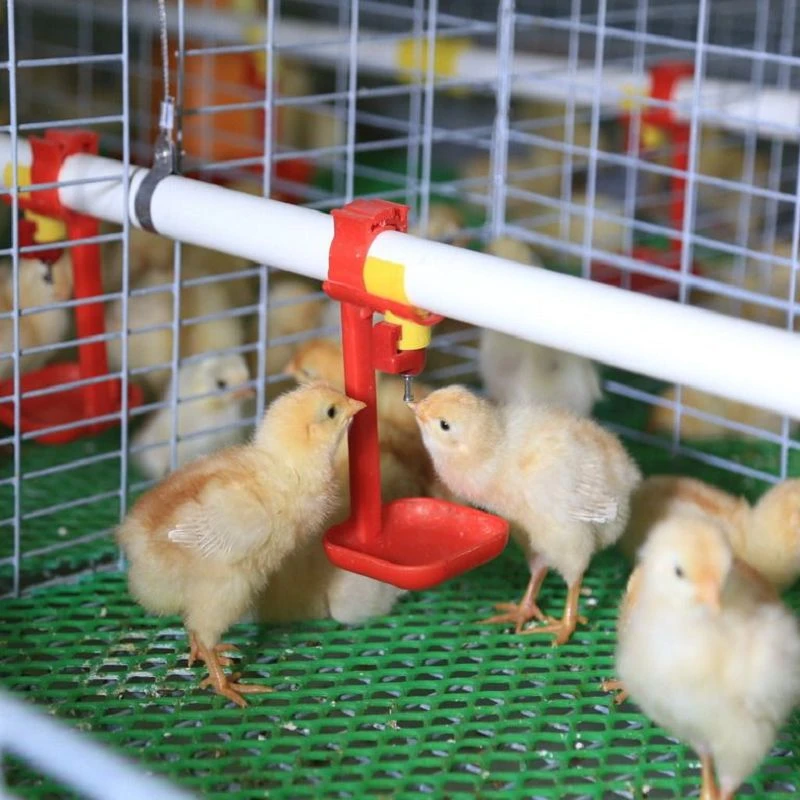

Nipple Drinker
Nipple drinkers are designed with different flow rates for various chicken breeds. With a pressure regulator, the water flow can be adjusted by boosting or reducing pressure to adapt to different seasonal conditions.
Application
ScenariosGuangxing evaporative cooling pads for layer cages adapt to breeding environments across global regions and can be matched with Guangxing export-style stacked layer cages as a complete set.Specially designed for high-temperature breeding in tropical and subtropical areas overseas, the pads efficiently cool down the chicken house and effectively relieve heat stress of laying hens.Made of corrosion-resistant and weatherproof materials, they comply with international large-scale breeding standards and fit various voltage specifications and breeding environments in different countries.Combined with layer cages, negative-pressure fans and intelligent control systems, they form an integrated ventilation and cooling solution, enabling overseas large-scale layer farms to achieve efficient and stable breeding, while improving egg quality and laying performance.
FAQ
Q1：What is a brooding and growing water line? What breeding mode is it suitable for?
A：This brooding and growing water line is an automatic drinking device suitable for large-scale caged breeding, applicable to the entire rearing cycle of laying hens, broilers and other poultry. It effectively addresses the drawbacks of traditional drinking equipment, such as water leakage and uneven water supply.
Q2：What are the core advantages of the brooding and growing water line?
A：Featuring a simple structural design, it is easy to install and operate, greatly cutting labor costs. The drinking system adopts precise water flow control to avoid water splashing and waste. With robust construction, it delivers a long service life. Equipped with an intelligent automatic control system, it increases the flushing frequency to reduce nipple blockage, avoids economic losses caused by untimely cleaning, and further saves manpower. Wear parts are replaceable individually, eliminating the need for overall equipment replacement and reducing breeding operating expenses. It facilitates standardized epidemic prevention management, improves the prevention and control capacity of avian influenza and other poultry diseases, optimizes overall breeding quality, and brings higher economic benefits to farmers.
Q3：What material is the waterline pipe made of? How is its cold resistance and impact resistance?
A：The waterline pipe is made of high-quality PVC material with a smooth surface. The square pipe can be bent up to 180 degrees without cracking. After being frozen at -20℃ for 1 hour and kept at a constant temperature for another hour, it passes the drop hammer impact test (hammer: d25, SR12.5, weight 0.5kg; drop height 0.6m) with no surface damage.
Q4：What are the appearance and specification standards of the waterline pipe?
A:Appearance: The inner and outer walls are smooth, free of scratches, dents, black spots, impurities and pinholes, with no hidden leakage risks. The pipe end is cut flat and perpendicular to the axis. Color: Milky white with uniform tone and no visible color difference. Wall Thickness: Side wall thickness ≥ 1.8mm. Straightness: When placed naturally on a flat surface, the straightness error per meter of the square pipe is ≤ 1mm. Custom Length: Custom sizes are available according to customer requirements.
