Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of broiler cage egg collection system in China. If you're going to buy durable broiler cage egg collection system made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Product Introduction
This egg-collection system for cage-reared broilers is customized for multi-tier cage breeding of meat-type breeders (commercial broilers do not produce eggs, this system is only for hatching-egg collection of meat breeders). Designed for pain points including large breeder body size, strong egg-pecking habits, strict hygiene requirements for hatching eggs, large vertical temperature differences between cage tiers and strict embryo protection, it consists of widened thickened longitudinal egg troughs, peck-proof flexible conveying belts, low-speed stable vertical elevators, hatching-egg buffer disinfection units, sealed breeding-grade main conveying lines and intelligent monitoring modules. Adopting ultra-low-speed soft conveying, thickened anti-collision edges and peck-proof structures, it eliminates hatching-egg breakage and peck damage. Fully enclosed sterile dust-proof design meets high hatching standards, and linkage with environmental and water systems strictly matches breeder breeding timing of mating, feeding and drinking. It realizes fully automatic low-breakage and high-hygiene hatching-egg collection to ensure embryo activity, delivering a breeding-grade intelligent egg-collection solution for large-scale meat-breeder farms.

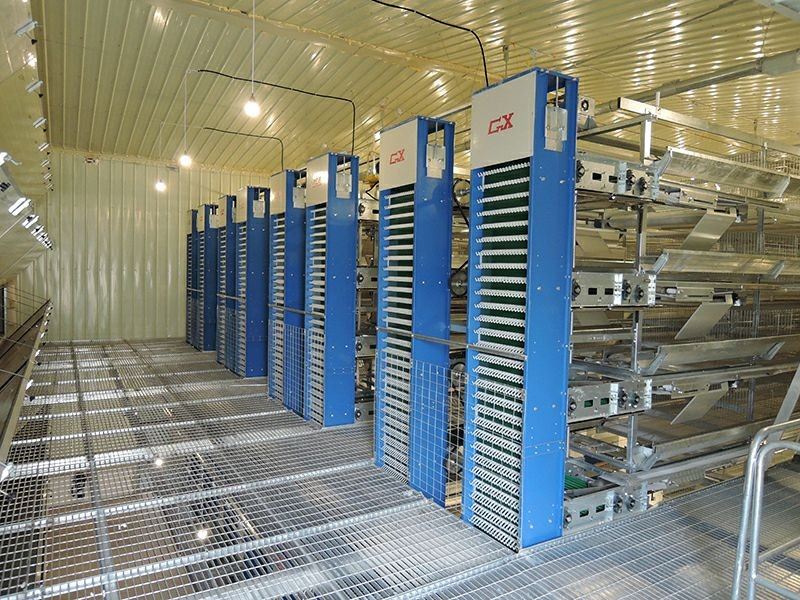

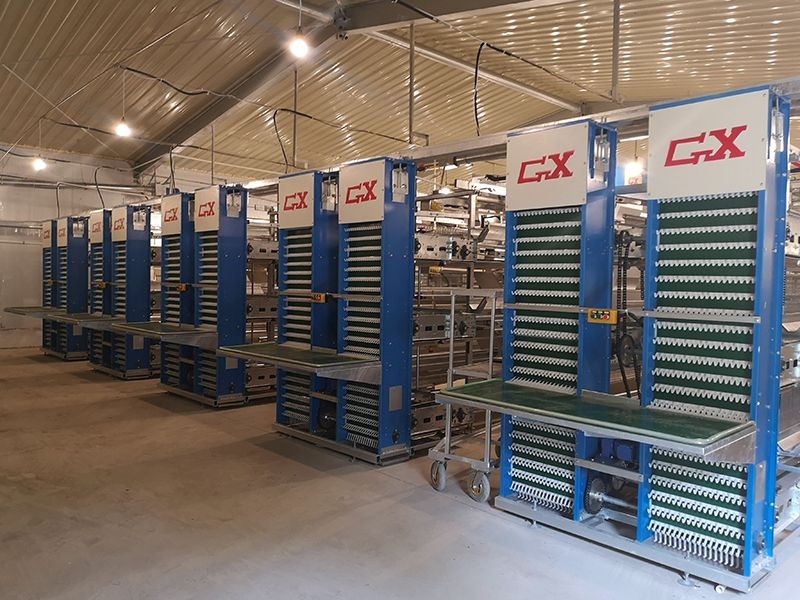

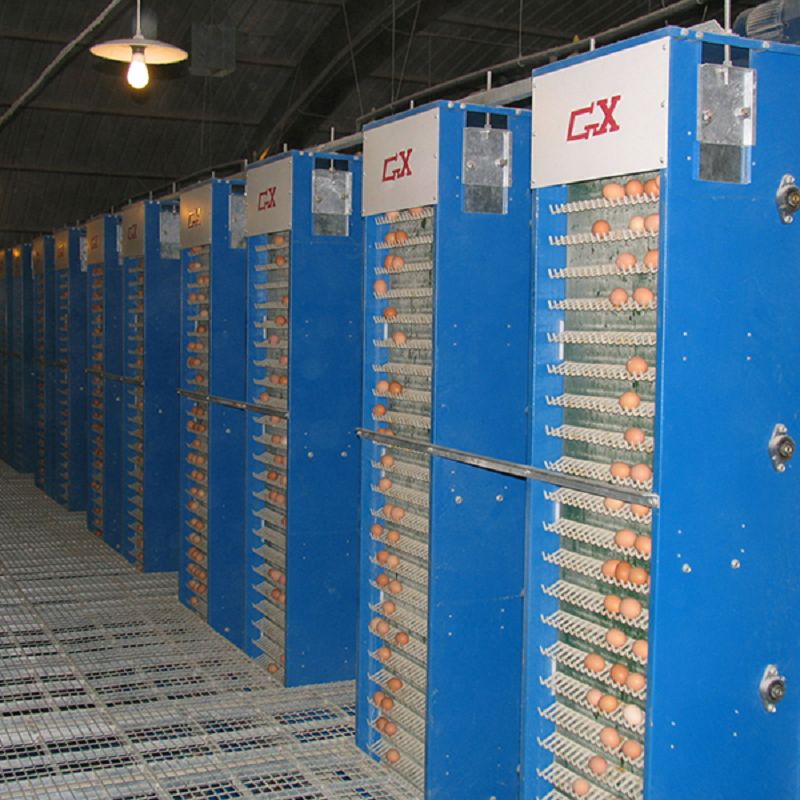

Egg Collecton System

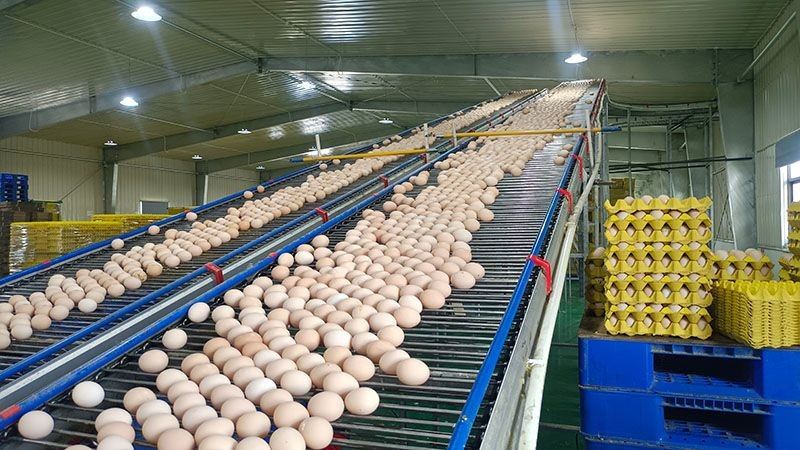

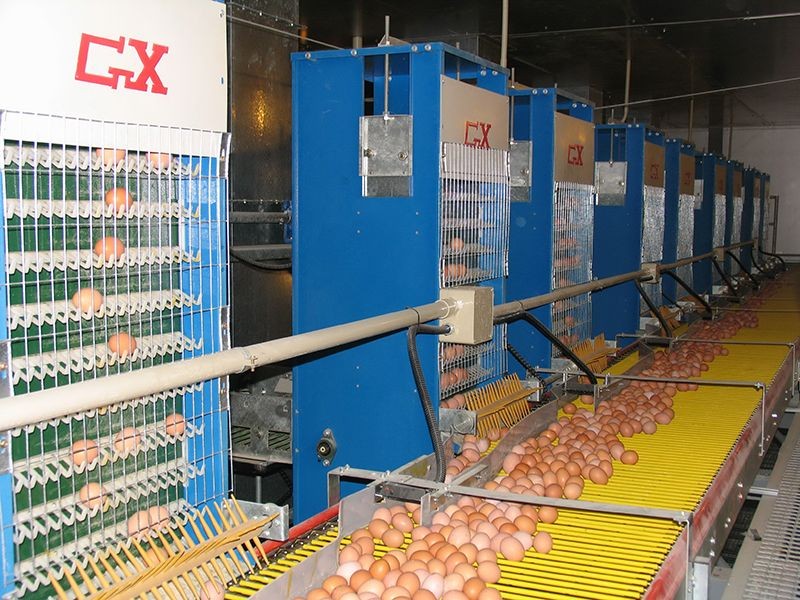

Central Egg Conveyor System

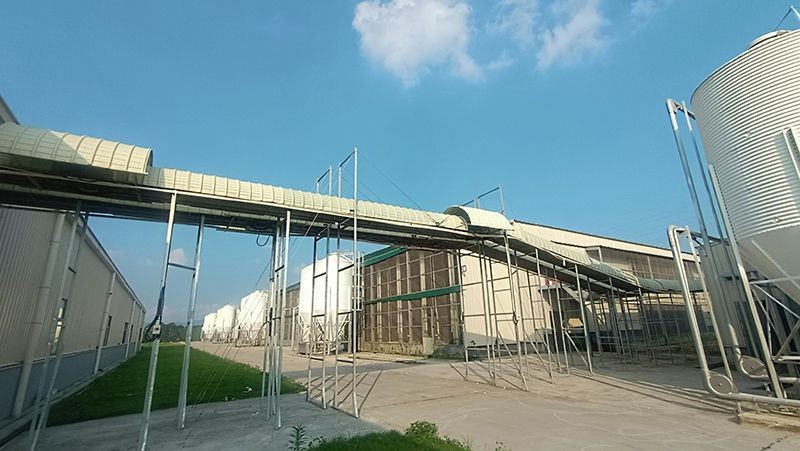

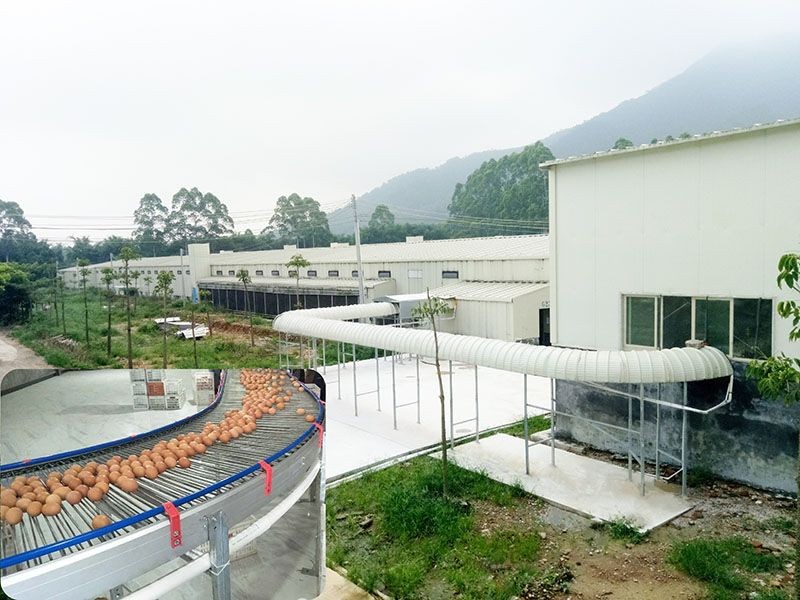

Outdoor Central Egg Conveyor
Product specifications
|
Parameter Item |
Detailed Specification |
|
Applicable Rearing Mode |
Match multi-tier cage‑reared meat‑type broiler for hatching-egg collection |
|
System Core Components |
Widened thickened egg troughs, peck-proof belts, low-speed elevators, hatching-egg disinfection buffer, sealed main lines, breeding electric control system |
|
Longitudinal Conveying Speed |
0.12–0.18 m/s adjustable; main line 0.2–0.25 m/s, stable without egg rolling |
|
Egg Breakage Rate |
Breeding-grade standard with overall breakage rate ＜0.5% to protect embryo activity |
|
Core Materials |
Belt: food-grade flexible PVC; trough: hot-dip galvanized steel with flexible strips; elevator: thickened galvanized frame |
|
Linkage Mode |
Linked with 3-cabinet PLC environmental control system for timing synchronization with feeding, lighting and drinking |
|
Safety Protection |
Hatching-egg congestion warning, belt deviation alarm, peck-proof overload protection, power-off memory, emergency stop |
Product features and advantages
Features
1.Widened thickened egg troughs adapt to large broiler body size with sufficient space to prevent egg pecking and trampling.
2.Peck-proof wear-resistant belts with thickened anti-collision edges eliminate hatching-egg peck damage.
3.Sealed sterile main lines isolate ammonia, dust and bacteria to ensure hatching-egg hygiene.
4.Full-process intelligent coordination of feeding-drinking-lighting-egg collection improves fertilized-egg collection rate.
5..To fill up the blank in China through several years'research,we have developed the high quality automatic egg collecting system and the central egg collecting system,which have improved automation of raising equipment.
6..The system is easily operated,improving the raising efficiency and saving the Labor force,thus improving the raising performance of farms.
7.Eggs damaging rate is lower than 0.5%.
Advantages
1.[Low‑breakage Flexible Collection Improves Egg Value]
Breakage rate below 0.5% reduces 80% loss vs. manual picking, greatly improving qualified egg rate.
01
2.[ Multi-tier Precise Adaptability Releases Large‑scale Breeding Capacity]
Suitable for million‑bird meat‑breeder industrial parks.
02
3.[Fully-enclosed Dust‑proof Design Upgrades Egg Hygiene]
Isolates dust pollution to improve egg grade and premium value.
03
4.[Independent Per‑tier Drive Ensures Stable Operation]
Single‑tier faults do not affect overall system for large‑scale stable breeding.
04
5.[Full-automation Replaces Labor to Cut Overseas Breeding Base Costs Greatly]
Adapts to zhuhigh-end unmanned breeding modes.
05
Application scenarios
Hot-humid southern layer farms use dust-proof anti-corrosion systems to prevent summer mold pollution on eggshells.
Packaging and transportation
Breeding‑grade egg elevators and main conveying racks are independently packed in thickened solid‑wood export cases. Peck‑proof belts, breeding‑special strips and high‑precision sensors adopt anti-static vacuum moisture‑proof packaging. FCL/LCL sea freight and expedited air freight are available with complete export documents. Large cases are reinforced with angle steel with full‑process logistics tracking.
FAQ
Q：Will egg collection be chaotic with different breeding rhythms between cage tiers?
A：Independent pertier drive with adjustable speed precisely matches laying rhythm for synchronous collection.
Q：Is the egg breakage rate high during conveying?
A：Extremely low. Food‑grade flexible belts and anti‑collision strips keep breakage rate below 0.5%.
Q：Can it link with breeding environmental systems to match mating-laying cycles?
A：Precisely linked for automatic start-stop by breeding lighting timing to improve fertilized egg collection efficiency.
After-sales service
1.Provide customized linkage programming for egg-collection-water-environment-feeding systems matching clients' existing cage-rearing equipment.
2.Establish one-on-one after-sales files to track full-process operation and warn of faults for full-cycle stable egg collection.
