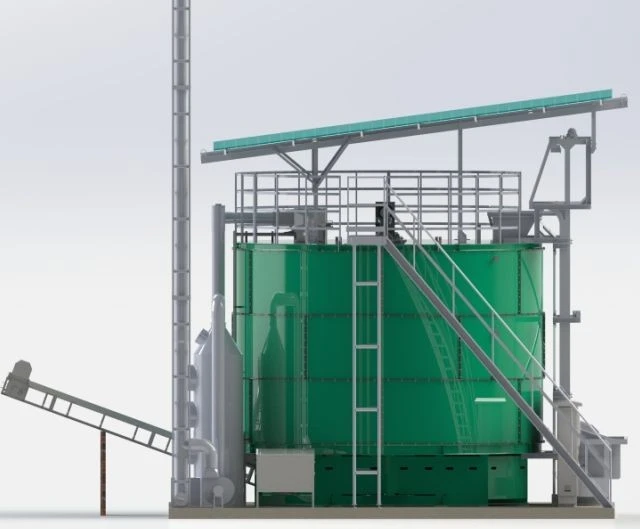

Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of kitchen waste fermentation tank in China. If you're going to buy durable kitchen waste fermentation tank made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Core feature: Designed based on the characteristics of kitchen waste
|
Harmless and complete |
High temperatures eliminate pathogens and eggs, meeting organic fertilizer hygiene standards |
|
Small in size of the area occupied |
The tank structure is compact and can save 90% of the land compared to traditional composting sites, making it suitable for urban industrial areas. |
|
24-hour continuous operation |
The design supports round-the-clock operation, has a large processing capacity, and meets the processing requirements after centralized collection and transportation. |
|
Compliant with environmental protection standards |
Sealed fermentation + odor removal system, avoiding complaint about odors and environmental penalties |
The pre-treated kitchen waste is subjected to high-temperature fermentation for degradation, reduction in volume, odor removal, and the production of organic fertilizers or soil improvers.
Due to the high organic content and perishable nature of kitchen waste, this fermentation tank performs exceptionally well in terms of energy consumption control, corrosion prevention and odor removal, meeting the environmental protection and efficiency requirements for kitchen waste treatment.
|

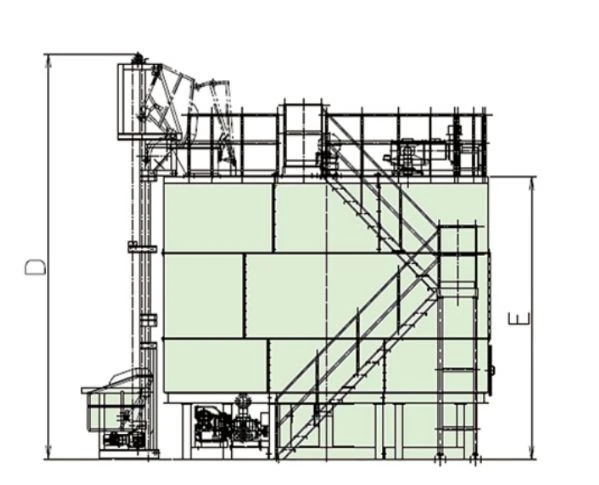

Model Size |
A |
B |
C |
D |
E |
F |
G |
H×I Installation dimensions |
|
11FFG-100 |
6060 |
4510 |
7540 |
7205 |
5005 |
2800 |
4600 |
8000×8500 |
|
Model Size |
Frequency |
Chamber volume |
Chamber volume |
Upper air supply |
Lower air supply |
Deodorization |
Emergency heater |
|
Hz |
m3 |
kW |
kW |
kW |
kW |
kW |
|
|
11FFG-100 |
50 |
100 |
7.5 |
2.2 |
15 |
3.75 |
6.99 |
Energy conservation and heat energy recovery, reducing operational costs for kitchen waste treatment:
The operating power is as low as approximately 21kW. Combined with digital frequency conversion regulation, it can adapt to the multi-stage temperature requirements of kitchen waste fermentation;the heat exchange system not only recovers heat but also achieves initial dust removal, balancing energy conservation and environmental protection, effectively controlling the electricity cost for kitchen waste treatment.
The stainless steel fully anti-corrosion design is suitable for the complex components of kitchen waste:
The core components such as the main shaft, blades, and fan are all fully covered with stainless steel, which can resist the corrosion caused by kitchen waste, avoid damage to the components and an increase in stirring resistance, extend the service life of the equipment, and reduce maintenance costs
Efficient processing and deodorization, stable production of high-quality organic fertilizer:
Through the efficient ventilation system and special bacteria strains, a high-temperature fermentation environment can be quickly formed, enabling the rapid degradation of kitchen waste; the deodorization system operates stably, reducing the leakage of odors, and the fermentation process can effectively retain organic matter nutrients, resulting in the produced products that can be directly used as organic fertilizer or soil amendment, achieving a resource recycling closed-loop for kitchen waste.
Advantages and characteristics of each system of the fermentation tank
Heat exchange system
Utilizes the fermentation heat in organic waste and fresh air for heat exchange
Annual energy savings and power reduction of 46,000 kW
Design is more space-efficient and aesthetically pleasing
Includes an initial dust removal function
Centralized odor removal system
Directly connected to the exhaust outlet of the tank for centralized odor removal. The management is simple and effective, with relatively low investment.
Corrosion-resistant submersible water pump, stainless steel 304 exhaust fan (long-lasting)
According to the farm's needs, multiple applicable odor removal solutions are provided.
Tank body and barrel body
Three-layer eighteen-equal-part structure tank body
The inner wall is made of 304 stainless steel, reducing friction and ensuring durability
Polyurethane + aluminum thermal insulation film double-layer insulation
Good insulation performance, unaffected by the temperature of the outside air
High-efficiency energy-saving aeration fan
Energy-saving Roots blower (lower blower), industrial type, with large air volume and high pressure, stable performance, air is sent out simultaneously from both the top and bottom
Upper part: 2.2kW × 1 unit
Lower part: 15kW × 1 unit
Variable-frequency adjustment from 30Hz to 50Hz

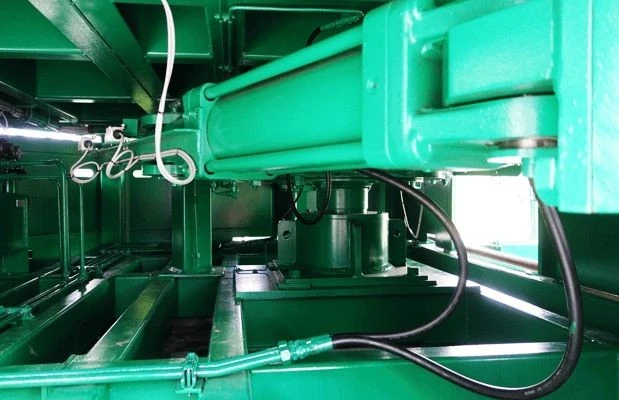

Special-designed hydraulic drive unit
The hydraulic drive unit, with a power of 7.5kW, can generate a large thrust
It features effective overload protection and energy-saving features
Pump: Liebherr
Electromagnetic valves, etc.: Liebherr
Power motor unit: ABB or Siemens

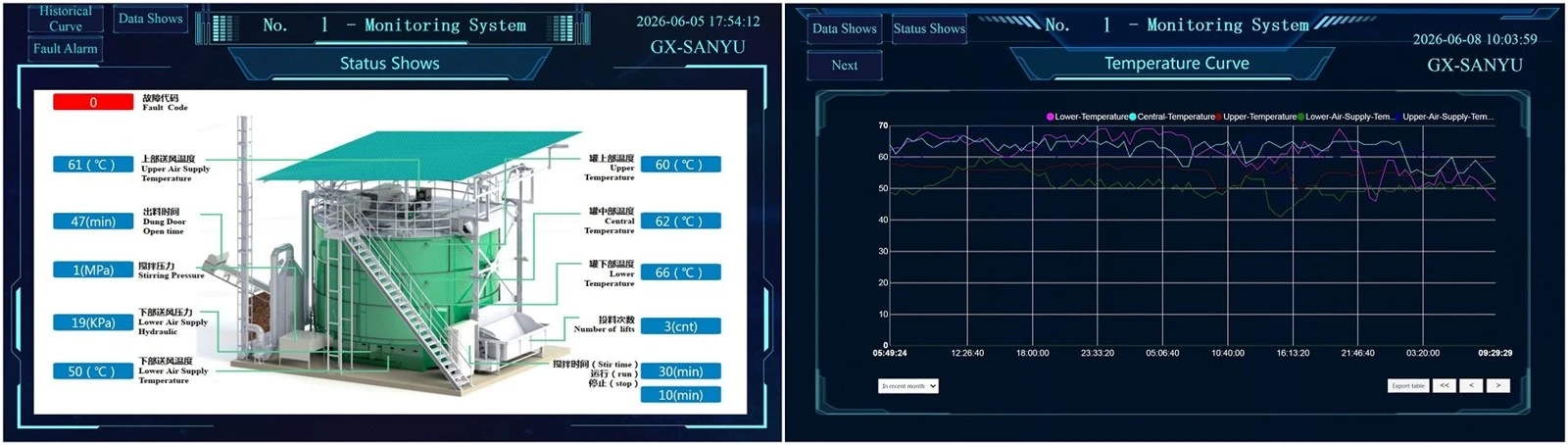

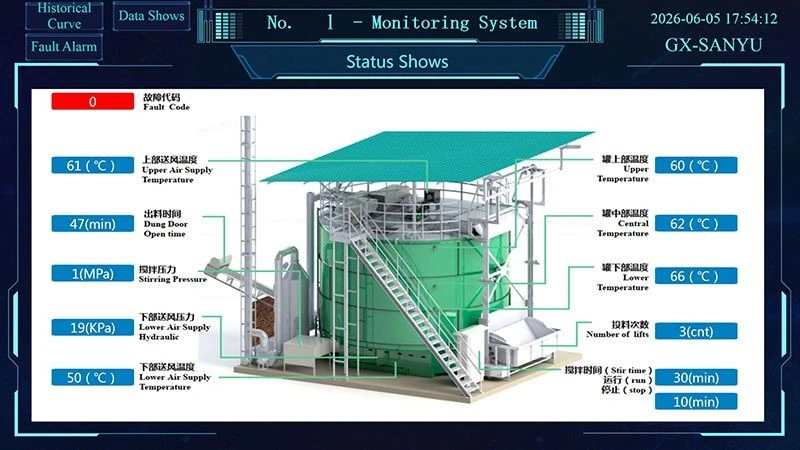

Digital Internet of Things (IOT)
The mobile APP provides real-time remote monitoring, allowing you to check the equipment status anytime and anywhere.
Multiple devices can automatically switch for real-time screen projection, facilitating management, providing a better user experience, data collection and integration, and enabling the iteration of more optimal fermentation operation data.
Realize the true "cloud-based intelligent future agriculture, data empowering ecological breeding".
