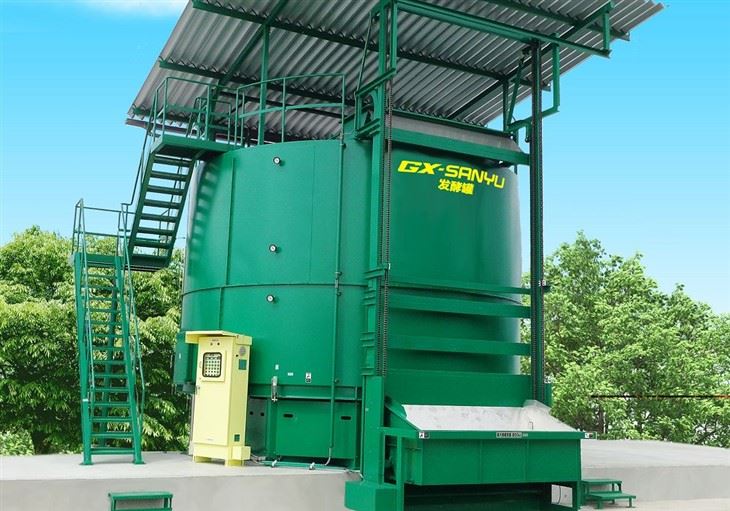

Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of high-temperature aerobic fermentation tank in China. If you're going to buy durable high-temperature aerobic fermentation tank made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Core features: High-temperature fermentation environment, up-and-down air supply system, heat energy recovery, variable frequency control, rapid fermentation
|
Thermal control system |
Heat exchange system, recovers waste heat from fermentation process, saves approximately 46,000 kW of electricity per year, maintains the fermentation environment inside the tank |
|
Compact & aesthetic design with primary dust removal |
|
|
Oxygen supply system |
Simultaneous top & bottom air supply for uniform distribution |
|
High-efficiency Roots blower |
|
|
Fermentation environment |
Digital VFD control adapts to multi-stage fermentation, ensuring optimal results |
|
Rapidly establishes high-temp environment, maintains efficient fermentation long-term |
Utilizing high-temperature aerobic microorganisms to rapidly decompose organic matter, achieving harmless treatment and resource utilization.
The core advantages of this high-temperature aerobic fermentation tank lie in its ability to efficiently decompose organic matter while ensuring long-term stable operation and low operating costs.
|

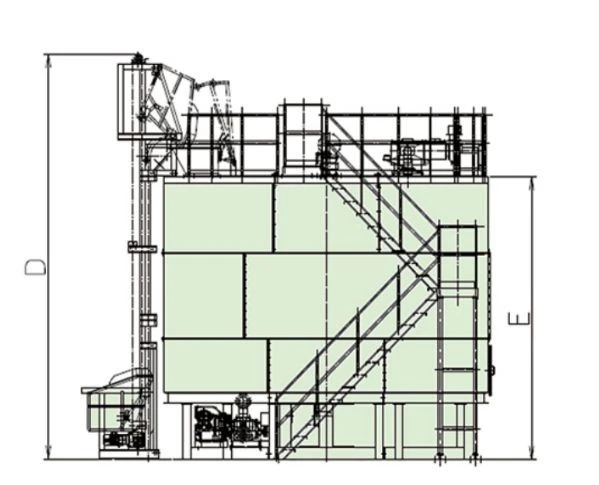

Model Size |
A |
B |
C |
D |
E |
F |
G |
H×I Installation dimensions |
|
11FFG-100 |
6060 |
4510 |
7540 |
7205 |
5005 |
2800 |
4600 |
8000×8500 |
|
Model Size |
Frequency |
Chamber volume |
Chamber volume |
Upper air supply |
Lower air supply |
Deodorization |
Emergency heater |
|
Hz |
m3 |
kW |
kW |
kW |
kW |
kW |
|
|
11FFG-100 |
50 |
100 |
7.5 |
2.2 |
15 |
3.75 |
6.99 |
Outstanding energy-saving and consumption reduction performance:
The operating power is approximately 21 kW, significantly reducing electricity consumption compared to traditional equipment;a thermal energy exchange system is provided, which can recover fermentation heat, optimizing the tank environment and further saving electricity costs. The annual electricity savings are significant.
High durability and reliability:
Key components such as the main shaft and blades are made of full stainless steel, resistant to corrosion and anti-adhesion, significantly reducing the resistance of stirring and wear;core hydraulic and electrical components all use international first-line brands, combined with multi-point fault alarm and pressure relief protection design, the failure rate is very low.
Good processing efficiency and resource utilization effect:
Relying on multi-system coordinated control and dedicated fermentation processes, it can quickly form and maintain a high-temperature aerobic environment, achieving efficient and harmless decomposition of organic matter;the stable fermentation environment ensures the processing volume and output quality, helping the project quickly achieve resource utilization and return on investment.
Advantages and characteristics of each system of the fermentation tank
Heat exchange system
Utilizes the fermentation heat in organic waste and fresh air for heat exchange
Annual energy savings and power reduction of 46,000 kW
Design is more space-efficient and aesthetically pleasing
Includes an initial dust removal function

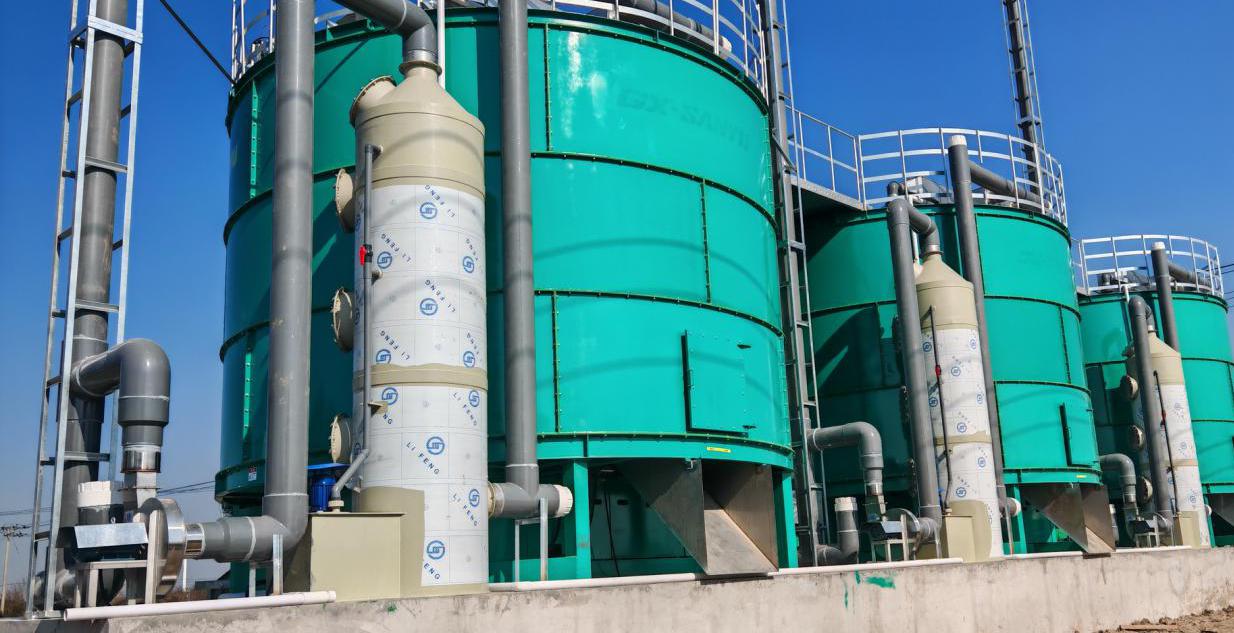

Centralized odor removal system
Directly connected to the exhaust outlet of the tank for centralized odor removal. The management is simple and effective, with relatively low investment.
Corrosion-resistant submersible water pump, stainless steel 304 exhaust fan (long-lasting)
According to the farm's needs, multiple applicable odor removal solutions are provided.

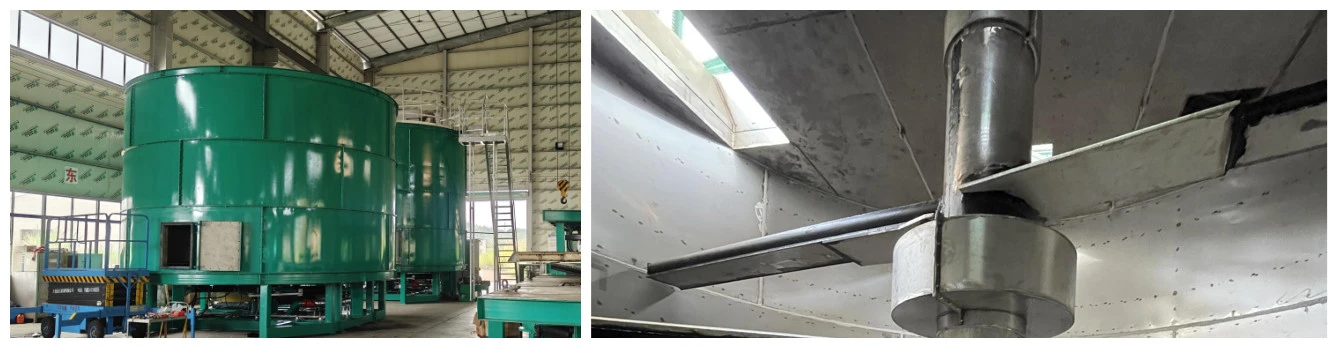

Tank body and barrel body
Three-layer eighteen-equal-part structure tank body
The inner wall is made of 304 stainless steel, reducing friction and ensuring durability
Polyurethane + aluminum thermal insulation film double-layer insulation
Good insulation performance, unaffected by the temperature of the outside air

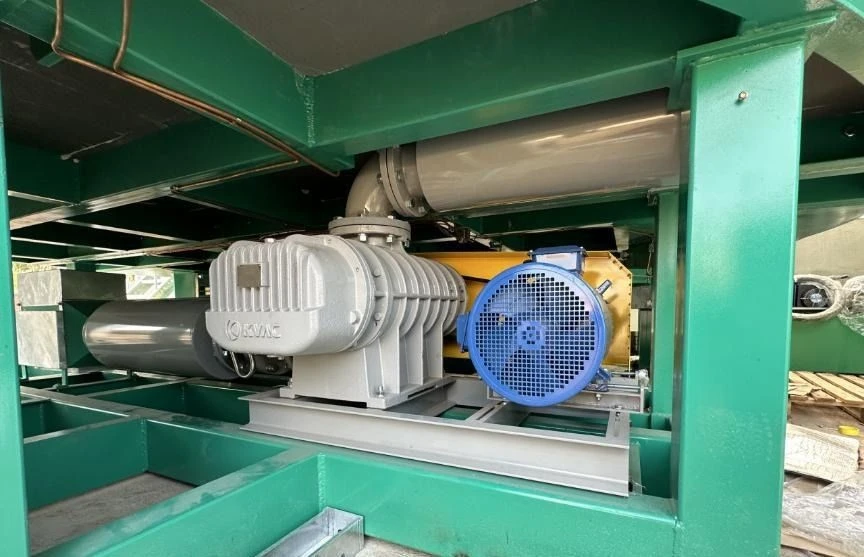

High-efficiency energy-saving aeration fan
Energy-saving Roots blower (lower blower), industrial type, with large air volume and high pressure, stable performance, air is sent out simultaneously from both the top and bottom
Upper part: 2.2kW × 1 unit
Lower part: 15kW × 1 unit
Variable-frequency adjustment from 30Hz to 50Hz

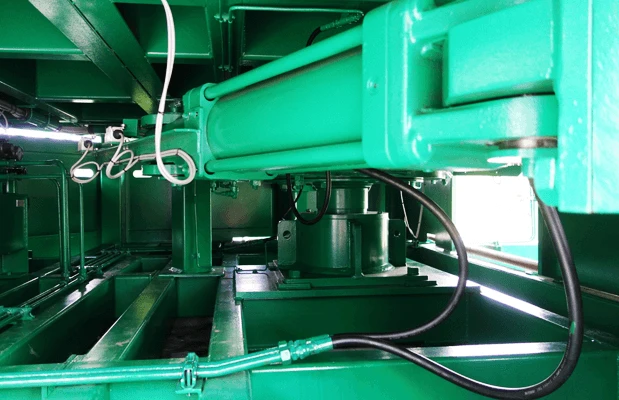

Special-designed hydraulic drive unit
The hydraulic drive unit, with a power of 7.5kW, can generate a large thrust
It features effective overload protection and energy-saving features
Pump: Liebherr
Electromagnetic valves, etc.: Liebherr
Power motor unit: ABB or Siemens

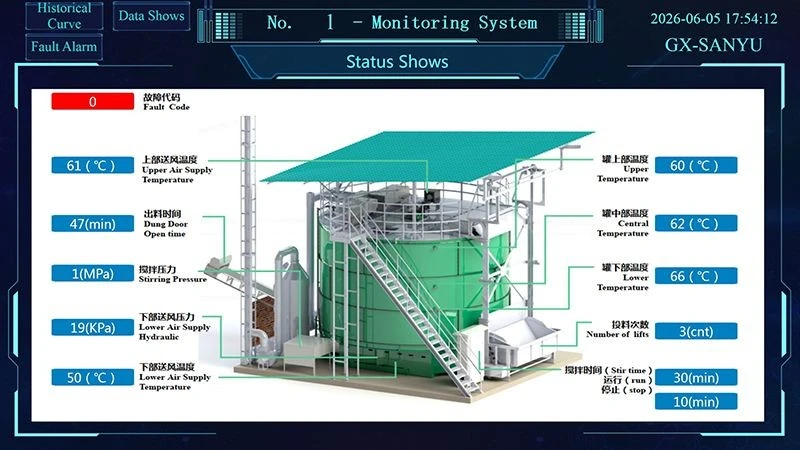

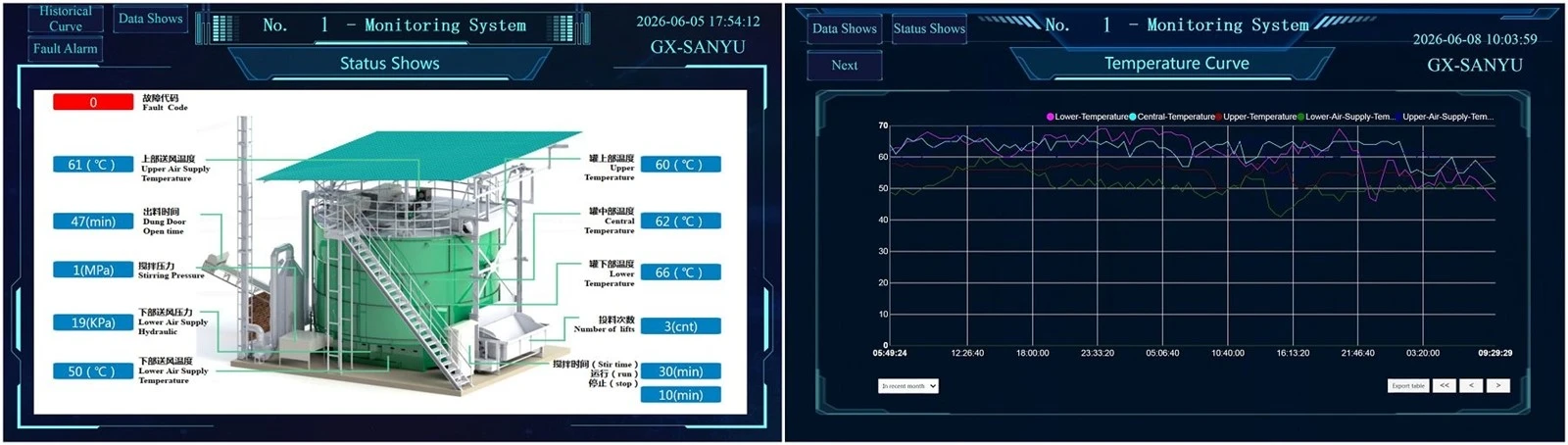

Digital Internet of Things (IOT)
The mobile APP provides real-time remote monitoring, allowing you to check the equipment status anytime and anywhere.
Multiple devices can automatically switch for real-time screen projection, facilitating management, providing a better user experience, data collection and integration, and enabling the iteration of more optimal fermentation operation data.
Realize the true "cloud-based intelligent future agriculture, data empowering ecological breeding".
