Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of a frame broiler battery cage in China. If you're going to buy durable a frame broiler battery cage made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.

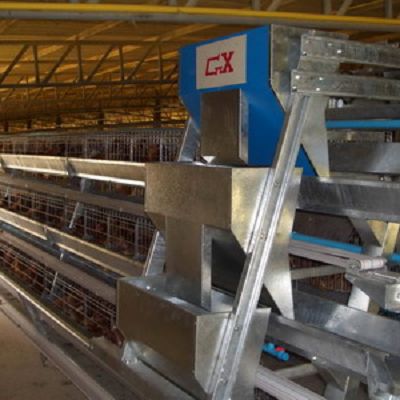

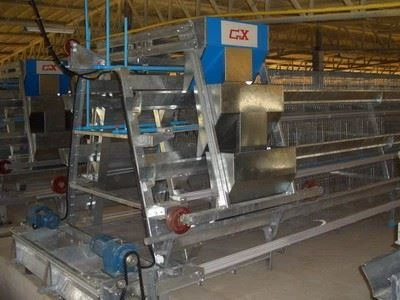

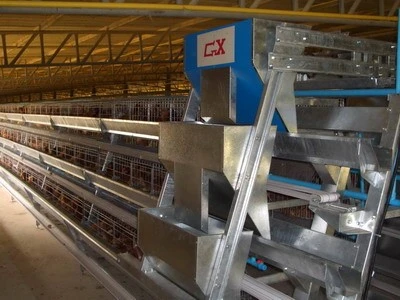

Product Name：Step-type Traveling Feeding Automatic Broiler Breeding Equipment
Basic Parameters of the Product：
|
Cage size |
Unit(mm) |
|
Length |
1000×2=2000 |
|
Depth |
500 |
|
Height |
420 |
|
Area of per bird |
500cm²/bird |
|
Birds in one cage |
10birds/cage |
Feature
(1)Simple structure, easy installation and operation, saving labor costs;
01
(2)Uniform feeding, fresh air, favorable breeding environment and low mortality and culling rate;
02
(3)Automatically controlled by the control system with low failure rate and fewer maintenance personnel, saving maintenance costs;
03
(4)Low energy consumption operation, saving over 20% electricity and reducing breeding expenses;
04
(5)Convenient for epidemic prevention management, effectively improving the prevention and control capacity of avian influenza and other poultry diseases, enhancing breeding quality and bringing high economic benefits to farmers.
05
Advantage
(1) Cage Frame
The bottom net of the broiler cage is made of high-strength, high-elasticity premium materials, designed to ensure comfortable walking for chickens. The broiler cage door adopts a push-pull structure, which is easy to open, prevents chickens from escaping, and avoids feed splashing when chickens raise their heads during feeding. Equipped with adjustable feeding baffles, it can prevent chicken escape and flexibly adjust the feeding height to meet the feeding needs of chickens at different ages. The cage depth is 500mm, making chicken catching convenient. The large cage bed area provides ample space for flocks to move inside the cage.
(2) Material Conveying and Feeding System
The whole process of material conveying and feeding operates fully automatically, improving the stability and reliability of automatic control.
(3) Automatic Drinking Water System
The water supply system is equipped with a filter, intelligent water meter, medicator and pressure reducing regulator. The digital data from the intelligent water meter enables monitoring of the daily water intake of the flock and assessment of their health status.
(4) Automatic Ventilation and Cooling System
According to local climatic conditions, the automatic ventilation and cooling system supports multiple control modes to meet the requirements of automatic cooling, air exhaust and air exchange. The large middle space of the stepped structure is conducive to ventilation and temperature reduction.
▼(1) Large-scale Broiler Farms
Relying on the equipment's easy operation, labor saving and high efficiency, it reduces labor input and adapts to centralized large-scale broiler breeding. It solves the problems of labor-intensive manual feeding and cumbersome management in traditional breeding.
▼(2)Small and Medium-sized Family Farms
The equipment features simple installation and operation without the need for professional technicians. It is suitable for family farms with medium breeding scale, meeting the demands of easy management and income growth, and lowering the management threshold for small and medium breeders.
(3)Farms in High-altitude / Hot and Rainy Areas
With automatic ventilation and low-energy design, it can flexibly adjust the internal cage environment, resist the impact of extreme climates on broiler growth, save power consumption and control breeding costs.
(4)Standardized Farms with High Epidemic Prevention Requirements
Taking advantage of the equipment's convenience for epidemic prevention management, it reduces frequent human contact with flocks, improves the prevention and control capability of avian influenza and other poultry diseases, and complies with the epidemic prevention specifications of standardized breeding.
(5)Long-term Large-scale Breeding Bases
The equipment has a low failure rate and easy maintenance with remarkable energy-saving effect. Long-term application can greatly reduce labor, maintenance and energy consumption costs, meeting the needs of bases for long-term stable breeding and high-efficiency profit.
FAQ
(1)Question: What if feeding is uneven or some cages have no feed during traveling feeding?
Answer: First, check and clean blockages at the feeding machine discharge outlet. Second, check whether the traveling speed is steady; adjust the speed via the control system to match feed output with traveling movement. Finally, ensure sufficient feed in the hopper without caking; replenish feed in a timely manner and break up lumps to guarantee even feeding.
(2)Question: The equipment's energy consumption suddenly rises and exceeds the 20% energy-saving standard. What are the causes?
Answer: There are three common causes and solutions:
① The filter screen of the ventilation system is clogged, increasing fan load; clean the screen regularly.
② Unreasonable parameter settings of the control system; restore default energy-saving parameters or adjust operating frequency according to breeding scale.
③ Worn parts such as traveling wheels and motor bearings; inspect worn components and lubricate or replace them in time to reduce operating resistance.
(3)Question: The intelligent control system malfunctions and the equipment cannot run automatically. How to deal with it?
Answer: Turn off the main power supply first, wait 5–10 minutes, then restart the control system. If it still fails, check for loose or poorly connected control wires and fasten all interfaces. If the wiring is normal, check the error code on the display screen and troubleshoot according to the equipment manual. Do not disassemble the equipment privately; contact after-sales personnel for on-site maintenance.
(4)Question: The flock shows abnormal feed and water intake. Is it related to the equipment? How to troubleshoot?
Answer: It may be equipment-related. Follow these steps:① Check whether the feeding system discharges normally and ensure the feed is not moldy or odorous.② Check water consumption data from the intelligent water meter; inspect the drinking water system for clogged filters and malfunctioning medicators to ensure clean water and stable water pressure.③ Check the operation status of the ventilation system to keep fresh air and suitable temperature inside the cages. After excluding equipment faults, further check the health status of the flock.
(5)Question: How to avoid component damage even with low maintenance frequency?
Answer: Although the equipment has a low failure rate and easy maintenance, regular basic upkeep is required:② Clean dirt and scale from the feeding and drinking systems every week, and check the traveling track for foreign objects.② Lubricate rotating parts such as motors and bearings every month, and inspect line insulation performance.③ Fully check control system parameters every quarter, calibrate intelligent water meters and ventilation sensors to prevent aging damage and extend equipment service life.
(6)Question: Poor ventilation and cooling effect when used in high-altitude areas. How to adjust?
Answer: According to the air pressure and temperature characteristics of high-altitude areas, make adjustments in two ways:① Switch the ventilation system to a proper control mode, increase the running frequency and duration of fans to boost air volume.② Ensure the middle ventilation space of the stepped cage is free from obstruction; appropriately adjust cage spacing to improve air circulation and maintain a suitable growth environment for broilers.
