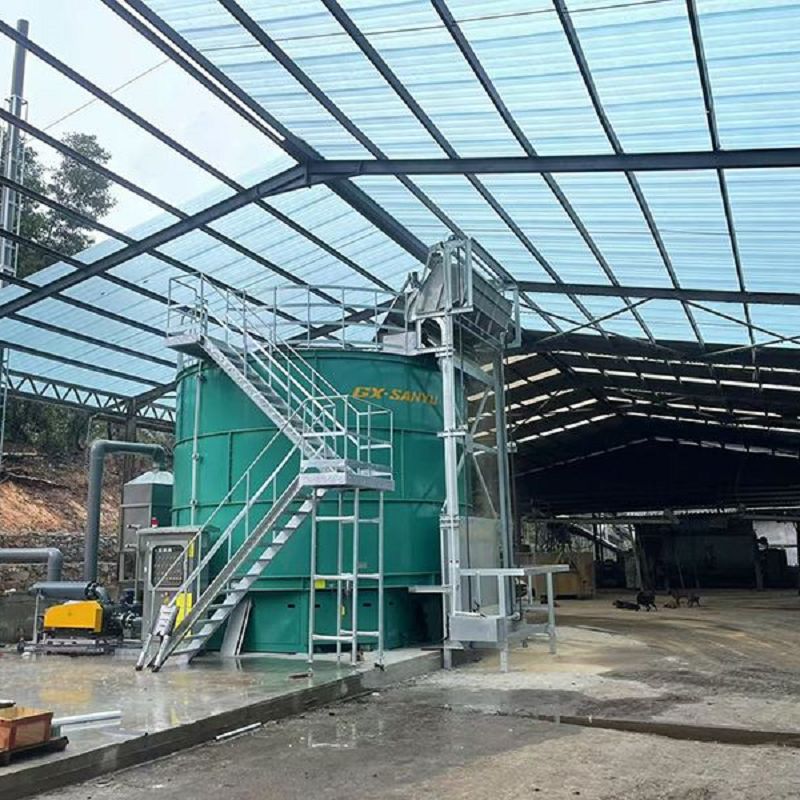

Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of livestock manure fermentation tank in China. If you're going to buy durable livestock manure fermentation tank made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Core feature: Designed based on the characteristics of livestock and poultry manure (able to adapt to different moisture contents, rapid fermentation, high-temperature pathogen elimination, and centralized odor removal)
|
Anti-corrosion design |
The main shaft and blades are fully covered with stainless steel 304. The fan blade reinforcement plates are also made of stainless steel 304 (with the best anti-corrosion performance). The stirring resistance is low, saving the stirring time. |
|
(vs. competitors' carbon steel: prone to corrosion, chicken manure adhesion, increasing resistance) |
|
|
Deodorization system |
Antifreeze liquid submersible pump, stainless steel 304 exhaust fan (long-lasting and durable) |
|
It can effectively form an adsorption gas layer to absorb ammonia gas and volatile substances generated during fermentation. |
|
|
Nutrient retention |
During the fermentation process, it is capable of effectively retaining more organic matter nutrients. |
|
Energy production design |
Achieve the effect of large processing capacity and large discharge volume. |
It is specifically designed for the fermentation treatment of livestock and poultry manure, converting it into high-quality organic fertilizer, reducing pollution and achieving resource recycling.
For the livestock and poultry manure treatment scenarios, this fermentation tank has been specially optimized for corrosion resistance and continuous stable operation, and is suitable for the environmental requirements of the breeding environment.
|

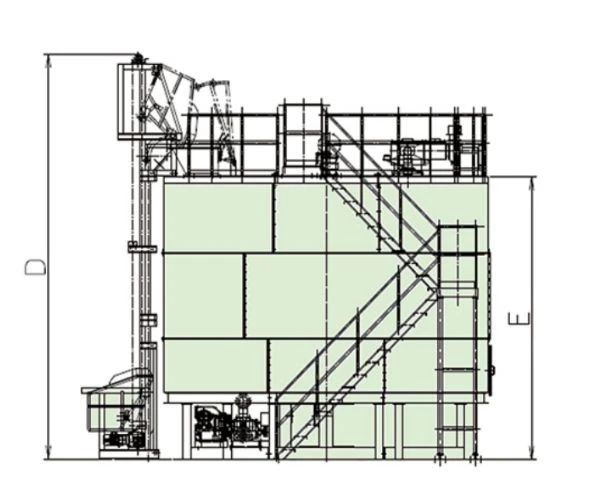

Model Size |
A |
B |
C |
D |
E |
F |
G |
H×I Installation dimensions |
|
11FFG-100 |
6060 |
4510 |
7540 |
7205 |
5005 |
2800 |
4600 |
8000×8500 |
|
Model Size |
Frequency |
Chamber volume |
Chamber volume |
Upper air supply |
Lower air supply |
Deodorization |
Emergency heater |
|
Hz |
m3 |
kW |
kW |
kW |
kW |
kW |
|
|
11FFG-100 |
50 |
100 |
7.5 |
2.2 |
15 |
3.75 |
6.99 |
Corrosion-resistant and low-resistance design, suitable for manure characteristics:
The main shaft blades, water pumps, fans, etc. that come into contact with the manure are made of stainless steel, which solves the problems of carbon steel components being prone to corrosion and increased stirring resistance due to fecal adhesion. It can maintain low energy consumption and high efficiency even during long-term operation.
Low failure rate, high durability, suitable for continuous operation in breeding scenarios:
The key drive, hydraulic and electrical components adopt internationally leading brands, and are equipped with a multi-point fault precise alarm system, which can quickly locate and solve problems; The bottom air supply and exhaust system is designed reasonably, ensuring the equipment can operate continuously throughout the year and reducing the risk of downtime during the peak breeding season.
High production capacity + nutrient retention, achieving efficient resource utilization of manure:
The equipment can handle large volumes of materials and produce large amounts of output, with processing efficiency far exceeding that of ordinary equipment; the tank fermentation process can effectively decompose livestock and poultry manure, reduce nutrient loss, and the fermentation products have stable fertilizer efficacy, helping livestock farms quickly achieve reduction, harmless treatment and resource utilization of manure, and reducing environmental pressure.
Advantages and characteristics of each system of the fermentation tank
Heat exchange system
Utilizes the fermentation heat in organic waste and fresh air for heat exchange
Annual energy savings and power reduction of 46,000 kW
Design is more space-efficient and aesthetically pleasing
Includes an initial dust removal function

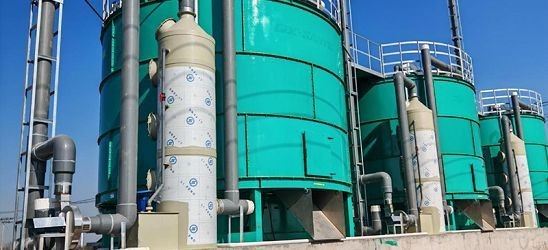

Centralized odor removal system
Directly connected to the exhaust outlet of the tank for centralized odor removal. The management is simple and effective, with relatively low investment.
Corrosion-resistant submersible water pump, stainless steel 304 exhaust fan (long-lasting)
According to the farm's needs, multiple applicable odor removal solutions are provided.
Tank body and barrel body
Three-layer eighteen-equal-part structure tank body
The inner wall is made of 304 stainless steel, reducing friction and ensuring durability
Polyurethane + aluminum thermal insulation film double-layer insulation
Good insulation performance, unaffected by the temperature of the outside air

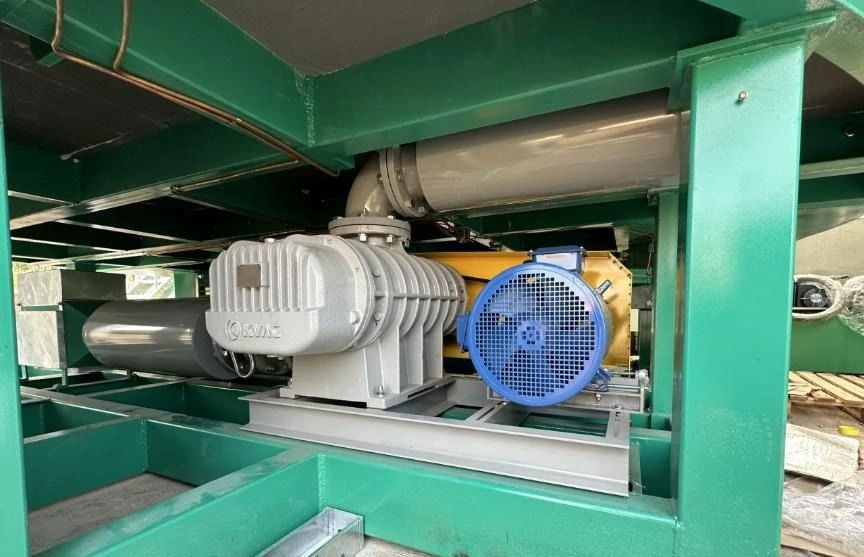

High-efficiency energy-saving aeration fan
Energy-saving Roots blower (lower blower), industrial type, with large air volume and high pressure, stable performance, air is sent out simultaneously from both the top and bottom
Upper part: 2.2kW × 1 unit
Lower part: 15kW × 1 unit
Variable-frequency adjustment from 30Hz to 50Hz

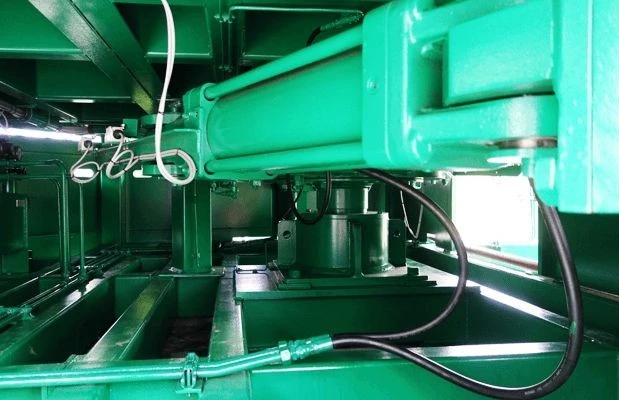

Special-designed hydraulic drive unit
The hydraulic drive unit, with a power of 7.5kW, can generate a large thrust
It features effective overload protection and energy-saving features
Pump: Liebherr
Electromagnetic valves, etc.: Liebherr
Power motor unit: ABB or Siemens

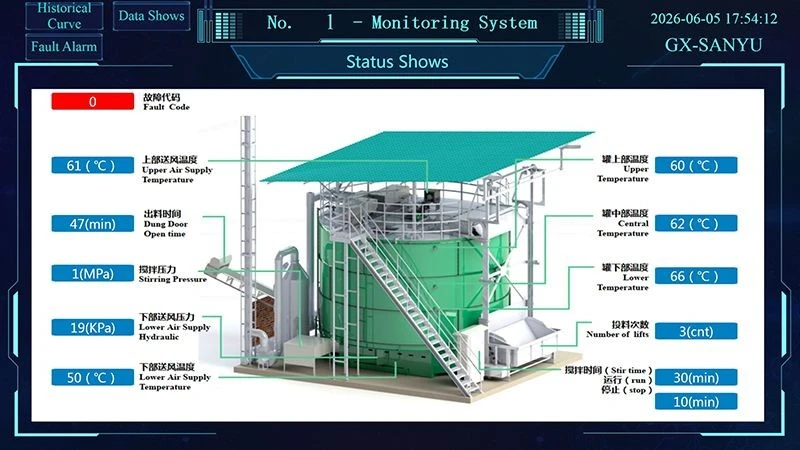

Digital Internet of Things (IOT)
The mobile APP provides real-time remote monitoring, allowing you to check the equipment status anytime and anywhere.
Multiple devices can automatically switch for real-time screen projection, facilitating management, providing a better user experience, data collection and integration, and enabling the iteration of more optimal fermentation operation data.
Realize the true "cloud-based intelligent future agriculture, data empowering ecological breeding".
