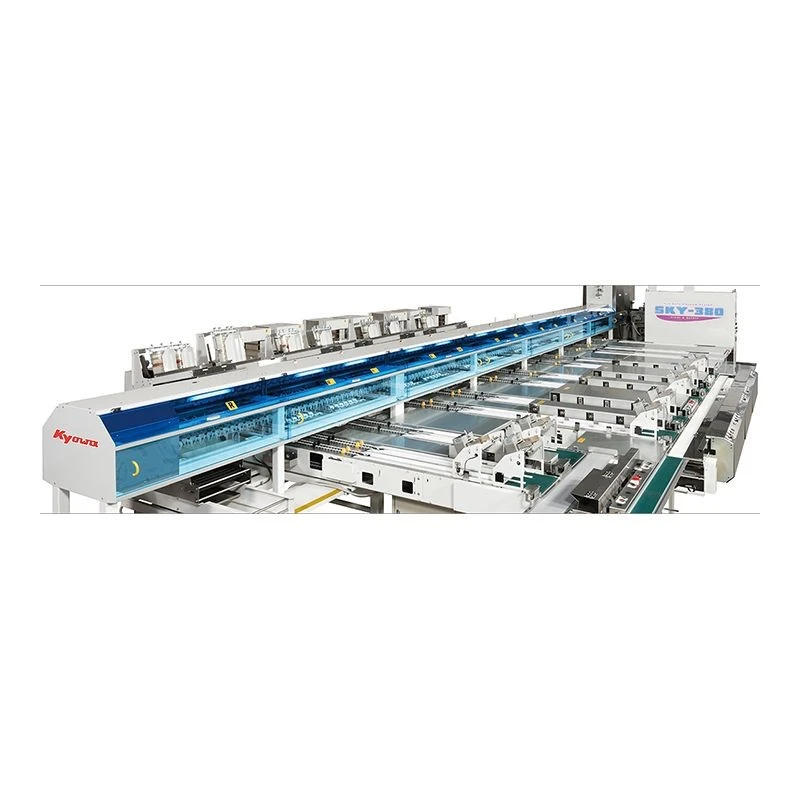

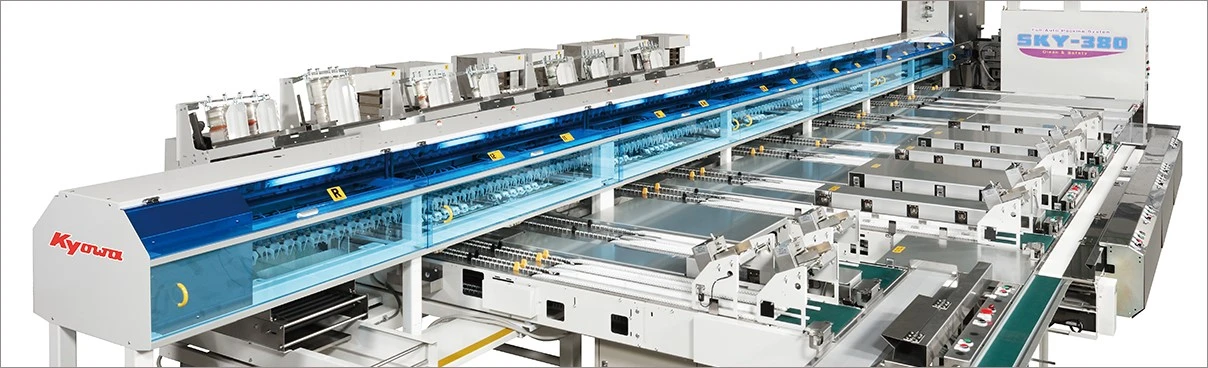

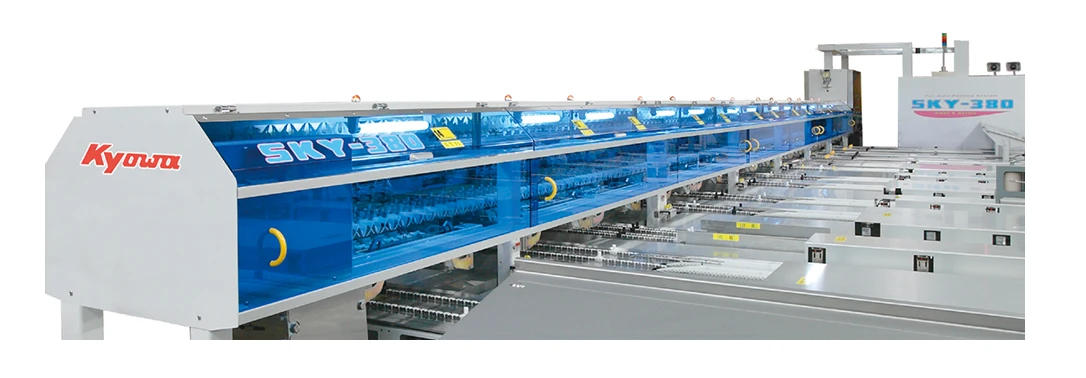

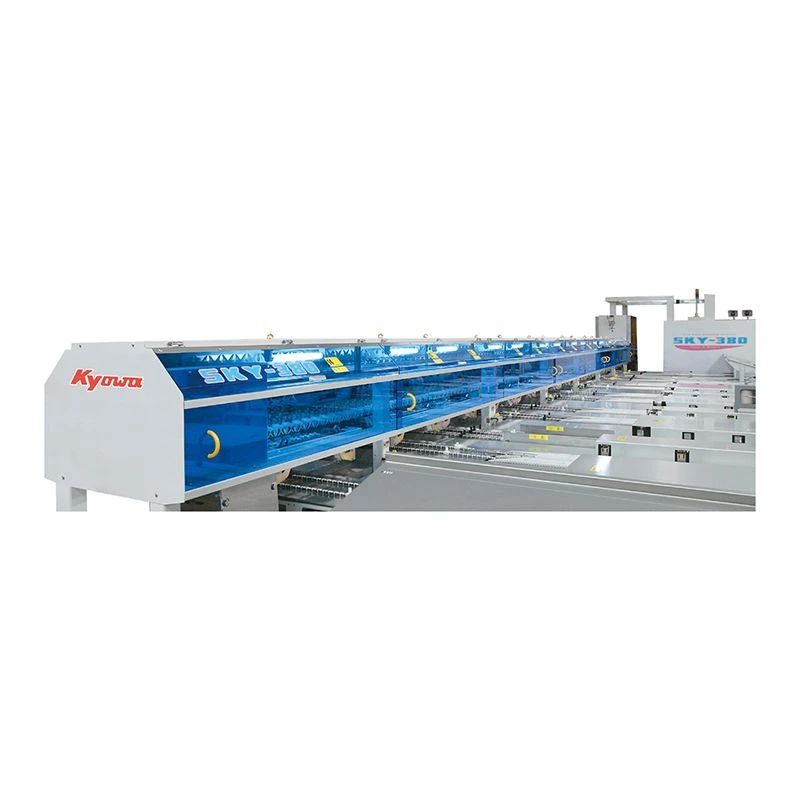

Product Name：SKY-380 Egg Washing, Grading, and Packaging Machine
SKY-380 is an advanced egg grading system setting the global standard for hygiene. The capacity is 38,000 eggs per hour and capable with good maintainability and structural robustness. Each system comes along with the world's first carrier cup-auto washing feature for ultimate sanitation, a newly designed packaging unit for maximum layout flexibility, and a washable weighing section resistant to daily cleaning; generating a synergistic contribution to customer's profit. A spacious underside and a hygienic stainless frame are available for the SKY-380.
Specifications
|
Type |
SKY-380 |
|
Processing speed |
38,000eggs/h |
|
Electric power |
3-Phase AC200V 26.5kW / Single-Phase AC100V 4.1kW |
|
Hot water supply |
12L/min(55-60°C) |
|
Water supply |
18L/min(for automatic washing) |
|
Air compressor |
90NL/min(0.6-0.9Mpa) |

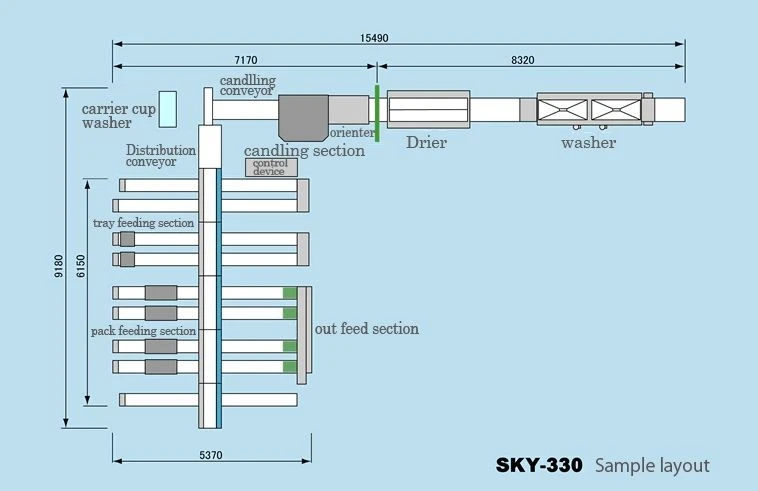

Sample Layout
Feature
(1)Requirements in step with the times：
In recent years, the hygienic management of the egg grader is becoming an important factor to improve safety basis and to secure quality control for the egg grading and packing process. The SKY series has the world's first built-in cleaning feature and it enables to clean in every day basis for every part of the system components which has physical contact with eggs while the system is in grading operation.
In 2008, this unique laborsaving technology and its sanitary design have been awarded by the Japan Society of Mechanical Engineers.
(2)Newly Designed Packing unit

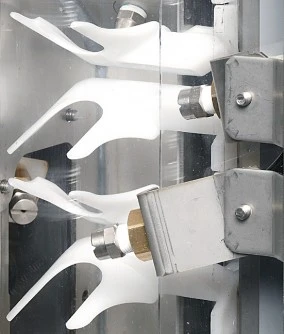

The SKY series has its egg hold units hang down from main frame, so that gives wider space and easier access for cleaning operation. The egg hold units gently slide downward to egg packs (or egg trays) and release the eggs smoothly and softly as possible.
(3)New CPU achieves easy and friendly control
It is foreseeable that the needs for handling a variety of packages at GP center will continue increasing for the future. SKY enhanced its pattern setting for the packaging lanes. Also, the improvement on the slip data and alert patterns enables easy and friendly control for the operators.
Advantages
(1)Industry's First Integrated Carrier Cup Self-Cleaning System
A typical grading system operates with hundreds of carrier cups, transporting hundreds of thousands of eggs daily, which inevitably leads to significant staining. Addressing this, the SKY series stands as the world's first egg grader featuring a built-in automatic cleaning system specifically for these cups. Crafted from a special antibacterial resin that naturally repels egg liquid, the cups can be thoroughly cleaned every day simply by selecting the 'Wash' option from the control panel.
(2)Proactive Sanitation for High-Risk Microbial Zones
Within the ecosystem of egg processing, the washer and dryer interiors represent the most critical hygiene checkpoint. Constant exposure to warmth, moisture, and organic matter makes these zones prime breeding grounds for bacterial proliferation. Relying on manual cleaning alone leaves too much room for human error and unseen biofilm accumulation.
The SKY series tackles this head-on with an optional fully automatic disinfection cleaning function. This system goes beyond a simple rinse, delivering a comprehensive sterilization cycle that targets every internal surface.
(3)Washable weighing Section
Precision is paramount in egg grading, and the SKY series weighing bridge is engineered to deliver just that. Constructed with fully waterproof load cell units, the system incorporates an intelligent automatic correction algorithm.
This feature actively filters out interference caused by machine vibrations or incidental particles, ensuring that every egg is weighed with pinpoint accuracy regardless of operational noise. Furthermore, maintaining this critical section is remarkably simple. The entire weighing area is designed to be fully washable. This allows operators to rinse down the scales quickly without risking water damage, maintaining optimal cleanliness with minimal effort and zero downtime.
(4)Washable candling Rollers
The egg candling section is the section to install the detection system for crack eggs, blood eggs or dirty eggs. For the SKY-G series, the automatic washing feature can be built-in at this section, so that enables to clean the rollers by simply selecting washing menu from control panel.
(5)Large Space under the Machine
SKY succeeded to obtain a larger space under the machine by re-examining the structure and device positions of the existing machines. By removing complicated parts, SKY has a higher resistance against dust and dirt. Also, the large space under the machine enable the operators to clean under the machine easily.
Application Scenarios
(1). High-Volume GP Centers (Grading & Packing Facilities)
With a robust processing speed of 38,000 eggs per hour, the SKY-380 is purpose-built for medium-to-large scale egg grading and packing centers. It serves as the operational heart for facilities that require continuous, high-throughput processing to meet the demands of regional supermarkets, food manufacturers, and wholesale distributors
(2). Facilities with Strict Food Safety & Hygiene Certifications
For markets with stringent food safety regulations (such as the EU, North America, or Japan), the SKY-380's hygiene design is its core competitive edge. Featuring the world's first carrier cup self-cleaning system and optional auto-disinfection for washers/dryers, this machine helps your plant effortlessly pass rigorous hygiene audits.
(3). Diverse Product Line Operations
As consumer demand diversifies, processing plants often need to handle various packaging types (trays, cartons) on the same line. The SKY-380 features enhanced pattern settings for packaging lanes and a user-friendly control system, allowing for rapid response to order changes and seamless format switching.
Packaging & Shipping
To ensure the safe delivery of the SKY-380 heavy-duty precision equipment, we adopt a modular knock-down packaging method using industrial-grade non-fumigation plywood cases that fully comply with international export standards.
①The machine is sectionalized into standalone functional units-specifically washing, grading, and packing-to streamline containerization and facilitate on-site reassembly.
②Constructed from waterproof plywood, the crates rely on their own reinforced framework to withstand transit shocks and impacts.
③Precision components (load cells, PLC, HMI) are vacuum-sealed in anti-static bags. Edges and fragile parts are cushioned with high-density shock-absorbing foam.
④Our space-efficient loading plan consolidates the entire production line and spare parts inventory into 2 x 40'HQ containers.
Delivery Process:
Pre-shipment Inspection:
Packing list, case photos, and customs declaration details provided 7 days prior to shipment.
Booking & Loading:
Arrange booking, customs declaration, and loading according to the chosen term (FOB/CIF).
Document Handover:
Provide full set of shipping documents (Bill of Lading, Invoice, Packing List, Certificate of Origin, etc.).
Arrival & Pickup
Assist the Buyer or agent with document exchange, customs clearance, and cargo pickup upon arrival.
FAQ
Q1: Cleaning hundreds of carrier cups has always been a pain point with traditional machines. How does the SKY-380 solve this?
A: The SKY-380 introduces the industry's first built-in self-cleaning system for carrier cups. We recognize that processing hundreds of thousands of eggs daily heavily soils the cups. Thanks to the special antibacterial and antifouling resin material, coupled with a one-touch auto-wash cycle, the machine autonomously performs deep cleaning of the cups during breaks or at shift-end, completely liberating your workforce.
Q2: The inside of washers and dryers is hot and humid, creating a breeding ground for bacteria. How do you counter this?
A: This is precisely why we developed the optional fully automatic foam disinfection function. These high-risk zones no longer rely on arduous manual scrubbing; instead, they undergo comprehensive sterilization via automated foam disinfectant spraying. This not only frees operators from hazardous cleaning tasks but also cuts off the pathway of bacterial cross-contamination at the source.
Q3: What if the rollers in the candling section get stained with blood or shell fragments?
A: No need to stop and disassemble. The SKY-380 integrates automatic roller washing technology within the candling section as well. Operators simply select the corresponding program on the control panel, and the rollers self-clean in an enclosed environment, ensuring the accuracy of crack and dirt detection remains uncompromised.
Q4: Is cleaning the underside of the machine troublesome?
A: Contrary to machines with cramped undercarriages, this is a deliberate design improvement. By optimizing the internal layout and eliminating unnecessary components, we have created a generously sized open space beneath the grader. This allows operators to stand upright and move freely underneath the equipment for cleaning, effectively eliminating hard-to-reach areas where dirt accumulates.
