Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of layer cage spraying system in China. If you're going to buy durable layer cage spraying system made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.

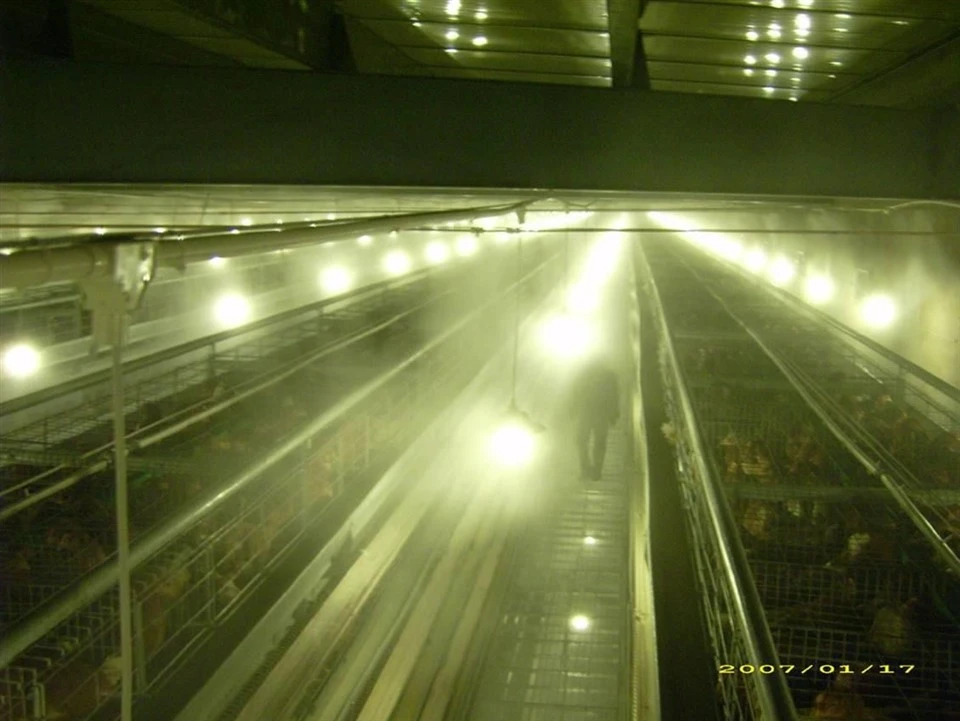

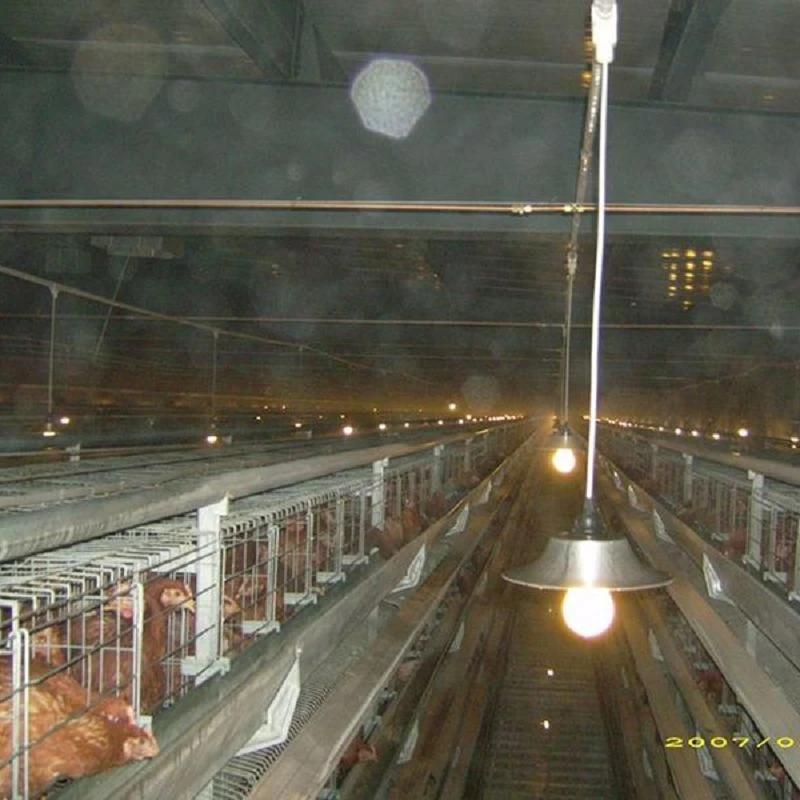

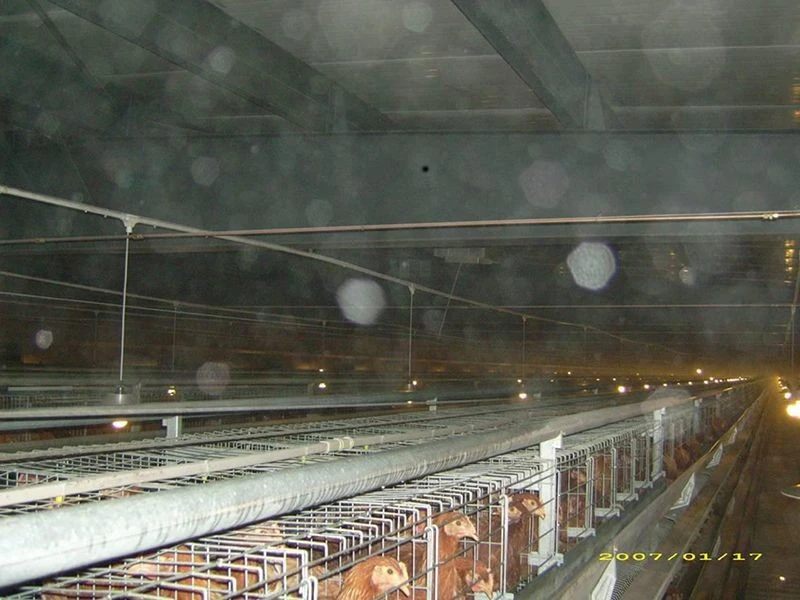

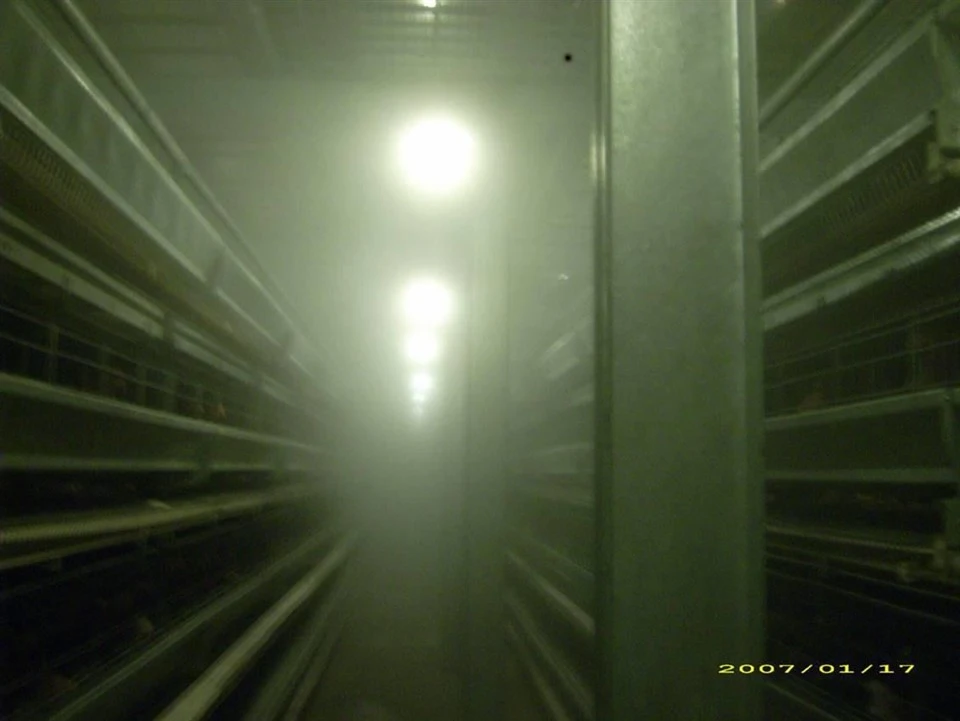

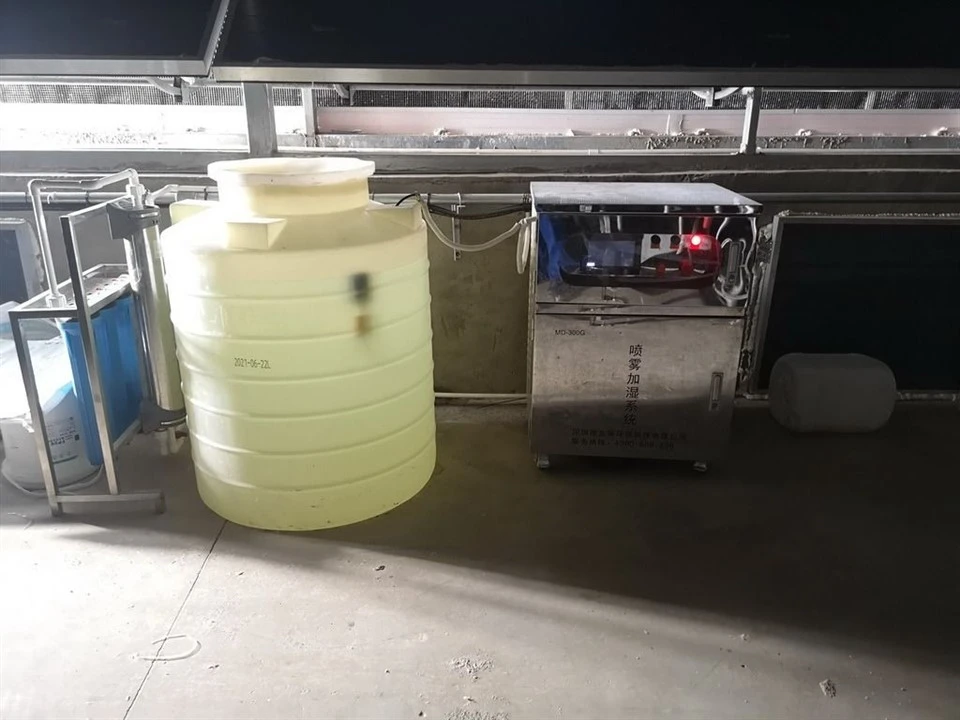

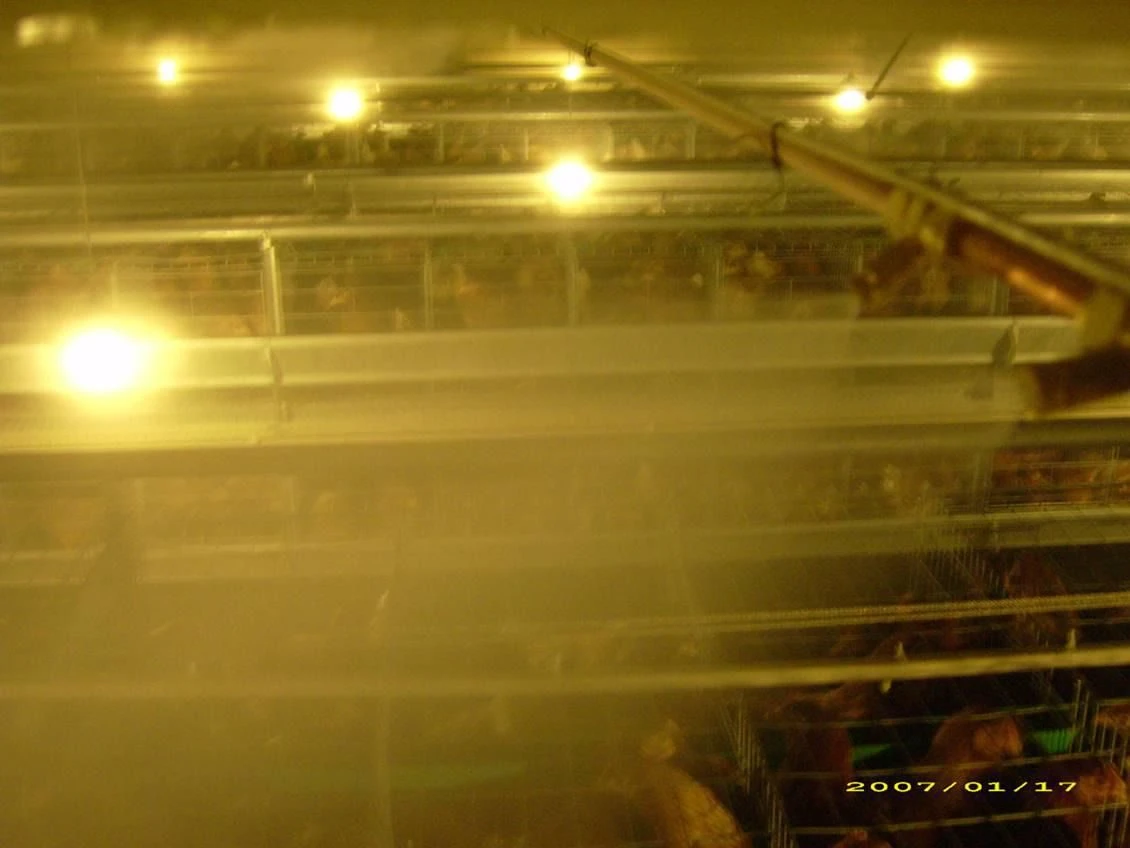

This multi-functional high-pressure intelligent spray system is custom-designed for high-density farming in stacked and stepped layer cages, focusing on four core needs of layers: summer cooling, humidity control, dust suppression and disinfection. It serves as the key equipment for environmental management in large-scale layer farms. Prolonged exposure to temperatures above 30°C easily causes heat stress in layers, leading to reduced feed intake, lower egg production, lighter egg weight, poor shell quality and increased mortality in severe cases. The system uses a high-pressure plunger pump to pressurize water to 5–10MPa, atomizing water into 5–30 micron ultra-fine droplets through specially designed micro-nozzles. Suspended in the air, the droplets evaporate rapidly and absorb heat, cooling the barn by 3–6°C when combined with longitudinal ventilation, effectively alleviating heat stress. Supporting temperature-humidity linkage, timed interval and remote intelligent control, the system automatically adjusts spray duration and interval based on barn conditions. A multi-stage filtration system prevents nozzle clogging, and the 304 stainless steel body adapts to the humid, dusty and ammonia-corrosive environment of layer houses. Integrating cooling, humidification, dust removal and disinfection, it is suitable for closed and semi-open layer farms worldwide and compliant with international poultry environmental standards. It delivers an efficient and reliable environmental solution for stable egg production, improved egg quality and higher breeding benefits.
Product specifications
|
Parameter Item |
Detailed Specification |
|
Applicable Cage Type |
Stacked/stepped layer cages, fully compatible with all Guangxing layer cage series |
|
Working Pressure |
5–10MPa high-pressure atomization, stably outputs ultra-fine droplets |
|
Droplet Size |
5–30 microns, evaporates quickly without wetting layer feathers or cages |
|
Spray Coverage |
Nozzle spacing 2–3m, coverage ≥90%, no cooling dead zones |
|
Control Mode |
Temp-humidity auto-linkage, timed interval, manual control, remote APP (optional) |
|
Main Unit Material |
304 stainless steel, anti-corrosion and rust-resistant, withstands humid ammonia-rich layer house environments |
|
Filtration System |
3-stage precision filtration (5μm), backwashable, prevents nozzle clogging long-term |
|
Applicable Temperature |
Cooling ≥30°C; humidification/disinfection suitable year-round |
|
Power Supply |
AC 220V/380V; 110V customizable, compatible with global power grids |
Product features and advantages
features
1.High-pressure ultra-fine atomization technology with 5–30 micron droplets evaporating rapidly, cooling by 3–6°C without wetting layer feathers or eggs.

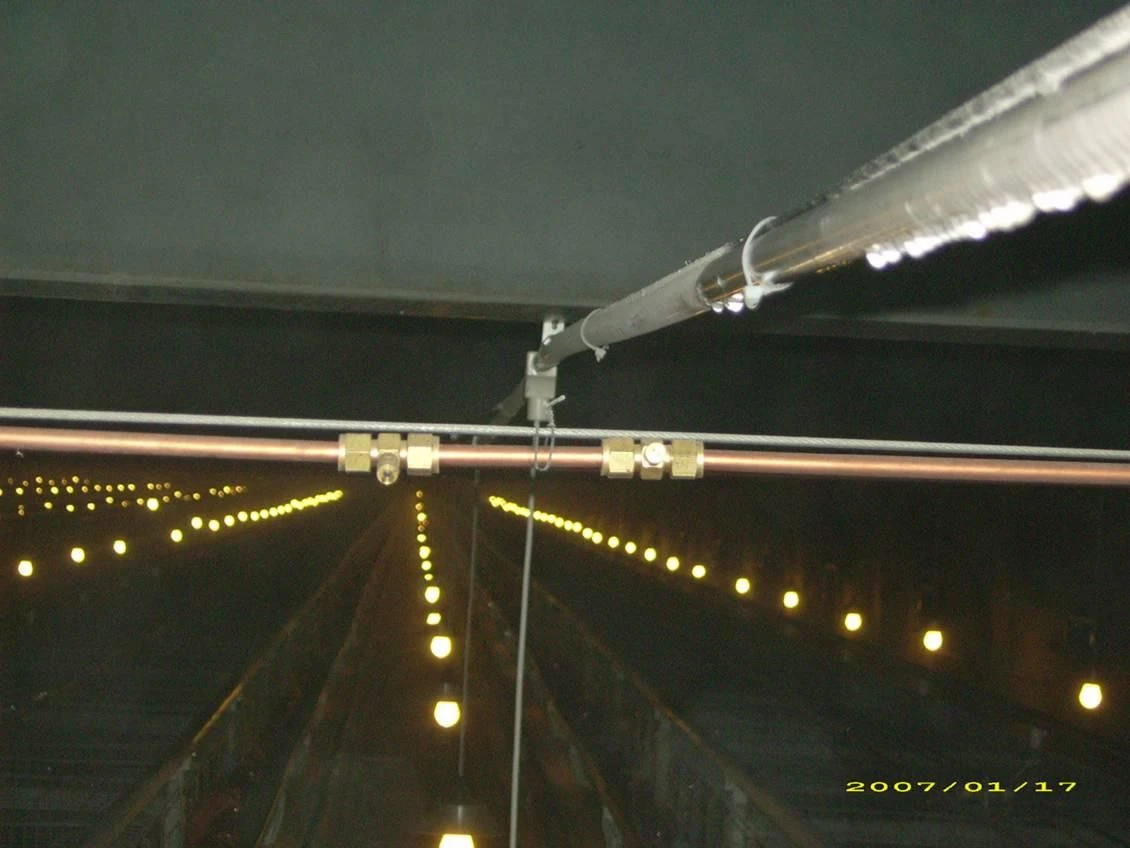

2.Custom spray layout for stacked layer cage design with directional nozzles, ensuring full coverage without dead zones.
3.Intelligent temp-humidity linkage control: auto-start at ≥30°C, auto-stop at ＞75% humidity, avoiding high temp-humidity stress.
4.Intermittent spray design (15–30s on, 5–15min off) with longitudinal ventilation, cooling without excessive humidity increase.
5.304 stainless steel main unit and piping, anti-corrosion and rust-resistant, withstanding humid, dusty and ammonia-corrosive layer house conditions for long service life.
6.3-stage precision filtration system (5μm), backwashable, effectively filtering impurities to prevent nozzle clogging during long-term use.
Advantages
1.【Efficient Cooling & Stress Resistance】High-pressure ultra-fine atomization cools by 3–6°C rapidly, eliminating heat stress and stabilizing egg production.
2.【Multi-Function Cost Saving】Integrates cooling, humidification, dust removal and disinfection, replacing multiple devices and saving investment.
3.【Intelligent Precision Control】Temp-humidity linkage + intermittent spray adapts to the environment automatically, no manual duty required for easy management.
4.【High Harsh-Environment Resistance】304 stainless steel + ceramic nozzles, anti-corrosion and wear-resistant, adapting to humid and dusty layer house conditions.
5.【Water & Energy Saving, Low Maintenance】Low-energy pump + precise spray saves water and electricity with ultra-low long-term maintenance costs.
6.【Global Voltage Compatibility】Standard 220V/380V with 110V customization, compatible with global power grids without extra transformers.
Application scenarios

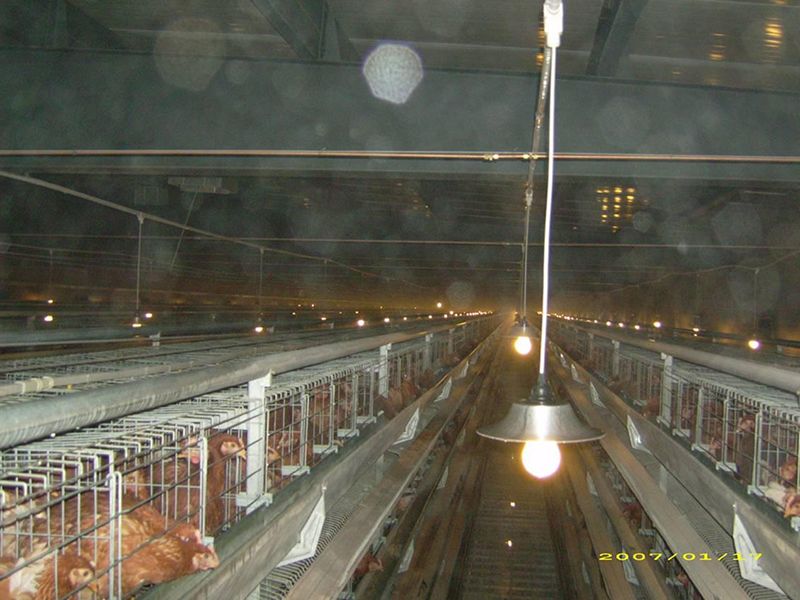

Long-house high-density stacked layer cages use zoned spray to eliminate head-tail temperature differences for uniform and stable egg production.
Packaging and transportation
Packaging: High-pressure spray main unit packed in thickened export cartons with shockproof foam; pipes and nozzles individually wrapped with anti-static pearl cotton; accessories classified and labeled for moisture-proof, shock-proof and anti-corrosion protection of precision parts.
Transportation: Supports FCL/LCL sea freight to major global ports with air freight available for urgency; fumigation certificate, packing list, certificate of origin and certification copies provided; heavy items wooden-framed with full logistics tracking for safe delivery.
FAQ
Q: Will spray in layer houses wet eggs and chicken feathers?
A: No. 5–30 micron ultra-fine droplets evaporate rapidly in the air, leaving no residual moisture with ventilation, without wetting feathers, eggs or cages.
Q: Is it compatible with non-Guangxing layer cages?
A: Yes. Custom spray plans based on cage type, tier height and walkway layout guarantee cooling coverage and compatibility.
After-sales service
1. Provide bilingual operation‑maintenance manuals and video tutorials specifying daily checks, cleaning cycles and troubleshooting guides.
2.Provide online/on‑site training for operation, programming and linkage debugging for client maintenance personnel before project delivery.
