Product Introduction

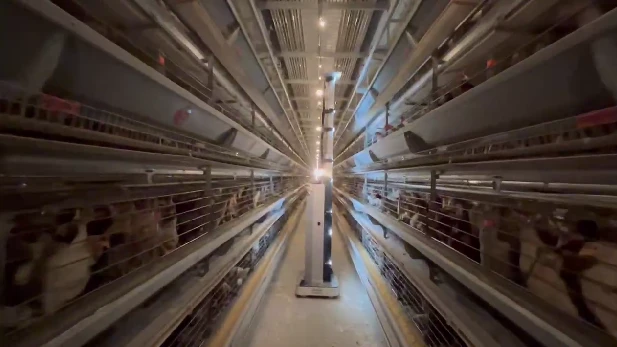

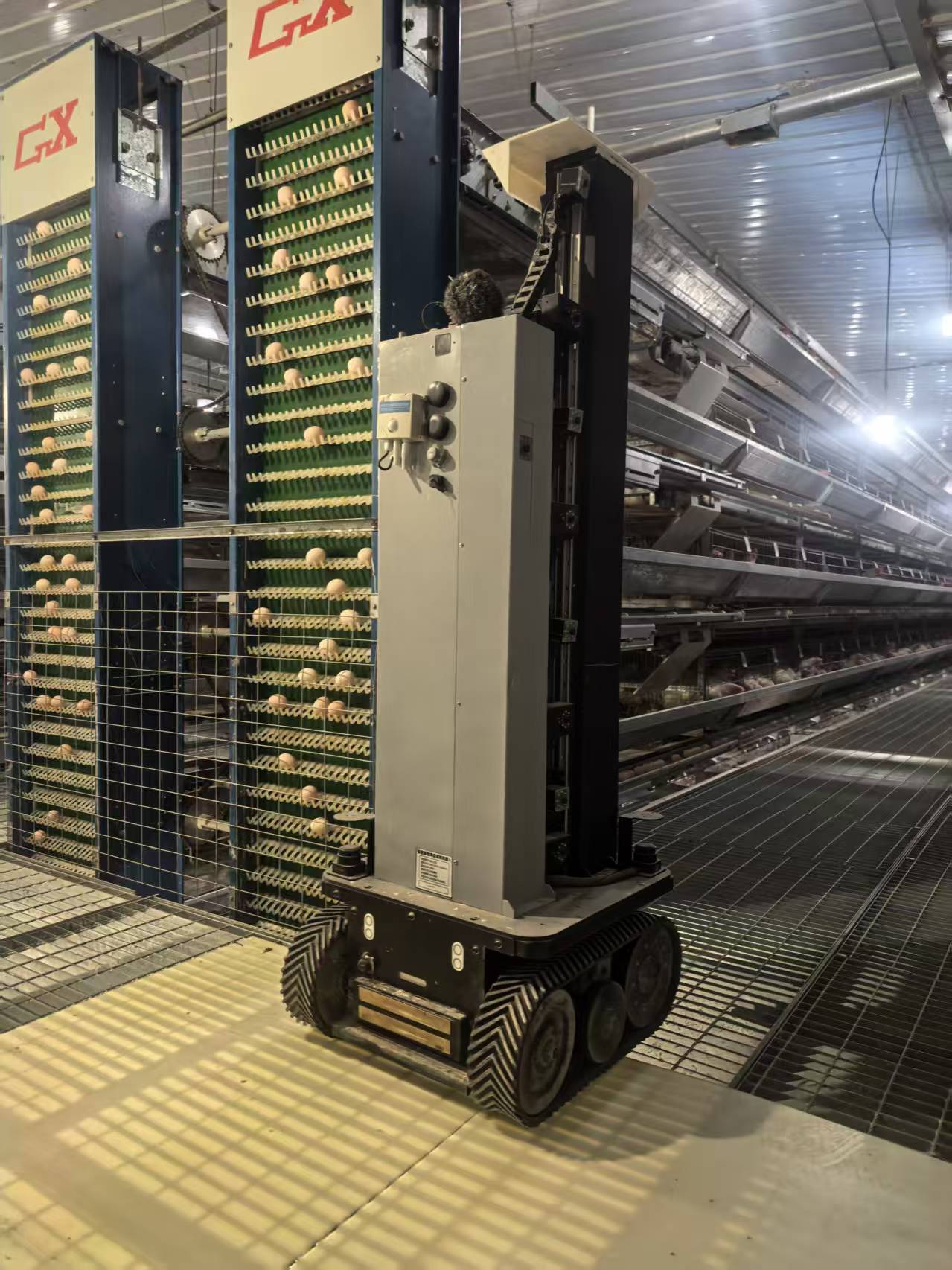

The Houji Agricultural Patrol (CMJ-100) intelligent poultry inspection robot is equipped with an adaptive autonomous navigation chassis and integrates advanced SLAM mapping and positioning technology to achieve fully autonomous shuttle inspection in poultry breeding houses. The whole machine integrates multi-dimensional intelligent detection modules: high-precision infrared temperature measurement module, ultra high definition industrial camera, optional sound acquisition unit, environmental sensing module, and depth camera detection system, achieving real-time perception of poultry signs, behavior, voiceprint, indoor temperature and humidity, ammonia and other environments in all directions. To adapt to the multi-layered cage structure, the robot is equipped with an electrically controlled lifting mechanism, with inspection heights covering 40 to 3700mm, ensuring effective monitoring of each layer of breeding space. Equipped with intelligent charging stations deployed in the building, the robot can actively return to charge according to the battery status, achieving continuous operation without human intervention. Houji Agricultural Patrol, with its outstanding autonomy and data fusion capabilities, helps modern animal husbandry move towards intelligence, precision, and unmanned operation.

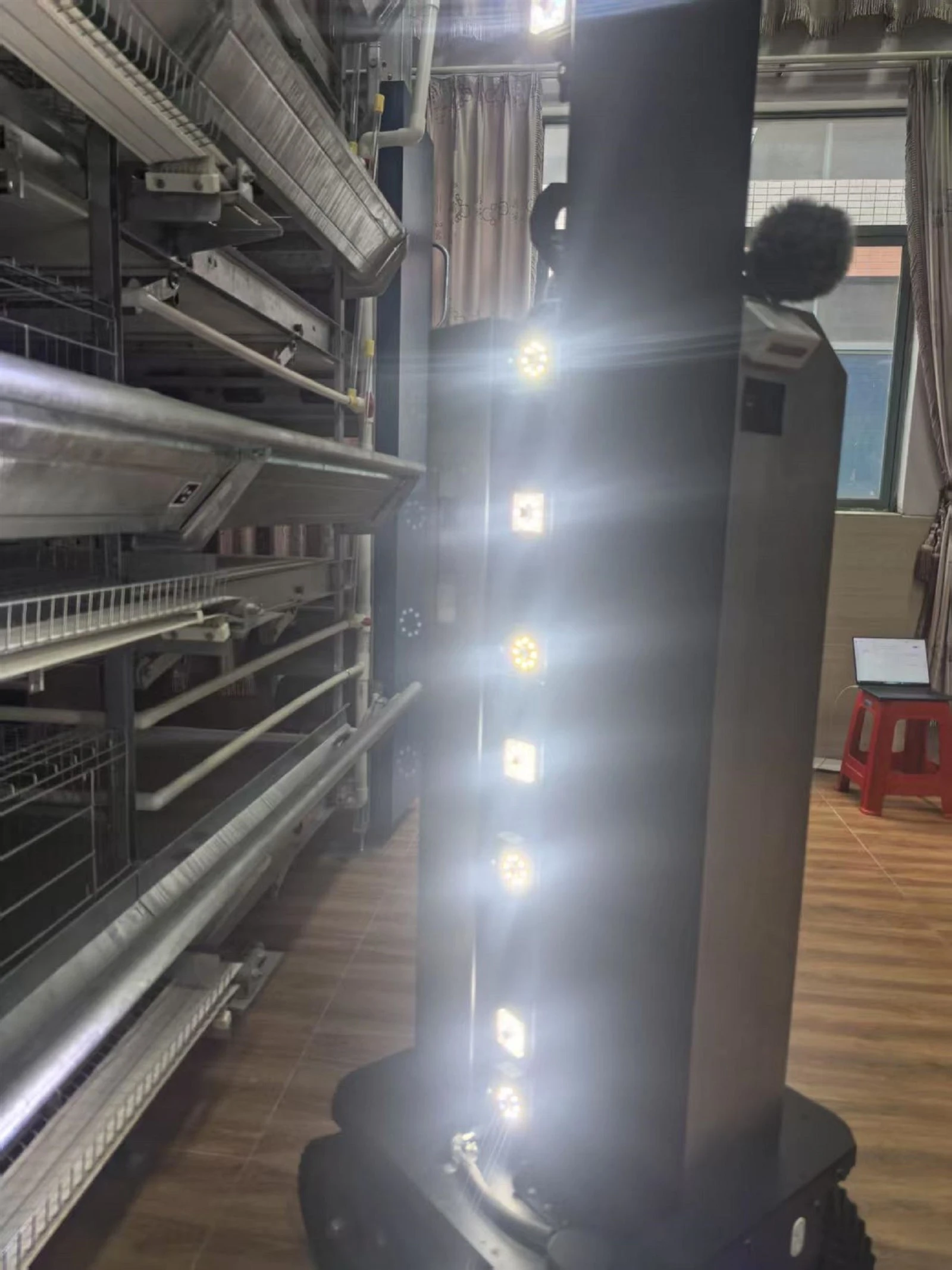

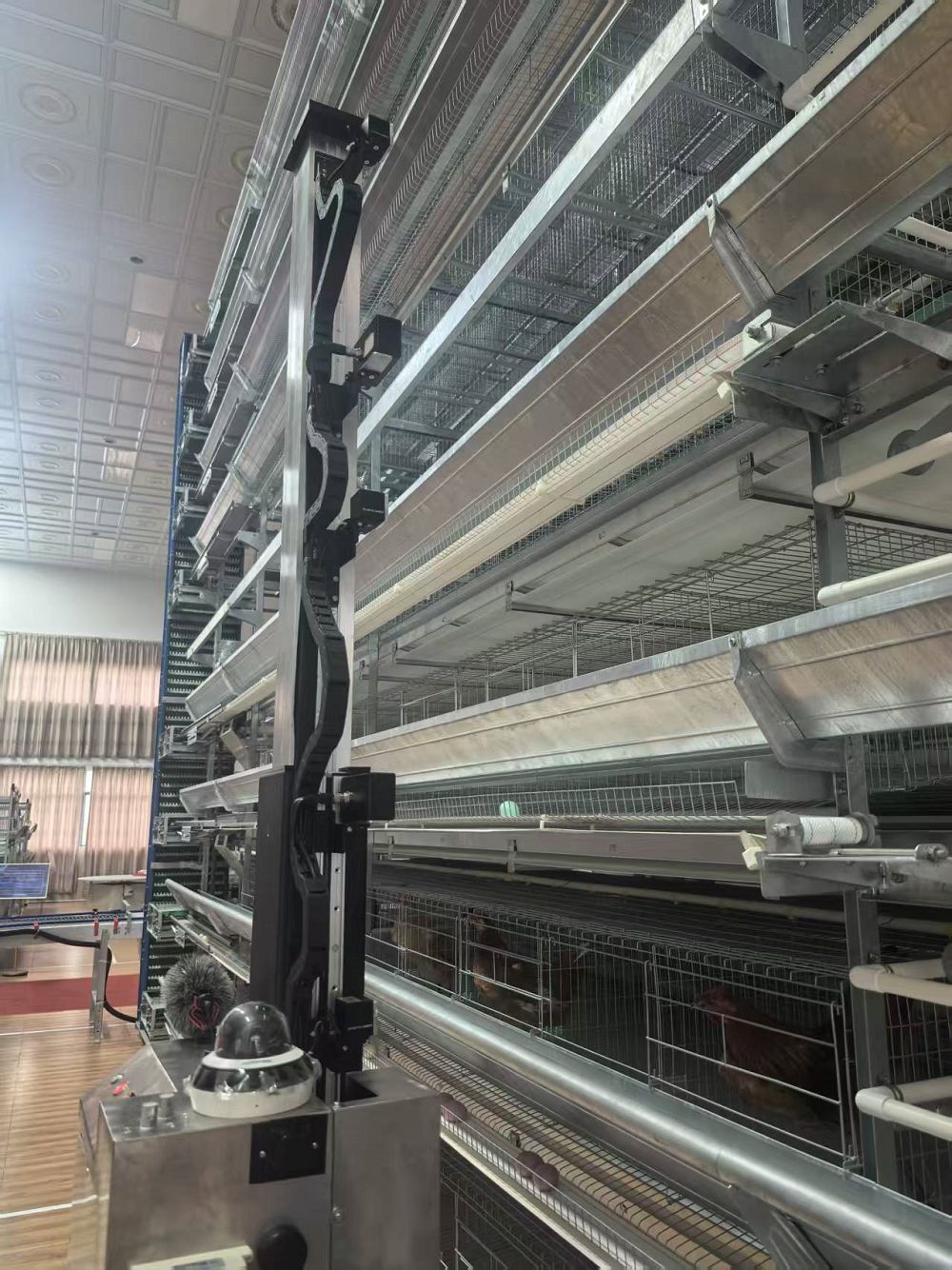

Detail drawing 1(telescopic rod)

Detail drawing2

(Camera detection module)

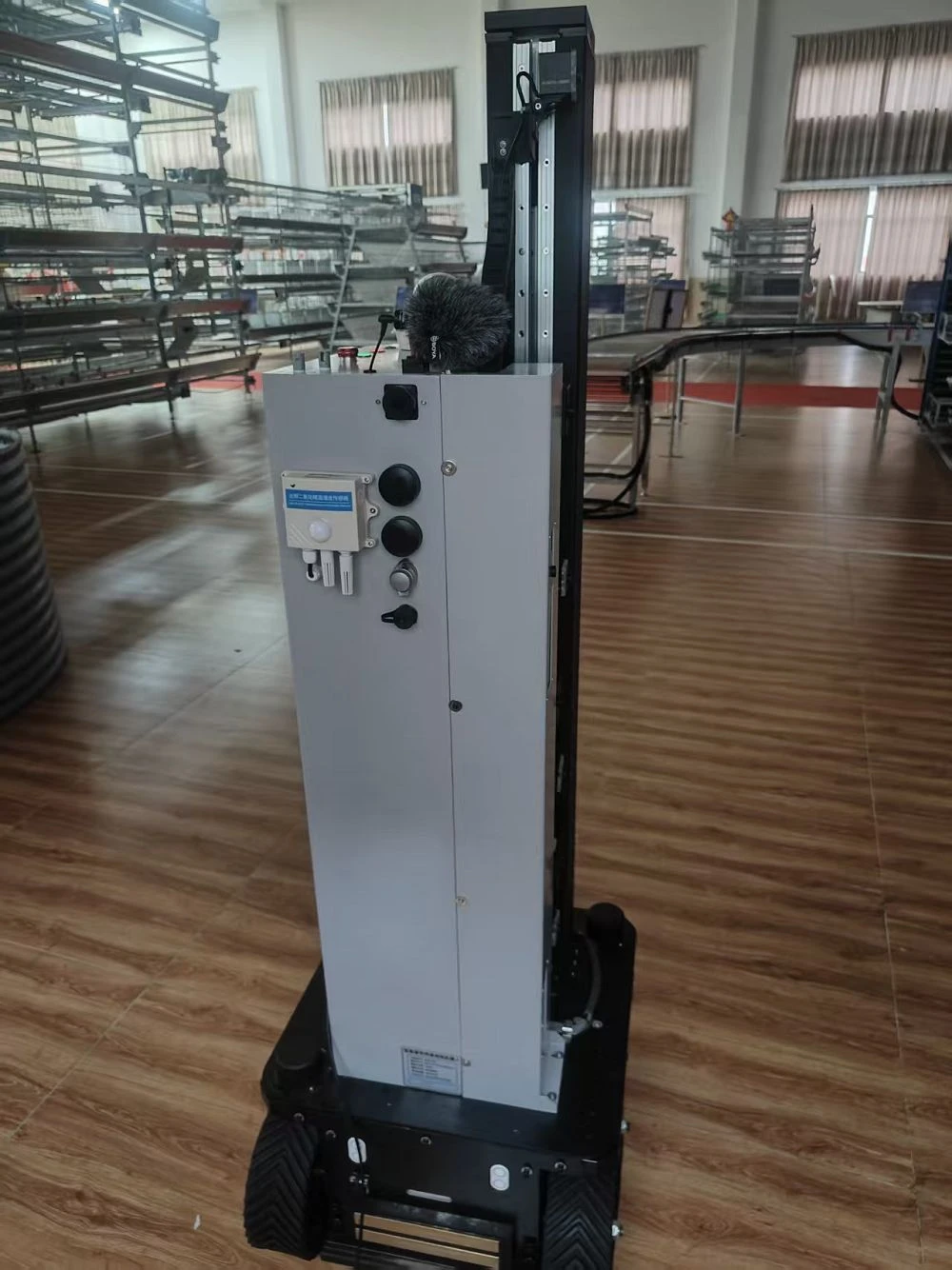

Detail drawing3(Sensor module)

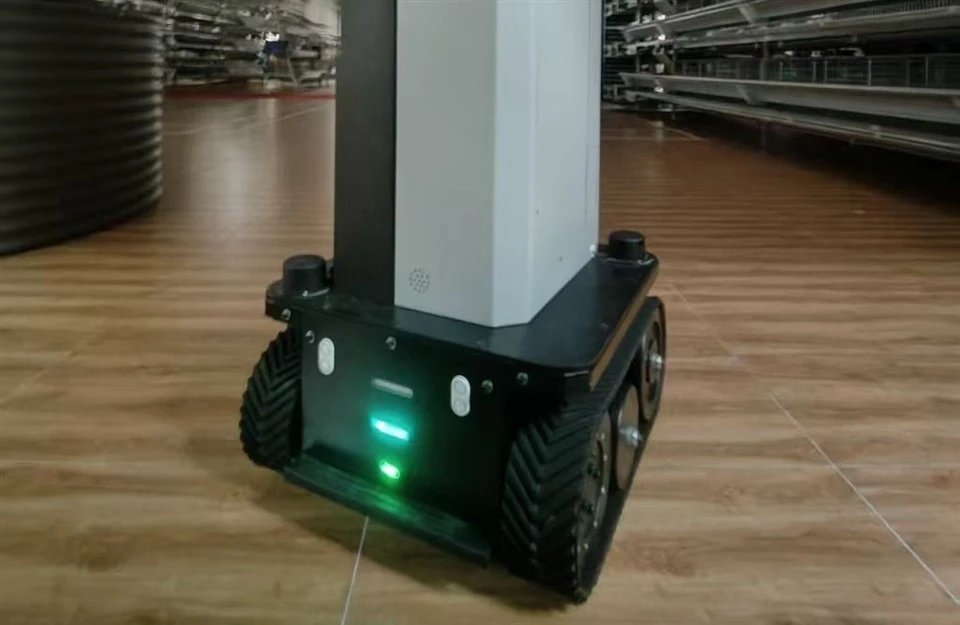

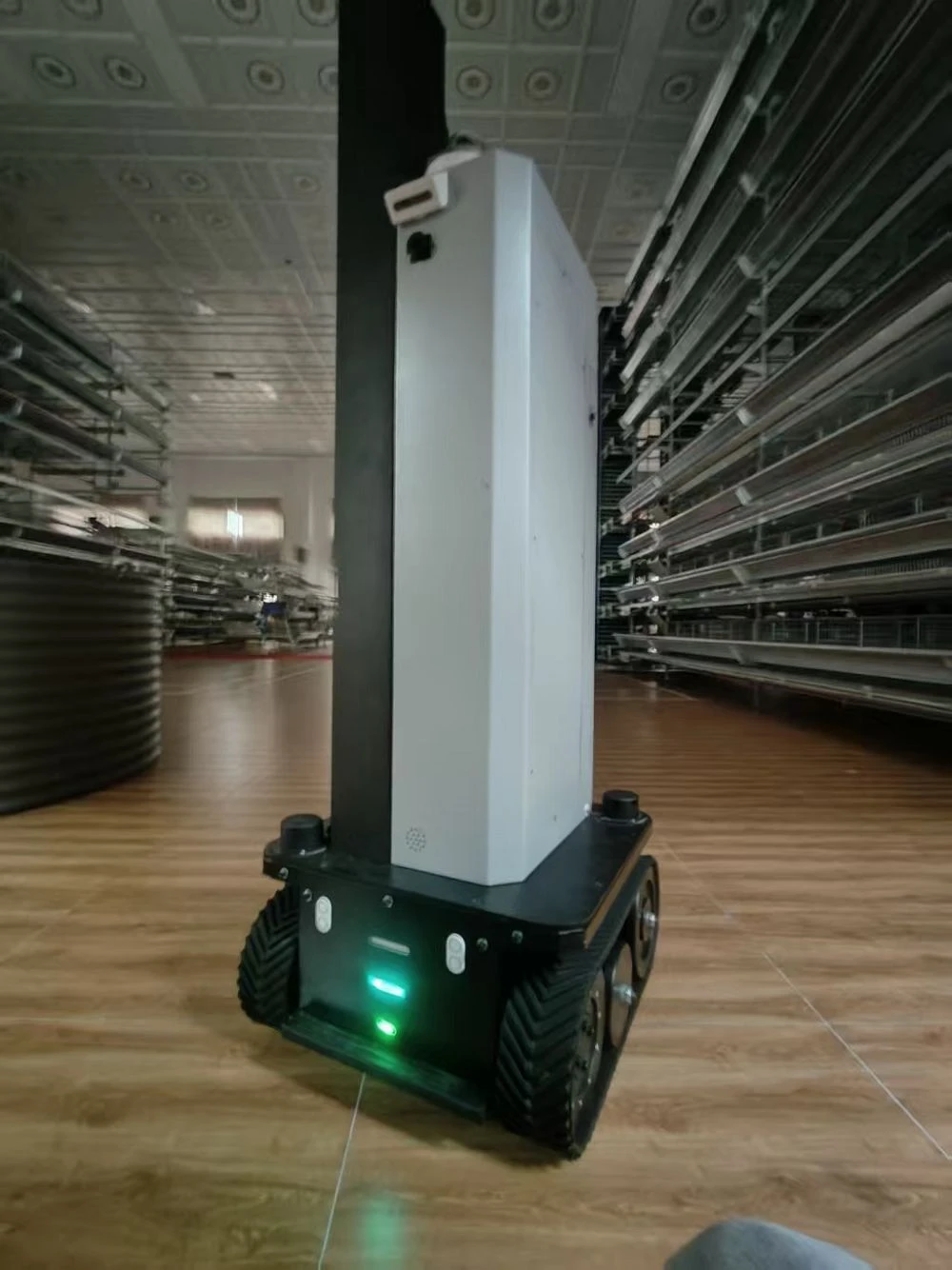

Detail drawing4(Tracked chassis)

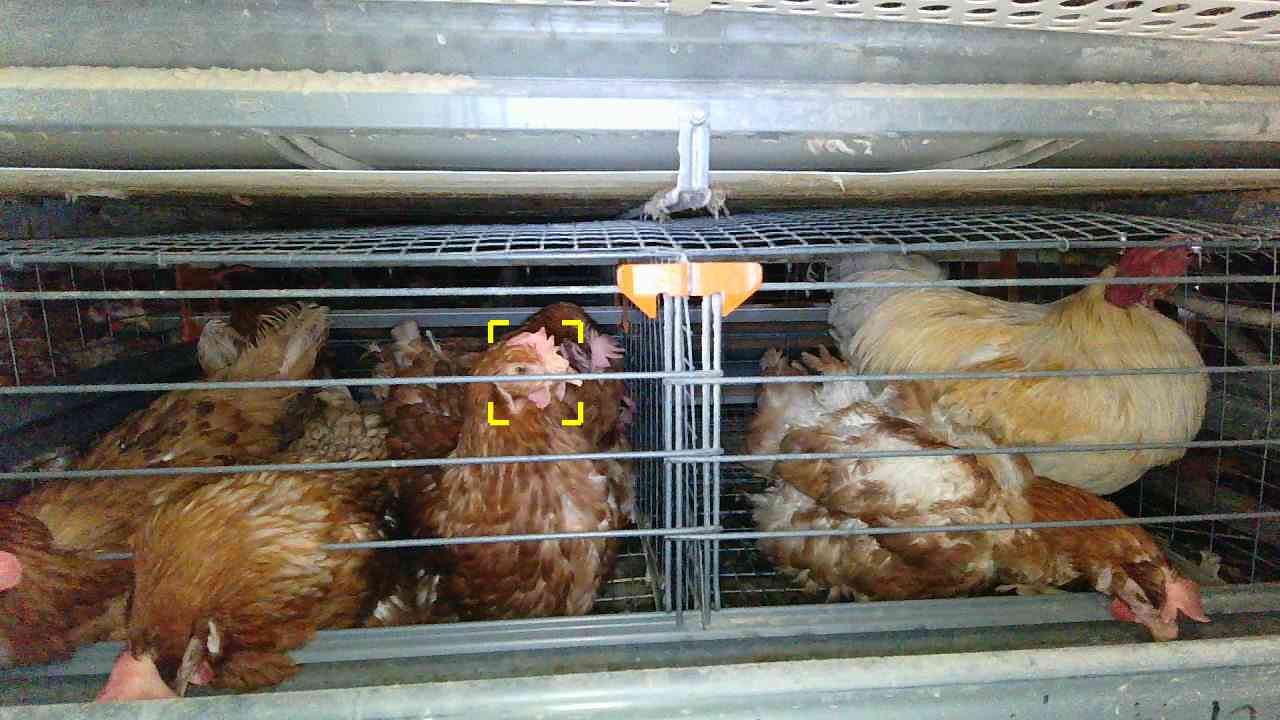

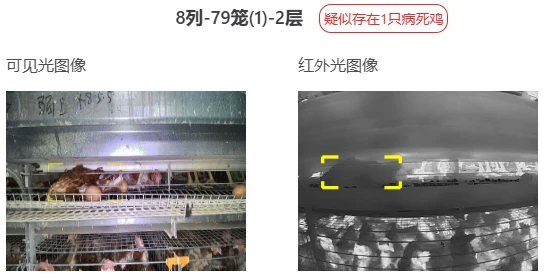

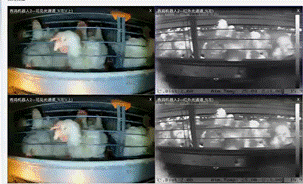

AI dual light fusion dead chicken recognition

Using the dual light fusion algorithm, by fusing visible light and infrared thermal imaging, dead chicken features such as mouth, eyes, leg extension, and abnormal body temperature are identified, achieving fast dead chicken recognition

Identification of extinct chickens

Identify characteristics of extinct chickens such as crown shrinkage and yellow pecking, and compare the number of eggs per cage with the number of laying hens to identify extinct chickens and reduce feed costs; Through big data analysis, achieve cost reduction and efficiency

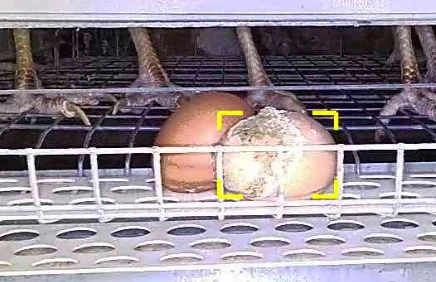

Identification of broken/dirty eggs

Through AI intelligent algorithms, the quality of the egg collection belt on the chicken farm is detected, and the quality level of the eggs is statistically fed back to remind the staff to optimize and improve the egg production quality indicators

Stereoscopic environment perception

By linking environmental information such as temperature, humidity, wind speed, and carbon dioxide concentration with cage identification and target information, a chicken cage environmental map can be created, allowing for real-time environmental control and precise monitoring and adjustment of each cage

Intelligent weight estimation

In response to the special requirements of breeding chickens, we have developed an AI intelligent algorithm for weight estimation, which can estimate the weight of breeding chickens, calculate their growth process, and adjust feeding to maintain the healthiest state

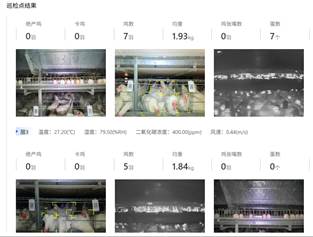

Remote video surveillance

The robot has a video inspection mode, which allows remote control of the robot to view the situation of the chicken coop;

Manually control to designated locations for key inspections and abnormal analysis



The Houji Agricultural Patrol (CMJ-100) Intelligent Poultry Inspection Robot (hereinafter referred to as the "Robot") is independently developed by Guangzhou Guangxing Poultry Equipment Group Co., Ltd. (hereinafter referred to as "Guangxing Group"), integrating artificial intelligence technology and designed for the management needs of large-scale, intensive, and intelligent modern poultry breeding projects. Robots collect data from multiple dimensions such as the health status of poultry and the environment and climate of the breeding house, providing visual decision-making basis and optimization suggestions for daily management, and helping farms achieve precise patrol and cost reduction and efficiency improvement.

Guangxing Group has been deeply involved in the field of poultry breeding equipment for nearly 38 years, with strong technical accumulation and a high-quality R&D team, continuously providing efficient and convenient breeding management services for the industry. This robot comes standard with autonomous charging stations, dedicated apps, cloud computing power, and cloud servers, and includes first-year operation and maintenance fees, single implementation fees, and domestic shipping costs. With a cost-effective integrated solution, it enables intelligent inspection to truly land on large-scale farms

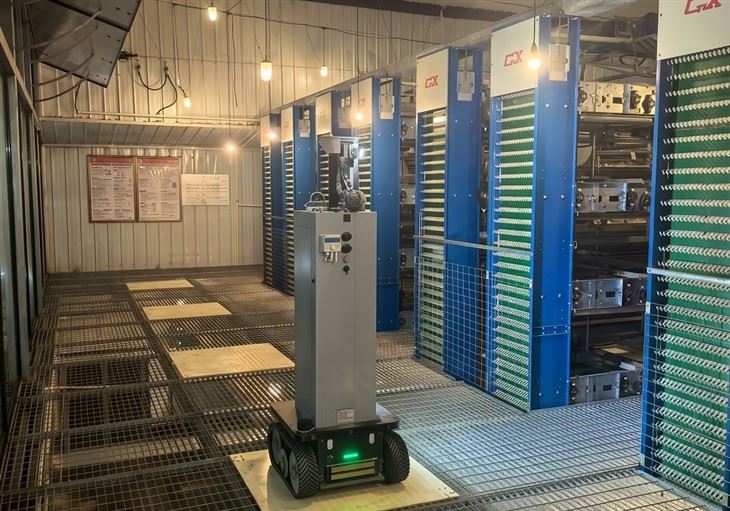

chicken farm

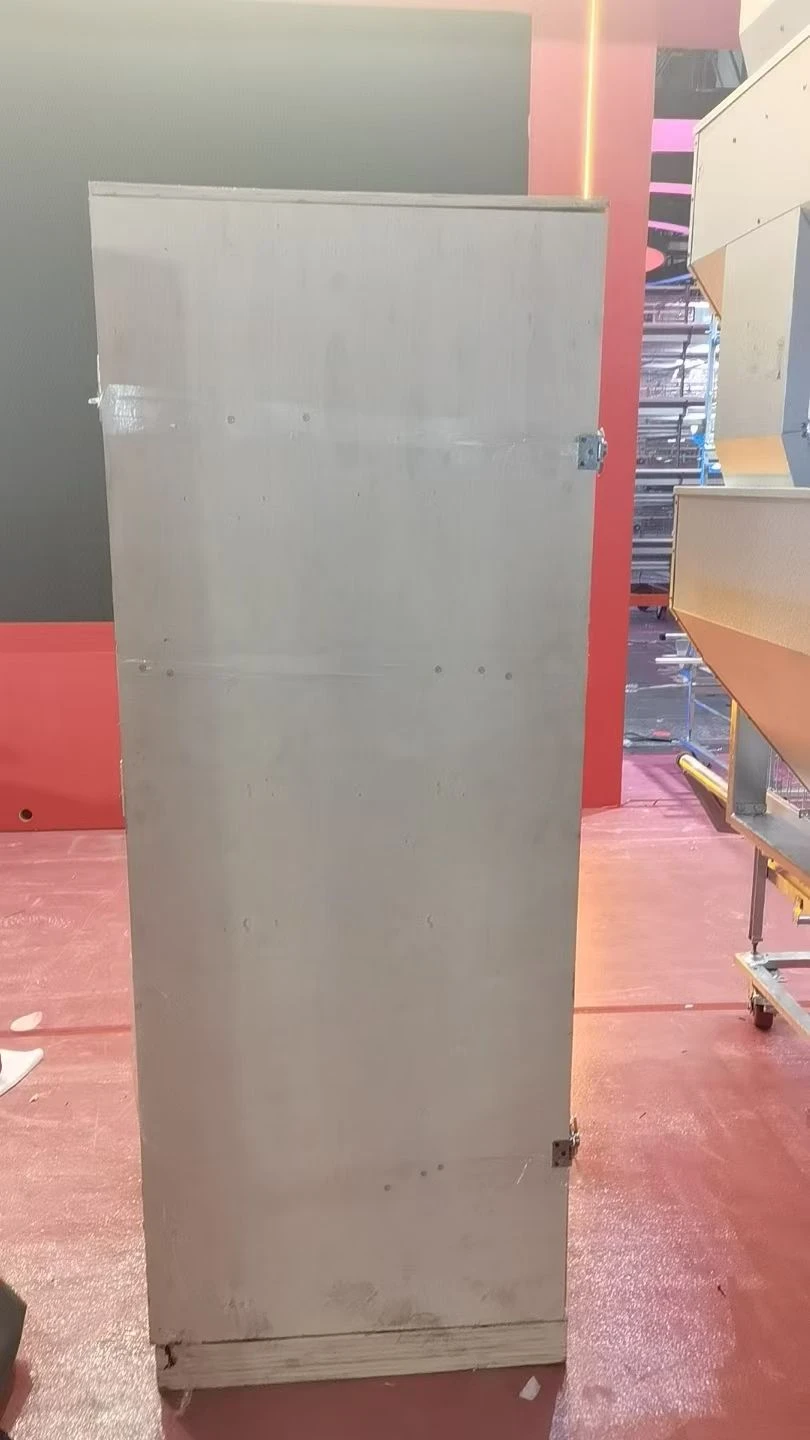

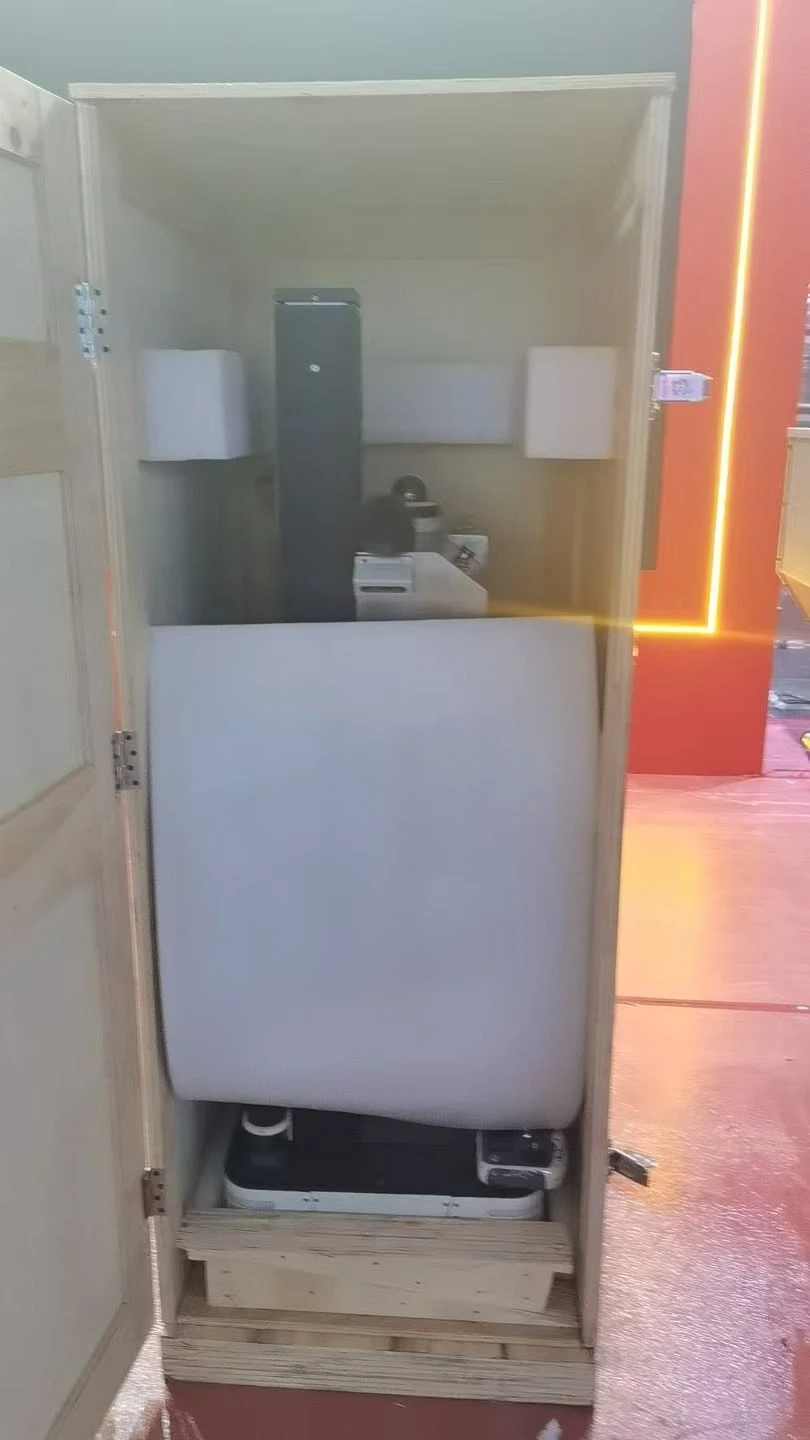

The volume of a single wooden box is 1 * 1 * 2 meters, with an estimated weight of 200kg
