Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of broiler cage heating system in China. If you're going to buy durable broiler cage heating system made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
This water-heated underfloor intelligent heating system is custom-developed for high-density cage of broilers aged 1–45 days, adopting ground low-temperature hot-water radiant heating structure, matching three-stage precise temperature control: chicks (1–10 days: 28–32°C), medium broilers (11–25 days: 25–28°C), finishing broilers (26–45 days: 22–25°C). Broilers grow fast with vigorous metabolism, sensitive to cold huddling in early stage and heat stress in late stage. Traditional hot-air heating easily causes overheating on upper layers, chilling at bottom, large temperature difference and high incidence of respiratory diseases. By circulating hot water through buried PE pipes, the system dissipates heat gently from bottom to top, realizing constant ground temperature with zero dead zones, prioritizing warmth for bottom-layer broilers and eliminating cold stress and huddling mortality. Equipped with intelligent constant-temperature main unit and 304 stainless steel water distributors, it supports zoned independent temperature control and temperature-humidity linkage. Food-grade corrosion-resistant PE pipes withstand high humidity, strong ammonia and dust corrosion in broiler houses. Intelligently linked with ventilation, lighting and spray systems, it balances early-stage heat preservation and mid-late-stage cooling/dehumidification, significantly improving survival rate, slaughter uniformity and lowering feed-to-meat ratio, delivering a full-cycle efficient heating solution for commercial broiler farms.
Product specifications
|
Parameter Item |
Detailed Specification |
|
Applicable Cage Type |
Stacked/stepped broiler cages, fully compatible with all Guangxing layer cage series |
|
Temperature Control Range |
10–30°C (optimal laying temp: 18–22°C) |
|
Temperature Control Accuracy |
±0.5°C, tier-to-tier/cage-to-cage difference ≤±0.8°C |
|
Heating Method |
High-efficiency hot air circulation + inter-cage radiant heat conduction, full-area uniform heat distribution |
|
Main Unit Material |
304 stainless steel, ammonia-resistant, moisture-proof, corrosion-resistant & high-temperature resistant |
|
Heat Exchanger Material |
Corrosion-resistant aluminum alloy + high-temperature coating, high heat exchange efficiency & dust resistance |
|
Control Mode |
Intelligent constant temperature, multi-stage timing, low-temperature linkage, APP remote monitoring (optional) |
|
Power Supply |
AC 220V/380V; 110V/415V customizable, compatible with global power grids |
|
Safety Protection |
Overheat, leakage, water shortage protection & fault alarm (sound/light + APP push) |
Product features and advantages
Features
1.Ground water-heated radiant heating dissipates heat gently from bottom to top, prioritizing warmth for bottom-layer broilers and eliminating cold-stress huddling.

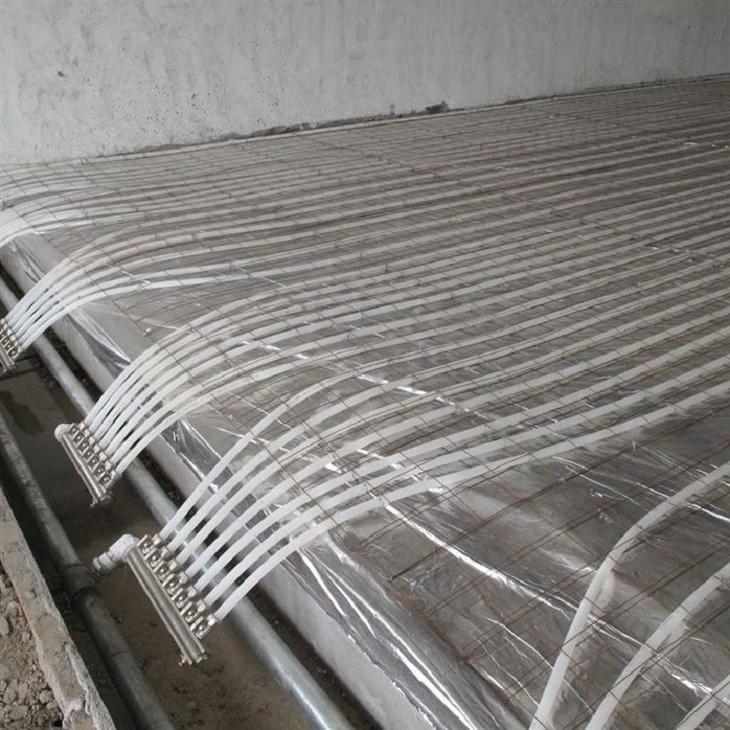

2.Real-shot-matched PE underfloor pipe layout with buried installation for even heat distribution, no temperature dead zones between cages and tiers.

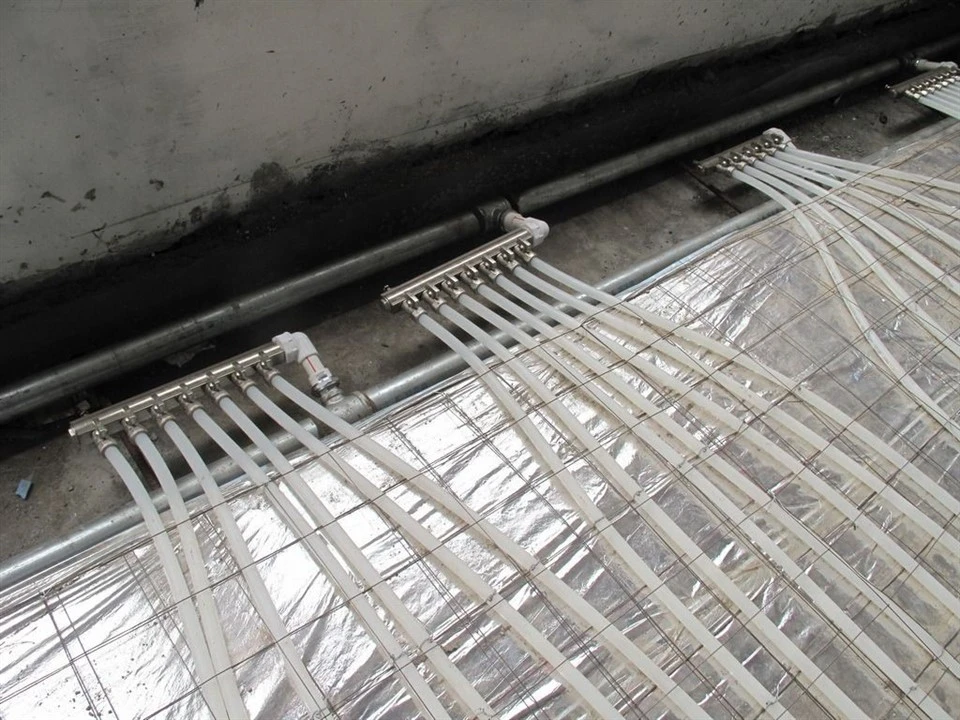

3.304 stainless steel zoned water distributors regulate temperature by sections for long barns, solving low-temperature and uneven-growth issues at far ends.
4.Automatic three-stage age-based temperature curve matches heat for 1–45 days without frequent manual parameter adjustment.
Advantages
1.【Ground‑First Heating for Lower Mortality】Water‑heated underfloor heating dissipates heat from bottom to top, eliminating chilling for bottom broilers, boosting survival rate by 4–5% and cutting mortality by 12–18%.
2.【Uniform Growth for Lower FCR】Zero tier‑to‑tier temperature difference ensures even growth, 10% higher slaughter uniformity and 0.08–0.15 lower feed‑to‑meat ratio.
3.【Gentle Heating with Zero Stress】No direct hot‑air blowing prevents ascites and respiratory diseases, matching fast‑growing broiler physiology.
4.【Ultra-Durable & Corrosion‑Resistant】PE pipes + 304 distributors resist ammonia, dust and high humidity for 10‑year maintenance‑free service.
Application scenarios

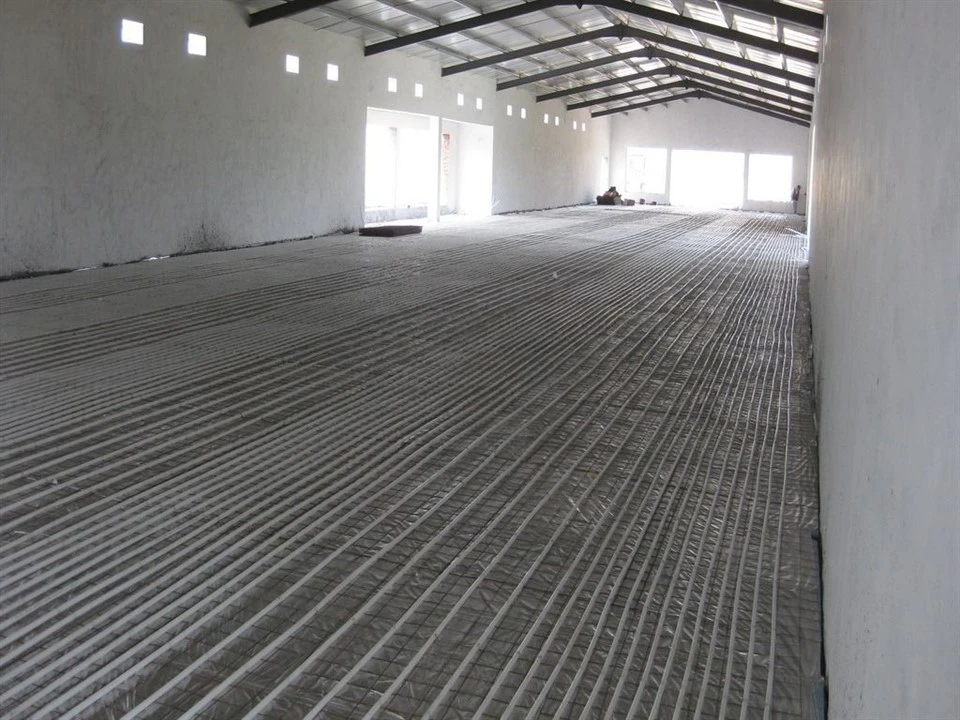

Large-scale cold-northern brooder farms use underfloor heating to stabilize ground temperature at 33–35°C, eliminating chick huddling and death from cold.
Packaging and transportation
Transportation: Supports FCL/LCL sea freight to major global ports with air freight available for urgency; fumigation certificate, packing list, certificate of origin and certifications provided; heavy items wooden‑framed with full logistics tracking.
FAQ
Q: What is the core advantage of broiler water‑heated underfloor heating over traditional hot‑air stoves?
A: Traditional hot‑air heating blows from top to bottom, chilling bottom broilers; our system dissipates heat from ground up with zero hot‑air stress, greatly reducing ascites and respiratory diseases and lowering FCR.
Q: Will broiler manure accumulation corrode buried underfloor pipes?
A: Pipes are buried under ground cushions with no contact with manure; food‑grade PE material resists corrosion with zero leakage risk.
After-sales service
1.Provide special training on underfloor heating installation, heat-source docking and zoned temperature control for overseas maintenance personnel before project launch.
2.Establish exclusive customer files with one-on-one after-sales specialists to track system operation status throughout the cycle and proactively warn of potential faults.
