Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of layer cage egg collection system in China. If you're going to buy durable layer cage egg collection system made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Product Introduction
This automatic egg collection system for cage-reared layers is designed for large-scale rearing of stacked and stepped multi-tier commercial layers, consisting of in-cage longitudinal egg collection troughs, horizontal egg-conveying belts, vertical elevators, central main conveying lines, egg buffer sorting units and intelligent fault monitoring modules, perfectly matching all Guangxing multi-tier layer cage series. Deeply optimized for core pain points of multi-tier cage rearing including uneven egg collection speed between tiers, egg collision breakage, egg-shell pollution and delayed terminal collection in ultra-long houses, it adopts independent uniform-speed egg conveying per tier and flexible anti-collision buffer with fully enclosed dust-proof design, keeping egg breakage rate below 0.3%. Linked with environmental control systems, it realizes synchronous management of egg-collection timing with lighting, feeding and drinking. Adaptable to 8-tier stacked cages and 200-meter ultra-long houses, it realizes fully automatic egg picking, conveying and centralized collection, greatly cutting labor costs and improving egg hygiene and output efficiency, delivering an efficient, stable and low-breakage intelligent egg-collection solution for large-scale layer farms.

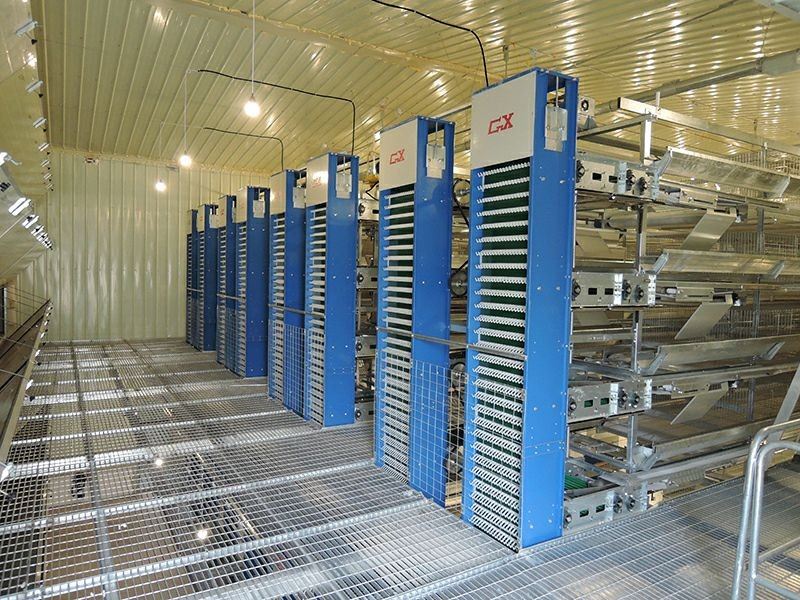

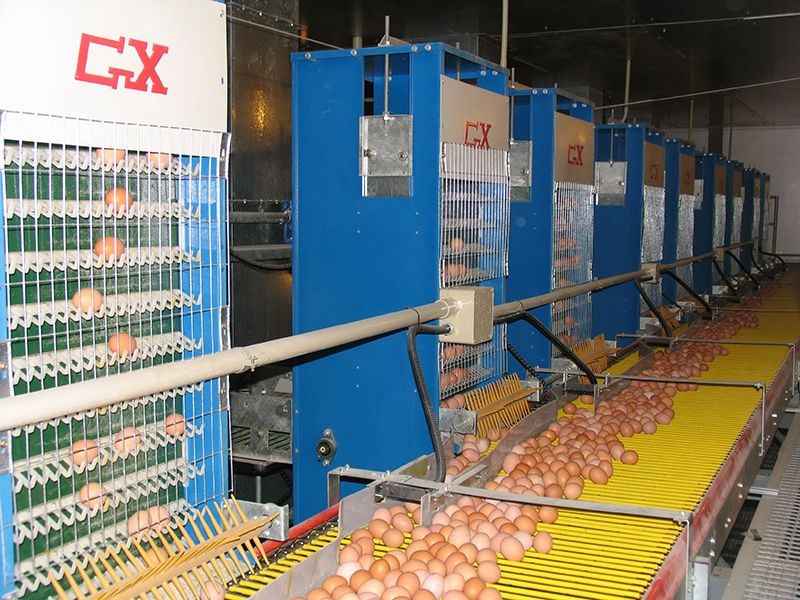

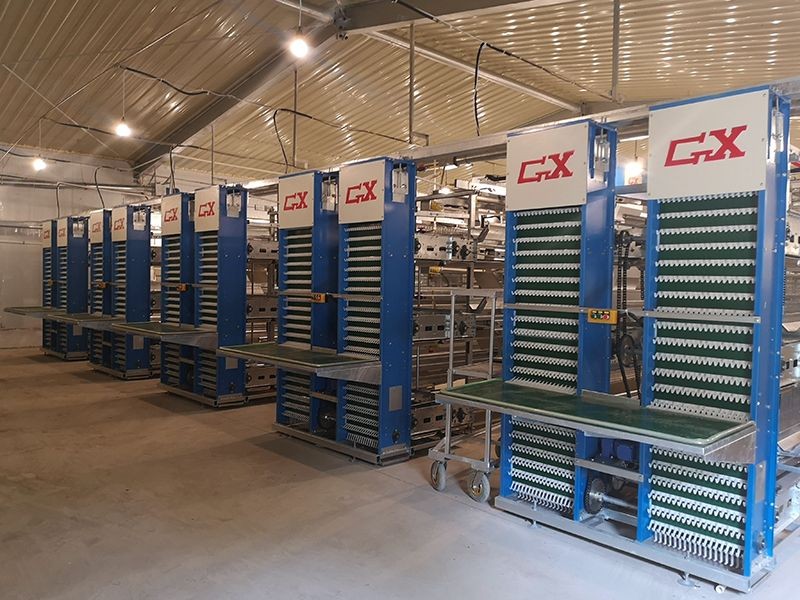

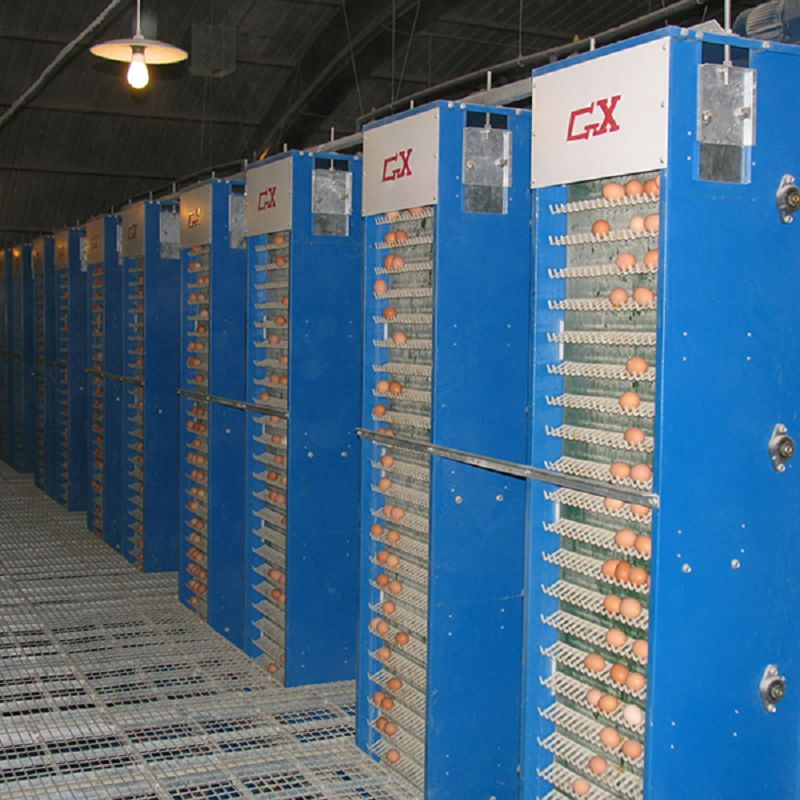

Egg Collecton System

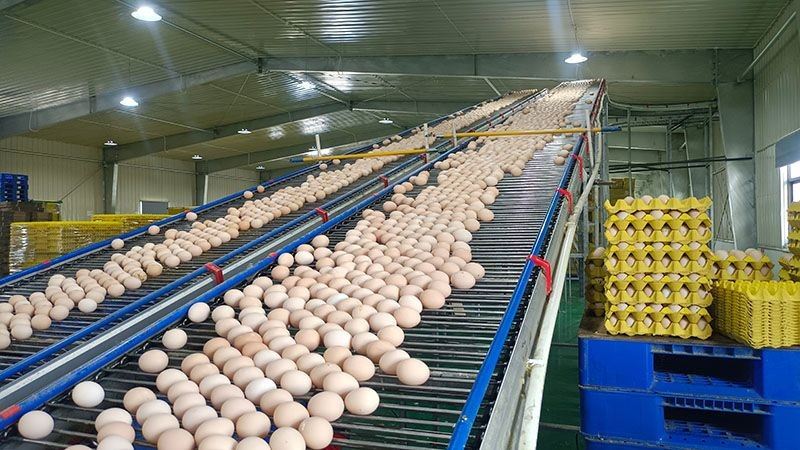

Central Egg Conveyor System

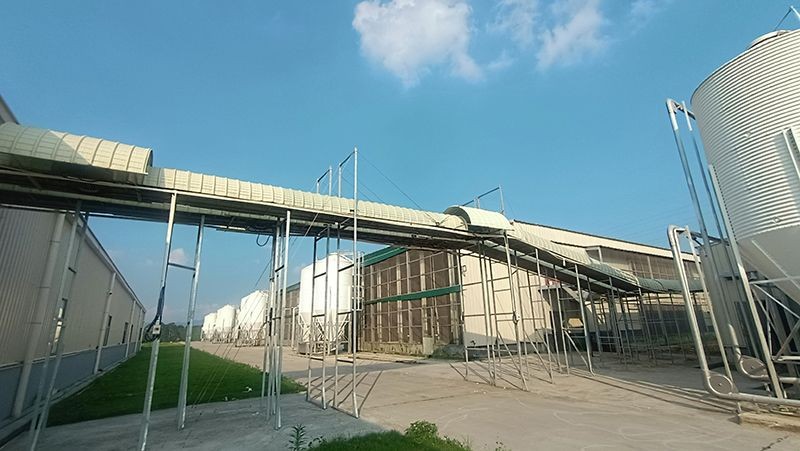

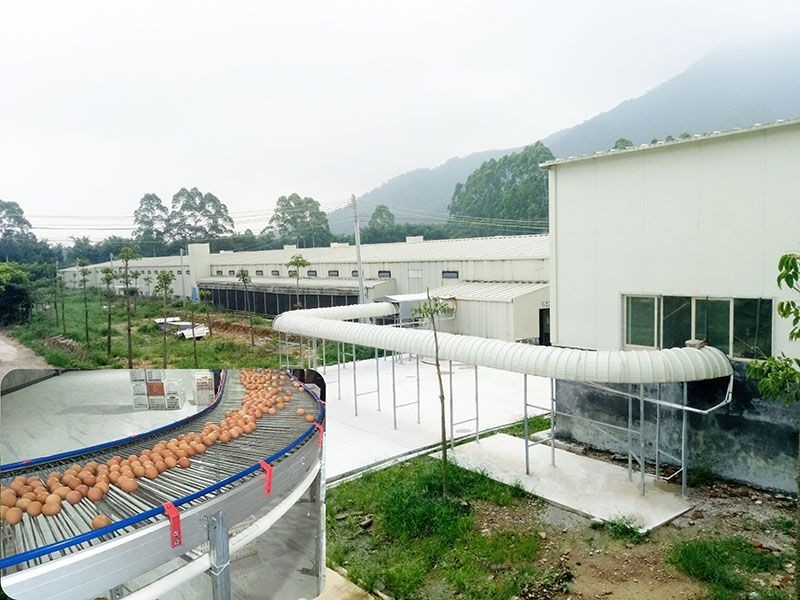

Outdoor Central Egg Conveyor
Basic Parameters of the Product：
|
Parameter Item |
Detailed Specification |
|
Applicable Rearing Mode |
Only stacked/stepped multi-tier cage-reared commercial layers for full laying cycle |
|
System Core Components |
In-cage longitudinal troughs, food-grade flexible belts, vertical elevators, central main lines, buffer sorting platform, intelligent electric control system |
|
Longitudinal Conveying Speed |
0.12–0.18 m/s adjustable; main line 0.2–0.25 m/s, stable without egg rolling |
|
Egg Breakage Rate |
Overall egg breakage rate ＜0.5% under standard conditions, much lower than manual collection |
|
Core Materials |
Belt: food-grade flexible PVC; trough: hot-dip galvanized steel with flexible strips; elevator: thickened galvanized frame |
|
Linkage Mode |
Linked with 3-cabinet PLC environmental control system for timing synchronization with feeding, lighting and drinking |
|
Safety Protection |
Belt deviation alarm, egg congestion warning, overload protection, power-off memory, emergency stop button |
Product features and advantages
Features
1.We are the first enterprise in China which has been designing, manufacturing and exporting egg collection system.
2.Independent longitudinal egg troughs per tier with separately adjustable conveying speed solve uneven egg collection between upper and lower cages.
3.Food‑grade flexible belts and anti‑collision strips realize soft egg conveying throughout the process, keeping breakage rate below 0.5%.
4.Vertical egg elevators centrally collect eggs from multi-tier cages with stable lifting to avoid falling‑off breakage.
5.Fully enclosed dust‑proof main conveying lines isolate cage‑house dust and ammonia to improve egg hygiene and grade.
6.Segmented conveying design for ultra‑long houses adapts to 200‑meter layer houses without egg retention or accumulation.
7.To fill up the blank in China through several years'research,we have developed the high quality automatic egg collecting system and the central egg collecting system,which have improved automation of raising equipment.
8.The system is easily operated,improving the raising efficiency and saving the Labor force,thus improving the raising performance of farms.
9.Eggs damaging rate is lower than 0.5%.
Advantages
1.[Low‑breakage Flexible Collection Improves Egg Value]
Breakage rate below 0.5% reduces 80% loss vs. manual picking, greatly improving qualified egg rate.
2.[Fully‑automatic Unmanned Picking Cuts Labor Costs by 85%]
Replaces massive pickers, adapting to overseas high‑labor‑cost markets.
3.[Fully-enclosed Dust‑proof Design Upgrades Egg Hygiene]
Isolates dust pollution to improve egg grade and premium value.
4.[Independent Per‑tier Drive Ensures Stable Operation]
Single‑tier faults do not affect overall system for large‑scale stable breeding.
5.[Ultra‑long House Adaptability Releases Large‑scale Capacity]
Suitable for 200‑meter houses and million‑bird industrial parks.
6.[Intelligent Timing Linkage Realizes Full‑process Coordination]
Synchronized with environmental, water and feeding systems for full‑process intelligence.
Application scenarios
Hot-humid southern layer farms use dust-proof anti-corrosion systems to prevent summer mold pollution on eggshells.
Packaging and transportation
Egg elevator frames and main conveying racks are independently packed in thickened solid-wood export cases. Conveying belts, flexible strips and sensors adopt anti-static vacuum moisture-proof packaging; precision electric control modules are cushioned and protected. FCL/LCL sea freight and expedited air freight are available with complete export documents. Large wooden cases are reinforced with angle steel with full-process logistics tracking.
FAQ
Q：Will egg conveying speed be inconsistent between upper and lower cage tiers?
A：No. Each tier is equipped with an independent drive unit with separately adjustable speed matching laying rhythm.
Q：Is the egg breakage rate high during conveying?
A：Extremely low. Food‑grade flexible belts and anti‑collision strips keep breakage rate below 0.3%.
Q：Will eggs accumulate at the terminal of 200‑meter ultra‑long houses?
A：No. Segmented conveying design realizes smooth egg flow without retention at terminals.
Q：Can it link with environmental control systems for timed automatic egg collection?
A：Yes. Linked with 3‑cabinet PLC cabinets for timed start‑stop and unmanned operation.
Q: Will the system operation noise affect the laying of layer hens? What is the noise standard?
A：It will not affect the laying of layer hens. The system adopts ultra-low noise design, with operation noise ≤35dB, combined with silent fans and shock-absorbing installation accessories, no obvious abnormal noise during operation, which will not interfere with the feeding, resting and laying of layer hens, adapting to the full laying cycle breeding of layer hens, and meeting the noise control requirements of overseas large-scale layer farms.
After-sales service
1.Provide customized linkage programming for egg-collection-water-environment-feeding systems matching clients' existing cage-rearing equipment.
2.Establish one-on-one after-sales files to track full-process operation and warn of faults for full-cycle stable egg collection.
