Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of egg packing equipment in China. If you're going to buy durable egg packing equipment made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.

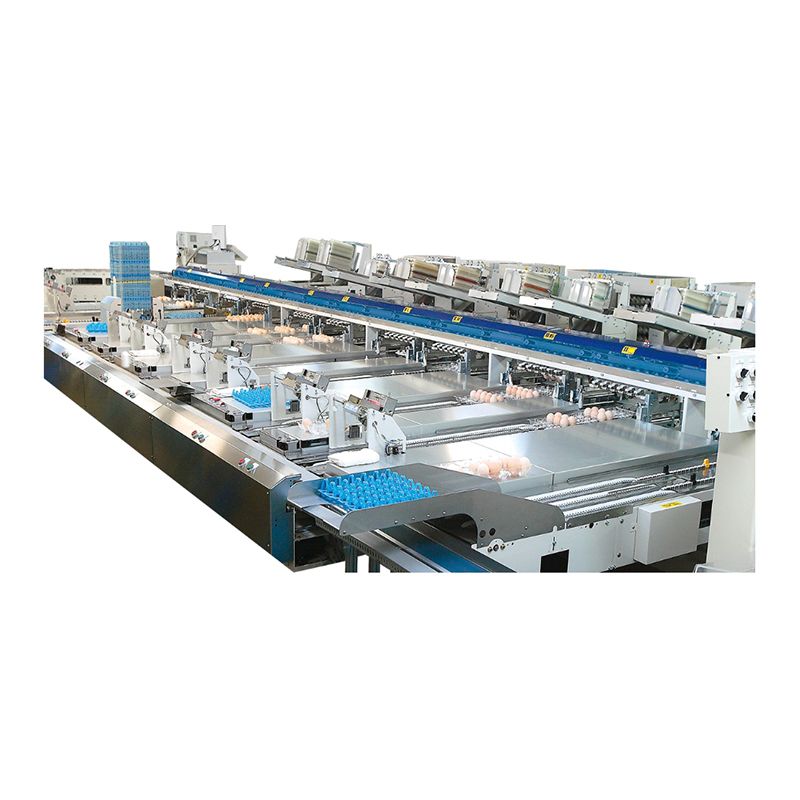

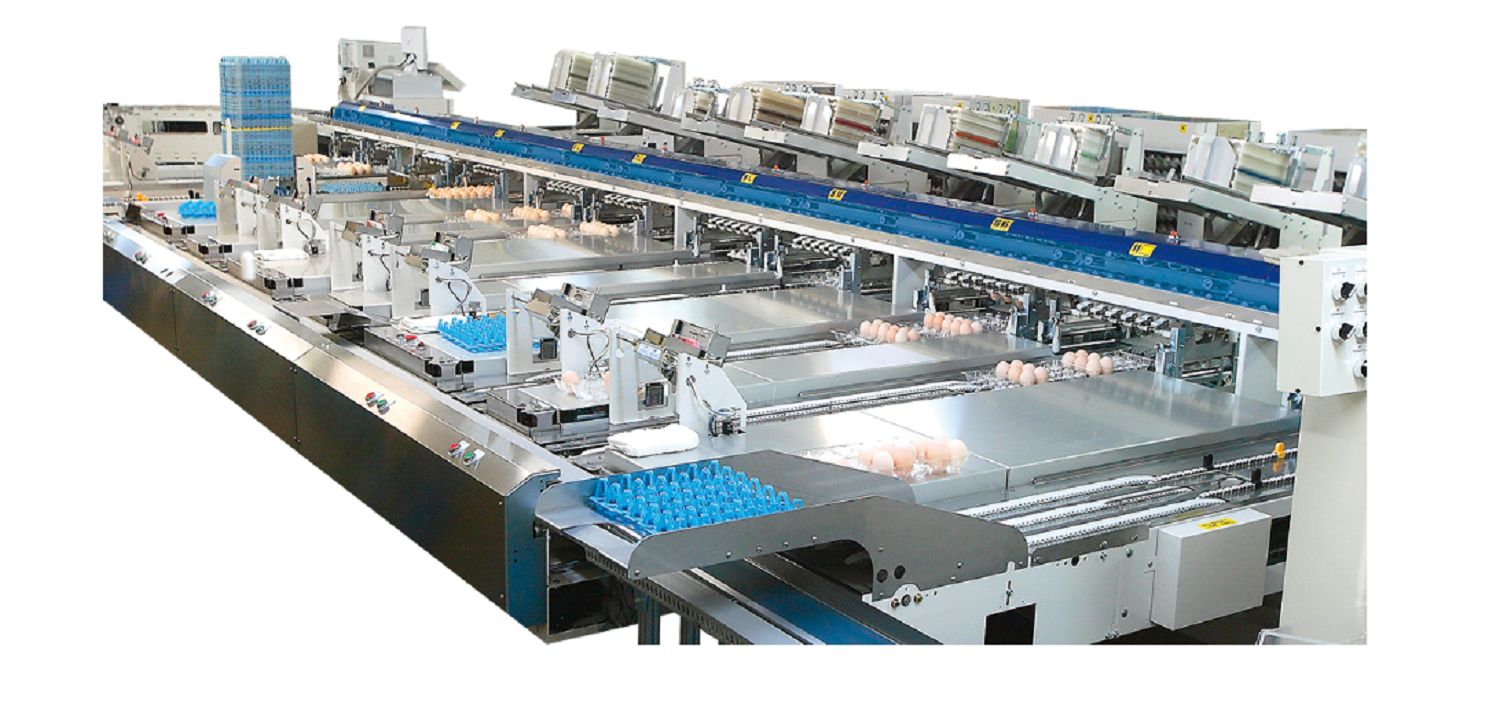

Product Name：JOB-300 Egg Washing, Grading, and Packaging Machine
Description:
JOB-300 is a versatile egg grader tailored for evolving poultry farm needs. The capacity is 30,000 eggs per hour and capable with good maintainability and robustness. Each system comes along with an intuitive CPU interface for seamless data management, a flexible multi-packing function to handle diverse orders, and high-accuracy load cells to ensure precise weighing; generating a synergistic contribution to customer's profit. A variety of layout options and an easy-to-operate design are available for the JOB-300.
Specifications
|
Type |
JOB-300 |
|
Processing speed |
30,000eggs/h |
|
Electric power |
3-Phase AC200V 24.5kW / Single-Phase AC100V 3.5kW |
|
Hot water supply |
23L/min(55~60°C) |
|
Air compressor |
80NL/min(0.6~0.9Mpa) |

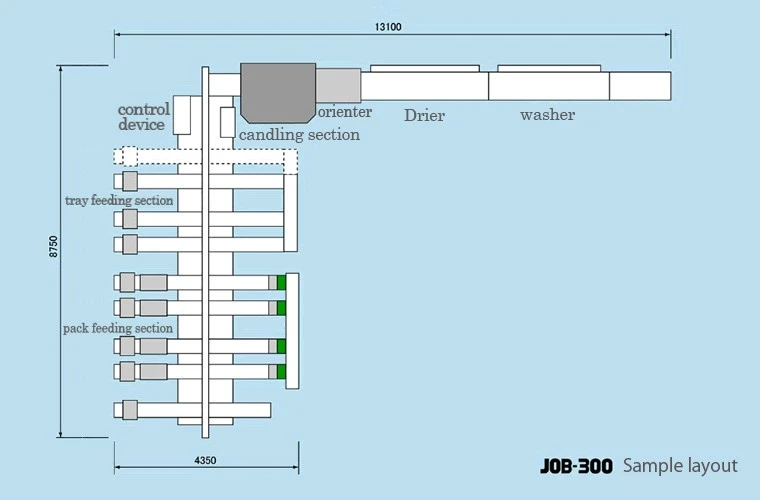

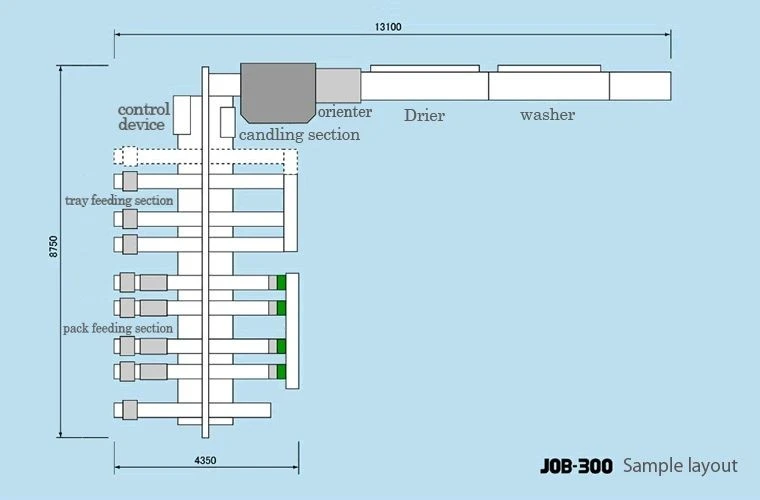

Sample Layout
Feature
(1)Refined Reliability and Gentle Egg Handling:
JOB achieves reliable, accurate, gentle and speedy operation. JOB was designed with CPU control system which was very first full automatic egg grading machine in the world. The machine has been continuing the improvement. JOB is the most standardized full automatic egg grader in Japan.
(2)"Simple" is "Best":
With the simple base design, the control system has greatly improved by a new CPU application. The multi-packing function can handle a variety of packaging operations. Also, the machine height is low which enables the operators to communicate each other easily.
Advantages
(1)High operability
The main CPU comes with easy-to-operate interface. And its operation speed and the capability have been improved better than ever before. A new feature coming along with the latest version of CPU enables operator to have access to processing data in past operation, and print it out by build-in laser printer.
(2)Flexibly respond to various kind of packages
The graded eggs are allocated to preset packinglanes and packed into various kind of packages. The combination use of different types of dispenser and multi-packing feature enables operator to choose wide array of packaging style for customer's needs.
(3)Respond to customer needs
This feature work behind while the grading system is running in operation, and the special brush made by antibacterial material maintains the cleanliness of carrier cup for incoming eggs.
(4)High accuracy and reliability
The weighing section built with durable load cell units has an automatic correction feature to avoid negative effects from machine vibrations or incidental particles, and it yields a result of plus or minus 1% or less weight difference for each and every incoming eggs.
Application Scenarios
(1). Medium to Large Scale Intensive Layer Farms
For farms producing approximately 300,000 eggs per day, the JOB-300 in single-lane mode (30,000 eggs/hour) perfectly matches the harvesting pace. Its low-height design facilitates operator supervision, and the fully automated process minimizes manual intervention, converting collected eggs directly into marketable packaged goods.
(2). Regional Egg Processing & Distribution Centers
At a capacity of 30,000 eggs/hour, the machine flexibly handles diverse orders. Thanks to its unique Multi-packing function, a single machine can simultaneously manage various packaging specifications such as trays, cartons, and bulk packing, catering to the diverse supply needs of regional supermarkets and retailers.
(3). Premium Brand & Export Processing
For businesses focusing on premium or export markets, precision is critical. The JOB-300 is equipped with high-durability load cells (accuracy ±1%) and antibacterial brushes, ensuring every egg remains hygienic and compliant even at a speed of 30,000 eggs/hour.
Packaging & Shipping
To ensure the safe and intact arrival of the JOB-300 (30,000 eggs/hr) full-automatic precision grading equipment, we utilize modular knock-down packaging with industrial-grade non-fumigation plywood cases, fully compliant with international export standards.
①The machine is disassembled into independent units (grading, packing, etc.) to facilitate efficient container loading and prevent structural distortion during transit.
②Waterproof plywood cases are utilized; the structure relies on its own robust frame strength to withstand transit shocks without the need for external bracing.
③Sensitive components (e.g., load cells, main CPU, HMI) are vacuum-sealed in anti-static bags, while edges and fragile parts are wrapped with high-density shock-absorbing foam for enhanced protection.
④The optimized container loading plan typically accommodates the entire production line and spare parts into 1-2 x 40'HQ containers.
Delivery Process:
Pre-shipment Inspection:
Packing lists, case photographs, and customs declaration details are provided 7 days prior to shipment for your confirmation.
Booking & Loading:
Arrange booking, export customs declaration, and container loading according to the agreed Incoterms (such as FOB or CIF).
Document Handover:
Provide a full set of shipping documents required for customs clearance (Bill of Lading, Commercial Invoice, Packing List, Certificate of Origin, etc.) promptly after sailing.
Arrival & Pickup
Assist the Buyer or agent with document exchange, import customs clearance, and final cargo pickup upon arrival at the destination port.
FAQ
Q1: What is the capacity of the JOB-300? Can it meet my production volume?
A: For standard single-lane configuration, the JOB-300 handles 30,000 eggs per hour. It is the optimal choice for farms producing approximately 200,000 to 250,000 eggs per day.
Q2: Can it support different packaging styles (trays, cartons, etc.)?
A: Yes. Thanks to the "Multi-packing function," the machine allocates eggs to preset packing lanes. By combining different types of dispensers, it enables operators to choose a wide array of packaging styles to meet specific customer needs.
Q3: Is the control interface complicated? Can the data be traced?
A: The main CPU comes with an easy-to-operate interface. The latest version allows operators to access historical processing data, facilitating quality control and audits.
Q4: How long does installation and commissioning take?
A: Thanks to the modular design, on-site installation typically takes 5-7 working days (depending on configuration). We provide remote guidance or dispatch engineers for on-site support.
