Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of complete automatic h frame quail cage in China. If you're going to buy durable complete automatic h frame quail cage made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.

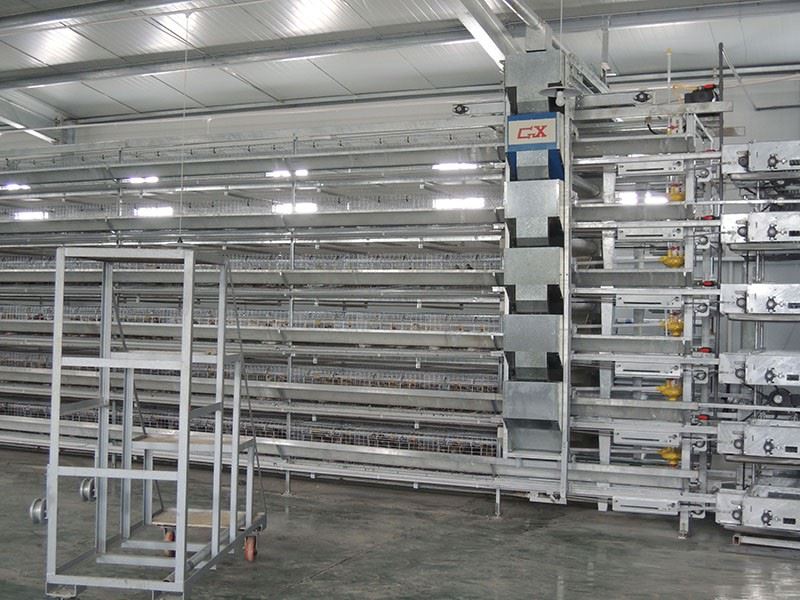

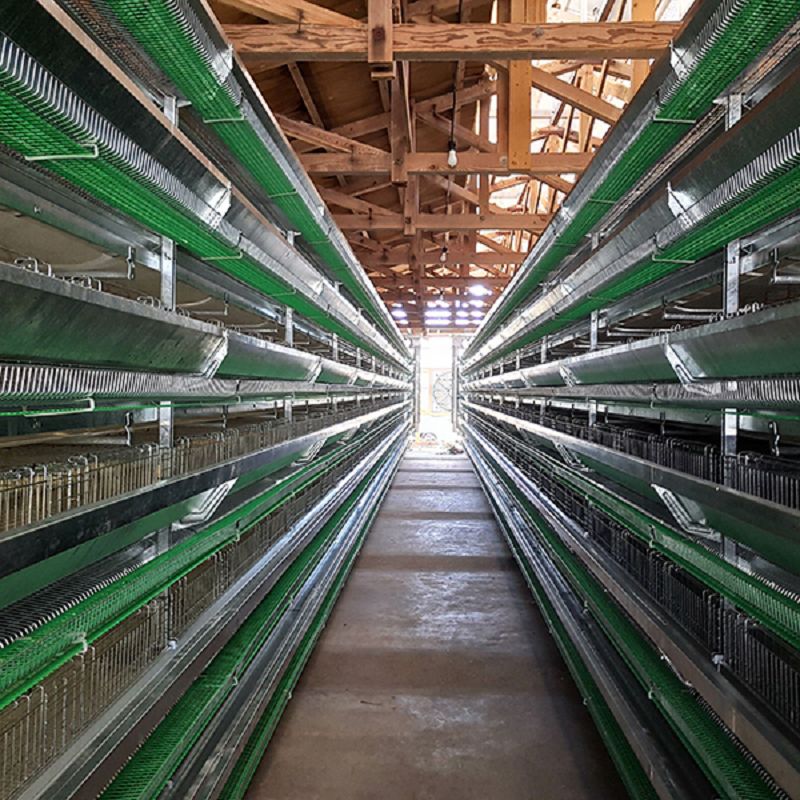

Product Name：Six-layer Stacked Traveling Feeding Automatic Breeding Equipment for Laying Quails
Basic Product Parameters：
|
Quail Cage Dimensions |
unit(mm) |
|
Length |
600×3=1800 |
|
Depth |
500 |
|
Height |
200 |
|
Area per bird |
60cm2/bird |
|
Bird No.per cage |
50 birds |
Feature
Simple structural installation and operation, effectively saving labor costs.
01
The cage body is designed according to the body shape and living habits of quails, which helps improve quail health and quality, lower the mortality and elimination rate, and keep the egg breakage rate below 0.5%.
02
Automatically controlled by the control system with low failure rate, requiring fewer maintenance personnel and reducing maintenance costs.
03
Low energy consumption operation, saving more than 20% of electricity.
04
Convenient for epidemic prevention and management, effectively improving the prevention and control capacity of avian diseases such as avian influenza, enhancing breeding quality and bringing high benefits to farmers.
05
Advantage
(1) Bracket Structure
The bracket structure consists of two vertical beams and multiple horizontal beams to form a stress frame. The bottom is equipped with adjustable support feet, and multiple trough hooks are arranged on the side.Bosses are punched on the horizontal beams to fix the quail cage structure; the distance between support feet and the bracket is adjustable within the range of 0-120mm. The trough hooks are fixedly installed on the vertical beams.
(2) Bracket Frame Structure
The bracket frame connects and fixes two bracket structures to form a basic stress frame, including left side plate, right side plate, hanging plate, upper horizontal beam and lower horizontal beam.The left and right side plates are fixedly connected with the bracket structure. The hanging plate cooperates with the upper and lower horizontal beams to form a stress frame. The annular manure belt is supported between the upper and lower horizontal beams with a reserved gap.

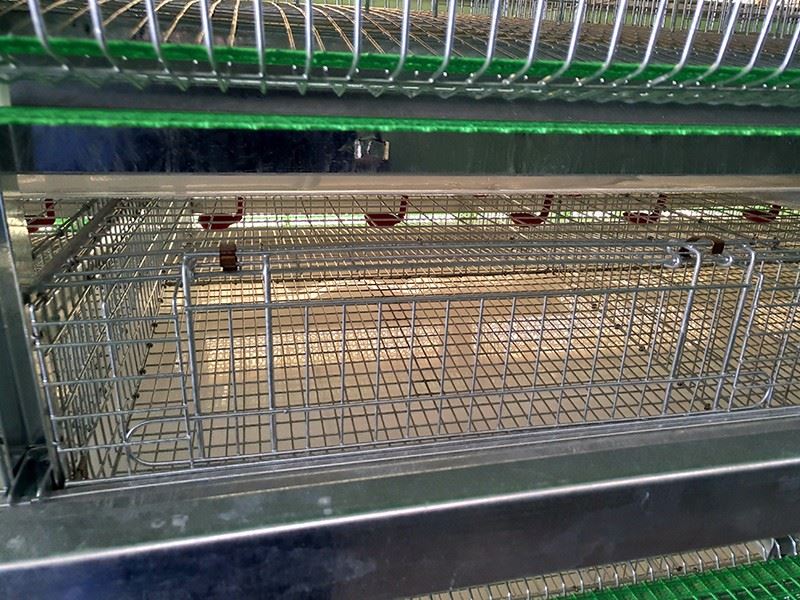

(3) Quail Cage Structure
The quail cage assembly is integrally framed and fixed by front mesh, door cover, bottom mesh, top mesh, partition mesh and rear mesh, and is also equipped with egg protection plates.
The front mesh is provided with a door opening of 440mm×127mm, which is covered by the door cover. The door cover can be designed in either a push-pull rotary opening style or a double-cover horizontal sliding opening style.
The cage bottom mesh is made of high-strength, high-elasticity premium material to ensure comfortable movement of quails. It features a mesh gap of 15 mm, an egg pocket length of 188 mm, and an egg sliding angle of 4.7°, keeping the egg breakage rate below 0.5%.
The top mesh adopts a grid size of 30mm×34.42mm. The partition meshes include end partition meshes and middle partition meshes, and the rear mesh has a grid size of 20.55mm.
The egg protection plates are grooved and installed in sections on the quail cage structure. They separate quails from eggs to prevent egg pecking, and meanwhile guide manure and other falling debris onto the circular manure cleaning belt.

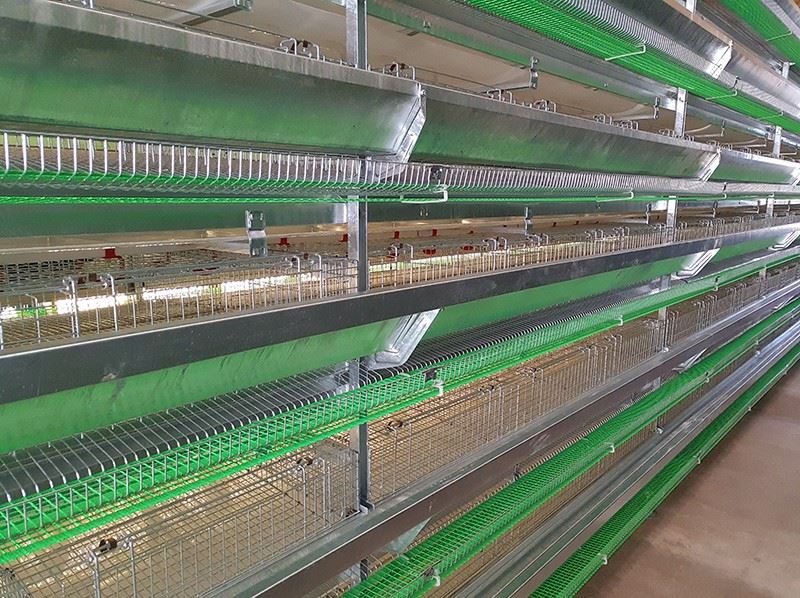

(4) Feeding Trough Structure
The feeding trough is horizontally mounted on the trough hooks of two bracket structures, clamped in the trough fasteners and closely attached to the quail cage to maintain a reasonable feeding distance for quails.The trough adopts a flat-bottom and inclined-side design. It can be reserved with 20mm notches or stamped with 20mm convex openings, suitable for quail cages at different positions.
Frequently Asked Questions
Q1: What are the highlights of the installation and operation of this quail breeding equipment? Can it save costs?
A: The equipment features simple installation and operation, greatly shortening installation working hours and saving labor costs. Meanwhile, the whole equipment is automatically operated by an intelligent control system with low failure rate. It does not require full-time on-site maintenance by multiple staff, further reducing subsequent maintenance costs.
Q2: What are the advantages of the equipment in terms of energy consumption and epidemic prevention?
A: The equipment runs with low energy consumption, saving more than 20% electricity compared with ordinary breeding equipment. The overall layout facilitates daily disinfection and epidemic prevention management, strengthens the prevention and control of avian influenza and other poultry diseases, improves overall breeding quality and increases income for farmers.
Q3: What are the parameter designs of the quail cage bottom net? What are its advantages?
A: The bottom net is made of high-strength and high-elasticity premium materials, with a grid gap of 15mm, egg pocket length of 188mm and egg rolling angle of 4.7°. The design conforms to quail walking habits with high comfort, and precisely controls the egg breakage rate below 0.5%.
Q4: What is the function of the egg protection plate? What are the characteristics of its installation method?
A: The egg protection plate is installed in sections on the cage with reserved notches. It can isolate quails from eggs to prevent egg pecking damage, and guide feces and falling sundries to the annular manure belt, realizing both egg protection and dirt discharge.
Application Case
- A large-scale commercial quail breeding base introduced this six-layer stacked automatic quail breeding equipment.The equipment is easy to install and layout, completing the overall construction quickly and greatly reducing labor input and labor costs.The cage is professionally designed according to quails' body shape and living habits with scientific parameters of the bottom net and egg rolling angle. The egg breakage rate is controlled within 0.5%, the quail mortality and elimination rate is significantly reduced, and the overall breeding quality is improved.
- Equipped with an intelligent automatic control system, the equipment has a low failure rate and requires no frequent manual maintenance, cutting down long-term maintenance expenses. It operates with low energy consumption, saving over 20% of daily electricity consumption.The standardized cage structure facilitates comprehensive disinfection and epidemic prevention, effectively restraining the spread of avian influenza and other poultry diseases. The matched feeding trough, support frame and manure cleaning structure ensure reasonable feeding space and smooth manure removal. The egg protection plate effectively avoids egg pecking, and feces are automatically guided to the manure belt to keep the breeding environment clean and hygienic.The equipment helps the breeding base realize large-scale breeding with high efficiency, low cost and high economic benefits.
