Guangzhou Guangxing Poultry Equipment Group Co., Ltd. one of the leading manufacturers and suppliers of broiler cage control system in China. If you're going to buy durable broiler cage control system made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
This intelligent environmental control system for cage-reared broilers is custom-developed for high-density industrial rearing of stacked/stepped cage-reared broilers aged 1–45 days, adopting the real-shot three-cabinet integrated control cabinet with industrial-grade PLC, 7-inch touch screen, multiple manual control buttons and monitoring meters. It links water-heated underfloor heating systems, cage-house dedicated ventilation fans, spray cooling & dust suppression, water curtains, cage-mounted lighting, cage-rearing feeding and manure removal equipment, realizing automatic precise regulation of temperature-humidity, ammonia, CO₂, negative pressure, lighting and timing for three growth stages: chicks (1–10 days), medium broilers (11–25 days) and finishing broilers (26–45 days). Cage-reared broilers have extremely high density and vigorous metabolism; bottom-cage broilers are prone to cold-induced huddling in early stage, while late-stage high temperature-humidity easily triggers heat stress, ascites, respiratory diseases and sudden death. Traditional manual control easily causes large temperature differences between cage tiers, ammonia accumulation and uneven growth. Collecting real-time inter-cage environmental data, the system prioritizes linkage with underfloor heating for gentle bottom-up heat dissipation to maintain constant temperature for bottom cages. It automatically switches between heat preservation, ventilation and cooling modes, strictly matching three-stage temperature curves. It supports zoned independent control for long cage houses, 4G remote monitoring and manual emergency forced operation. It stably lowers feed-to-gain ratio and mortality, improves slaughter uniformity, and delivers a full-cycle low-stress high-efficiency intelligent breeding control solution for commercial cage-reared broiler farms.
Product specifications
|
Parameter Item |
Detailed Specification |
|
Applicable Cage |
Stacked/stepped broiler cages, compatible with all Guangxing cage series |
|
Cabinet Structure |

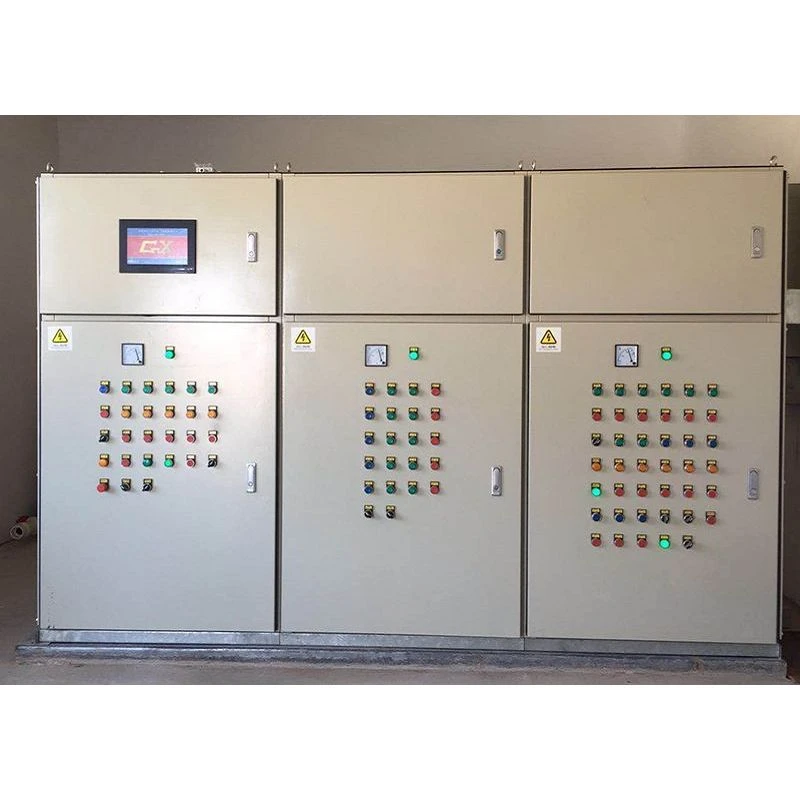

Three-cabinet integrated control cabinet (real-shot matched), touch screen + PLC main unit + multiple manual buttons + monitoring meters |
|
Core Hardware |
Industrial-grade anti-interference PLC, 7-inch high-definition touch screen, multi-language support |
|
Monitored Items |
Temperature, humidity, NH₃, CO₂, negative pressure, light intensity, equipment status |
|
Controlled Devices |
Water-heated underfloor heating, ventilation fans, spray dust suppression system, lighting, feeder, manure remover |
|
Humidity Control |
40–80% RH, optimal brooding humidity 55–65% RH |
|
Ammonia Threshold |
0–50ppm adjustable, alarm threshold 15ppm |
|
Control Mode |
Three-stage auto-mode, constant temp-humidity mode, manual emergency mode, zoned control, APP remote control |
|
Power Supply |
AC 220V/380V; 110V/415V customizable, ±15% wide voltage |
Product features and advantages
Features
1.Exclusive three‑stage cage‑reared broiler temperature program automatically switches heat for 1–45 days, precisely matching temperature difference needs of multi-tier cage rearing.

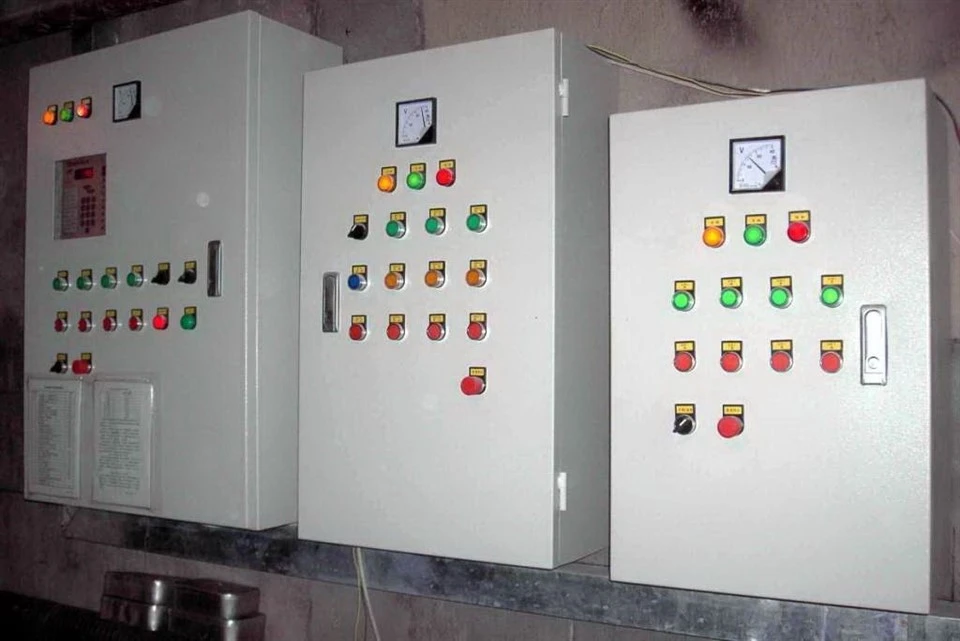

2.Real-shot three-cabinet structure with dual modes: touch-screen automatic control and manual button operation for emergency forced start‑stop.
One-click switch between manual and automatic modes for emergency forced operation of cage-rearing equipment in extreme conditions.
3.Links with cage-rearing feeding and manure removal systems for integrated automatic breeding management.
4..Adopting advanced automatic controlling system to achieve feeding egg collecting,manure removal,ventilation and lighting,complete set of equipment to be automatic.
5.Double control mode:automatic or manual.
6.Cellphone alarm system
7.Farm management system(applicable in PC and cellphone by APP.)

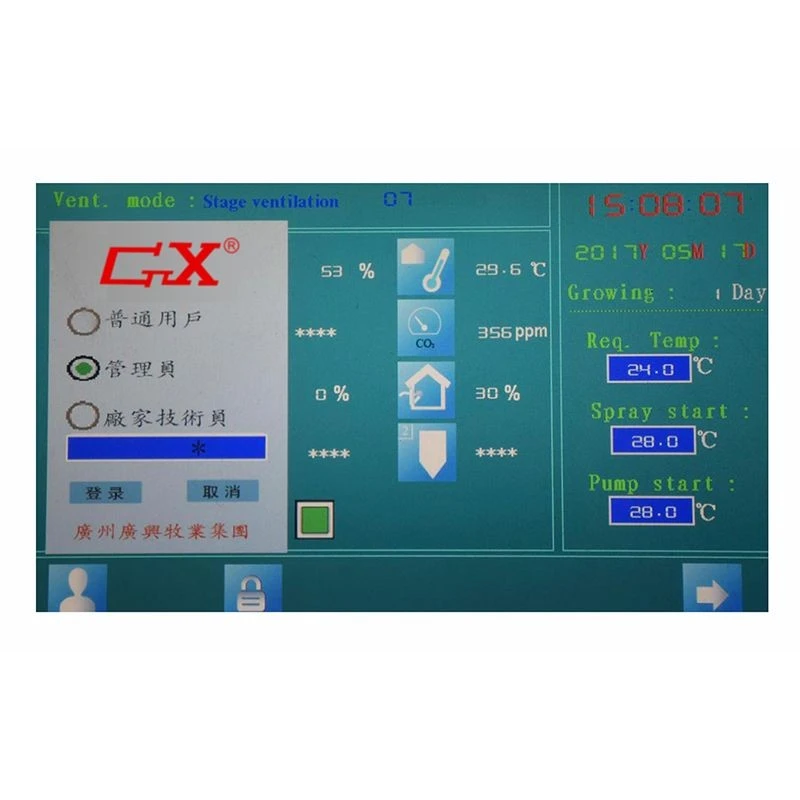

Auto Poultry House Controller
By setting temperature,it can automatically controls fans,air inlets,cooling baffle,cooling pumps;and automatically detects humidity and harmful gases,such as ammonia etc.

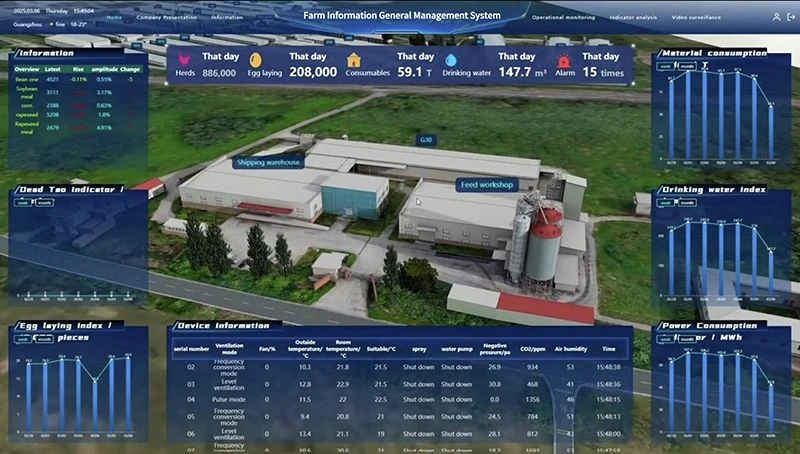

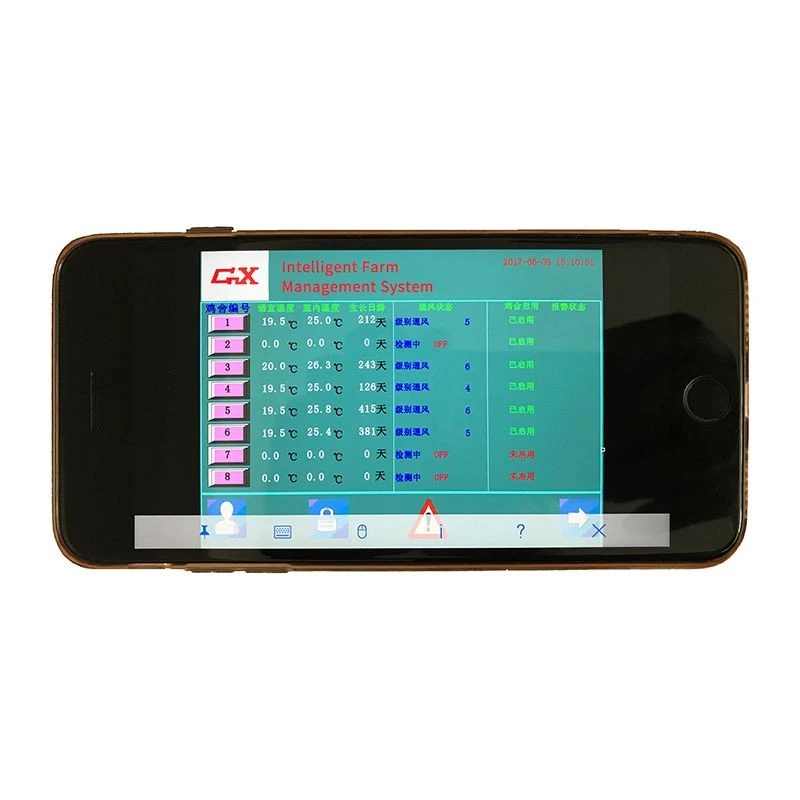

Intelligent Farm Management System
By Intelligent farm management system,manager can check technical parameters of the whole poultry house in their office,and it can realize remote control management by PC and cellphone.
Advantages
1.[Hardware-level Manual Emergency for Zero Major Breeding Accidents] Independent forced switching via three-cabinet physical buttons enables direct equipment control under system failure, power outage and extreme weather,eliminating risk of mass mortality in overseas cage rearing.
2.[Full-process Intelligent Coordination for Halved Labor Cost] Integrated control of environment, feeding and manure removal reduces 2-3 dedicated environmental administrators, adapting to overseas markets with high labor costs.
3.[One-stop OEM Cage-rearing Matching with Closed-loop After-sales Service] Integrated design of cage frames, underfloor heating and control systems with pre-adapted hardware linkage logic, providing one-stop construction, debugging and after-sales service for overseas projects.
Application scenarios
Export-oriented layer farms meet international standards with traceable data for global orders.
Packaging and transportation
Packaging Specificatons
①The machine is disassembled into independent units (washing, grading, packing) for easy container loading.
②Cases are made of waterproof plywood, the structure relies on its own robust frame strength to withstand tansit shocks.
③Precision parts (load cells, PLC,H) are vacuum-sealed in anti-static bags.Edges and fragile parts are wrapped with high-density shock-absorbing foam.
④Optimized loading plan typically fits the entire production line and spare parts into 3x40'HO containers.
FAQ
Q：What is the biggest differentiated advantage of this system compared with ordinary cage-rearing control systems?
A：It adopts dual cores of underfloor water-heated heating and multi-tier vertical temperature difference algorithm, specially solving four major industry pain points of cage-reared broilers: bottom-tier cold stress, upper-tier overheating, uneven slaughter and ascites induced sudden death. Ordinary systems only realize planar temperature control without multi-tier cage optimization.
Q：How does the system prevent heat stress in late finishing stage?
A：Triple linkage of water curtain + high-pressure spray + negative-pressure ventilation is automatically activated after 26 days to force cage temperature reduction with precise air intake control against cold-air blowing, adopting exclusive logic customized for broiler sudden death and ascites prevention.
After-sales service
1. Provide bilingual operation‑maintenance manuals and video tutorials specifying daily checks, cleaning cycles and troubleshooting guides.
2. Provide online/on‑site training for operation, programming and linkage debugging for client maintenance personnel before project delivery.
3.Establish one-on-one exclusive after-sales files for cage-reared broilers to track full-process system operation and proactively warn of potential faults, ensuring full-cycle stable production of million-bird cage-rearing projects.
